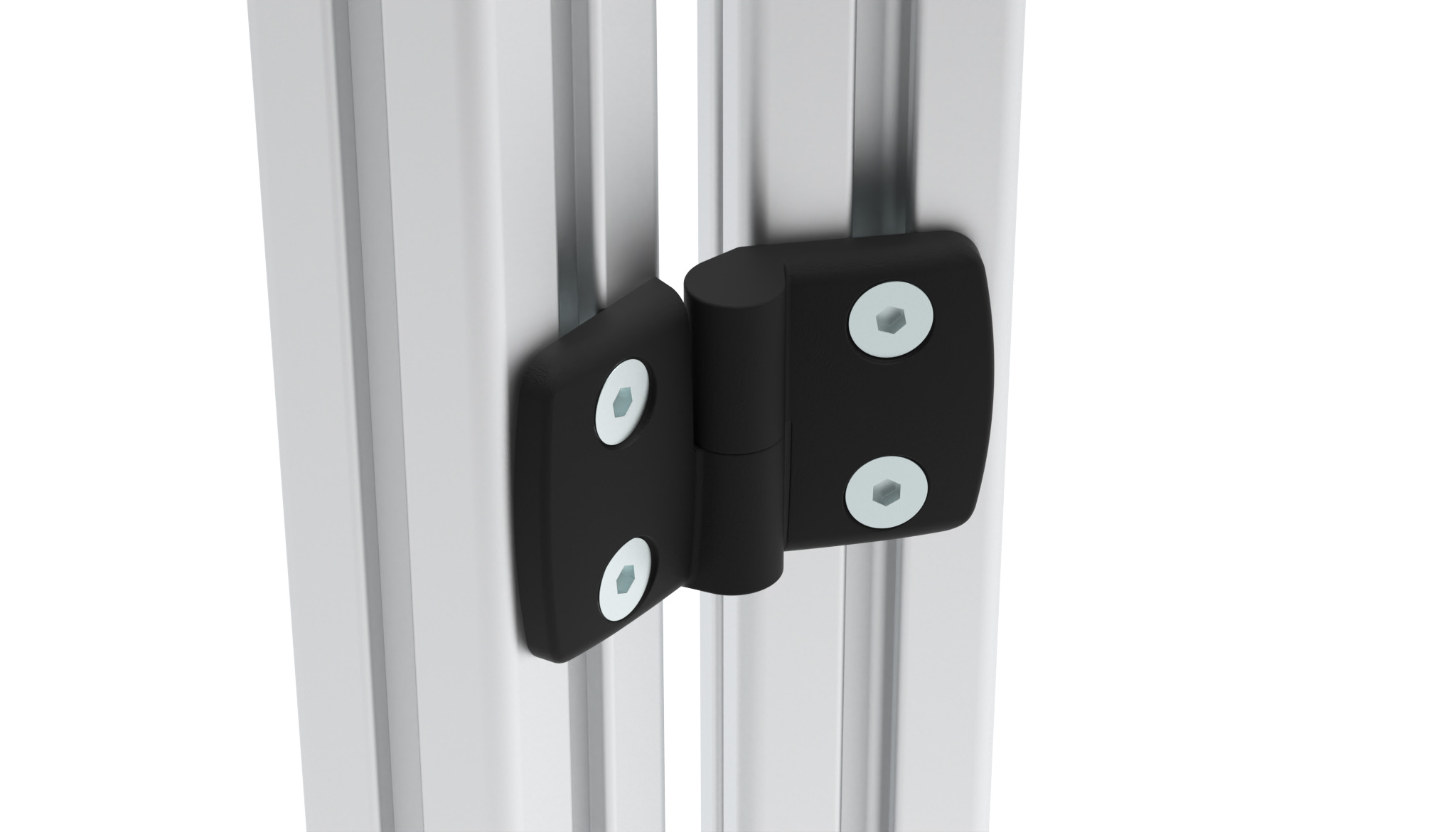

Plastic Combi Hinge 40, Detachable, Black
Número de producto:
095K4040R00
Información sobre el producto "Plastic Combi Hinge 40, Detachable, Black"
Color:
Negro
Países de Entrega:
En todo el mundo
Description:
To hinge panels or aluminum profiles
Material:
Wings: Plastic PA, glass fiber reinforced;
Bolt: Stainless steel
Specials:
ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request
Zolltarifnummer:
39263000900
Negro
Países de Entrega:
En todo el mundo
Description:
To hinge panels or aluminum profiles
Material:
Wings: Plastic PA, glass fiber reinforced;
Bolt: Stainless steel
Specials:
ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request
Zolltarifnummer:
39263000900
(ECLASS 6.0): | 23219090 |
---|---|
(ECLASS 7.0): | 23219090 |
(ECLASS 8.0): | 23219090 |
(ECLASS 9.0): | 23219090 |
(ECLASS 10.0): | 23219090 |
(ECLASS 11.0): | 23219090 |
(ECLASS 12.0): | 23219090 |
(ECLASS 13.0): | 23219090 |
Cantidad por Paquete: | 10 piezas |
Fastening: | Por delante, con tornillos avellanados M6 |
Model: | Desmontable |
Peso (g): | 42.0 |
Variantes

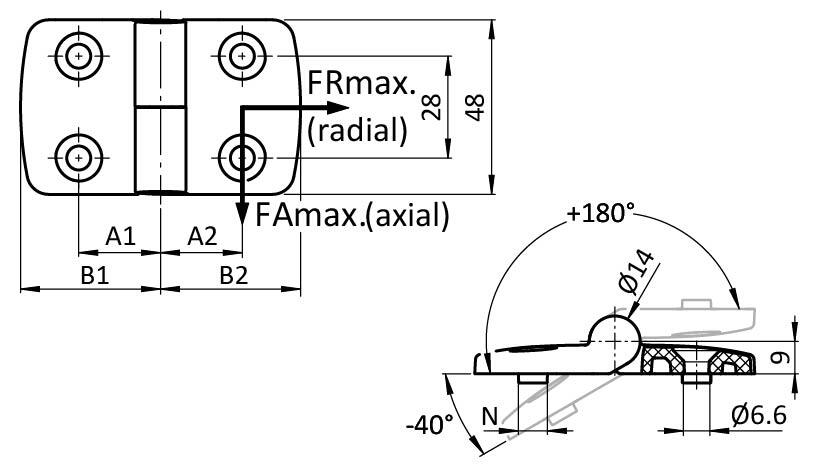

ID de producto | A1 (mm) | Ranura N (mm) | B1 (mm) | B2 (mm) | FAmax (N) | FRmax (N) | A2 (mm) | Version | Combinación |
---|---|---|---|---|---|---|---|---|---|
095K4025L00 | 22.5 | 38.5 | 26.0 | 425 | 650 | 15.0 | L: Izquierda | 40 / 25 | |
095K4025R00 | 15.0 | 26.0 | 38.5 | 425 | 650 | 22.5 | R: Derecha | 40 / 25 | |
095K4030L00 | 22.5 | 38.5 | 29.5 | 750 | 17.5 | L: Izquierda | 40 / 30 | ||
095K4030R00 | 17.5 | 29.5 | 38.5 | 750 | 22.5 | R: Derecha | 40 / 30 | ||
095K4035L00 | 22.5 | 38.5 | 36.0 | 400 | 750 | 20.0 | L: Izquierda | 40 / 35 | |
095K4035R00 | 20.0 | 36.0 | 38.5 | 400 | 750 | 22.5 | R: Derecha | 40 / 35 | |
095K4040L00 | 22.5 | 38.5 | 38.5 | 400 | 22.5 | L: Izquierda | 40 / 40 | ||
095K4040L08 | 22.5 | 8 | 38.5 | 38.5 | 400 | 22.5 | L: Izquierda | 40 / 40 | |
095K4040L10 | 22.5 | 10 | 38.5 | 38.5 | 400 | 22.5 | L: Izquierda | 40 / 40 | |
095K4040R00 | 22.5 | 38.5 | 38.5 | 350 | 22.5 | R: Derecha | 40 / 40 | ||
095K4040R08 | 22.5 | 8 | 38.5 | 38.5 | 350 | 22.5 | R: Derecha | 40 / 40 | |
095K4040R10 | 22.5 | 10 | 38.5 | 38.5 | 350 | 22.5 | R: Derecha | 40 / 40 | |
095K4060L00 | 22.5 | 38.5 | 57.5 | 32.5 | L: Izquierda | 40 / 60 | |||
095K4060R00 | 32.5 | 57.5 | 38.5 | 22.5 | R: Derecha | 40 / 60 |
Descargas CAD
Retratos de productos

Combi Hinges
FATH Combi hinges, made from plastics, stainless steel, and die-cast aluminum, form a visually homogeneous family within which you can freely combine all the different hinge leaves 25, 30, 35, 40, 45, 50 and 60, to your application.
