Automatic Connectors

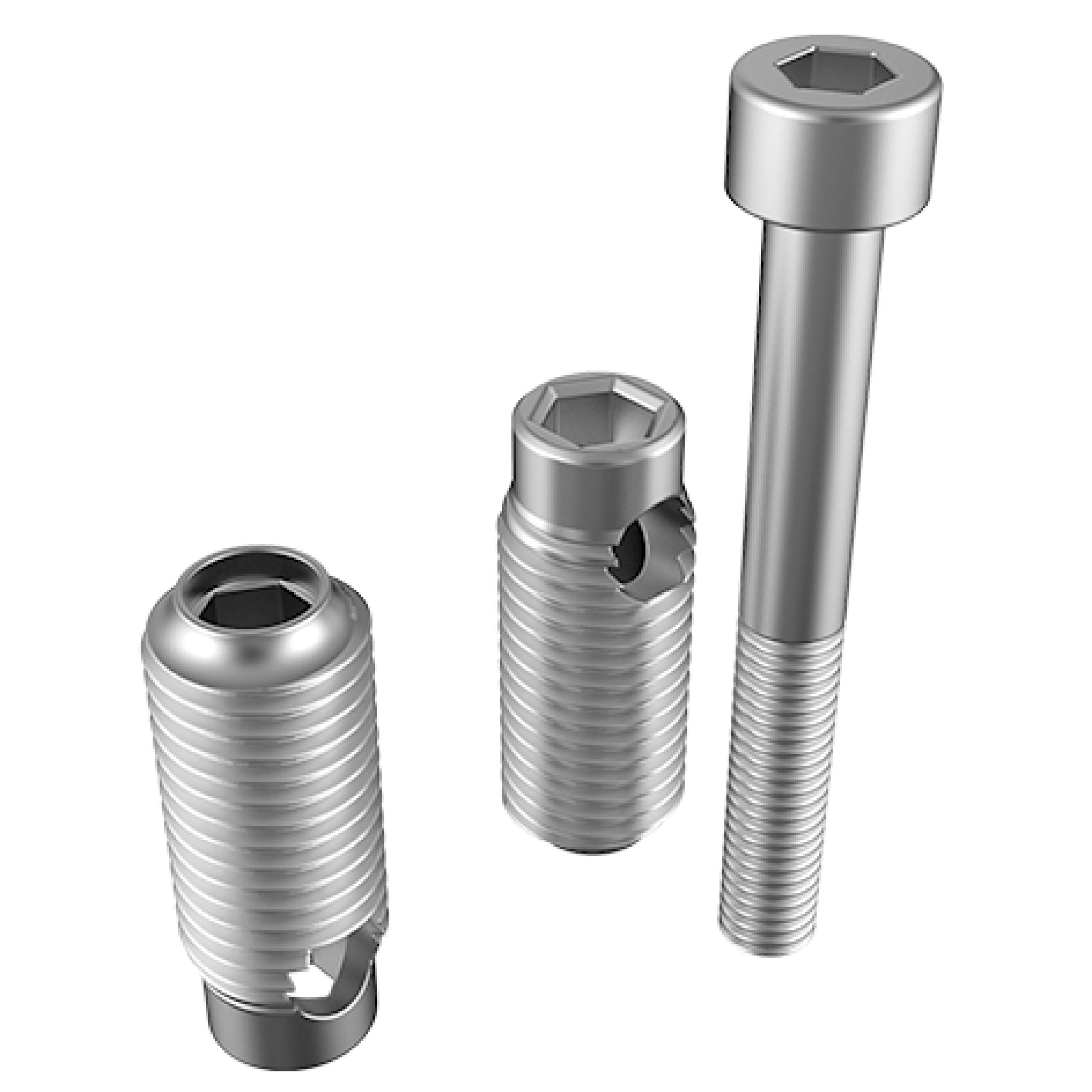

Automatic Butt Connector Stainless Steel

Ancho del perfil: 30 D (mm): 10.0 ESD: Descarga electrostática ESD L (mm): 27.0 Profile: I Ranura N (mm): 6 SW 1: 4 SW 2: 5 Tornillo: M5 x 45 Version: With assembly set, incl. screw andthreaded cutting sleeve

Países de Entrega:En todo el mundoDescription:To face-to face connect two aluminum profiles fast, assembly without machining; self-cutting threadMaterial:Acero inoxidableSuperficie:LisoTip:*Compatible Cover Cap see 099GA081K

0,00 €

Automatic Butt Connector Steel

Ancho del perfil: 45 D (mm): 13.0 Dimensión modular (mm): 45L ESD: Descarga electrostática ESD L (mm): 35.0 Profile: B Ranura N (mm): 10 SW 1: 5 SW 2: 6 Tornillo: M6 x 60 Version: With assembly set, incl. screw andthreaded cutting sleeve

Países de Entrega:En todo el mundoDescription:To face-to face connect two aluminum profiles fast, assembly without machining; self-cutting threadMaterial:AceroSuperficie:GalvanizadoTip:*Compatible Cover Cap see 099GA081K

0,00 €

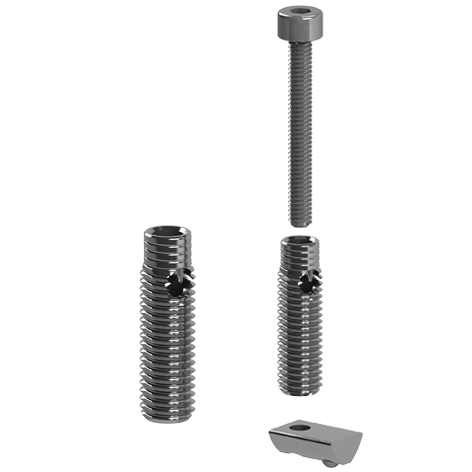

Automatic Connector Stainless Steel

Ancho del perfil: 20 D (mm): 7.0 L (mm): 24.0 Profile: I Ranura N (mm): 5 SW 1: 3 SW 2: 4 Tornillo: M4 x 30 Version: With assembly set, incl. screw and T-slot nut

Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles fast and solid, assembly without machining; self-cutting threadMaterial:Acero inoxidableSuperficie:LisoTip:*Compatible Cover Cap see 099GA081K

0,00 €

Automatic Connector Steel

Ancho del perfil: 45 D (mm): 14.4 L (mm): 35.0 Profile: - Ranura N (mm): 8 SW 1: 5 SW 2: - Tornillo: M6 x 45 Version: With assembly set, incl. screw and T-slot nut**

Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles fast and solid, assembly without machining; self-cutting threadMaterial:AceroSuperficie:GalvanizadoTip:*Compatible Cover Cap see 099GA081KTip 2:** Automatic connector with assembly set for profil B incl. hammer nut instead of T-slot nut

0,00 €

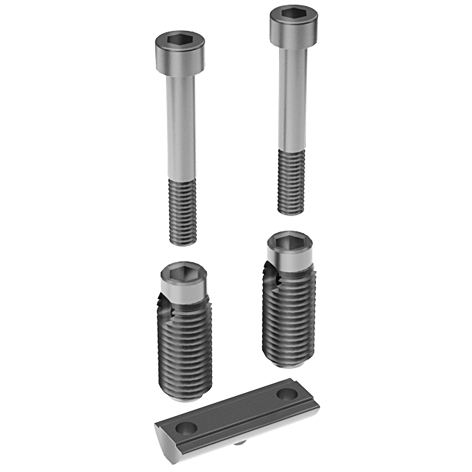

Automatic Double Connector I, Slot 8 (Set)

A (mm): 66.4 Ancho del perfil: 80 D (mm): 12.0 ESD: Descarga electrostática ESD L (mm): 31.0 Profile: I Ranura N (mm): 8 SW 1: 6 SW 2: 5 Tornillo: M6 x 40

0,00 €

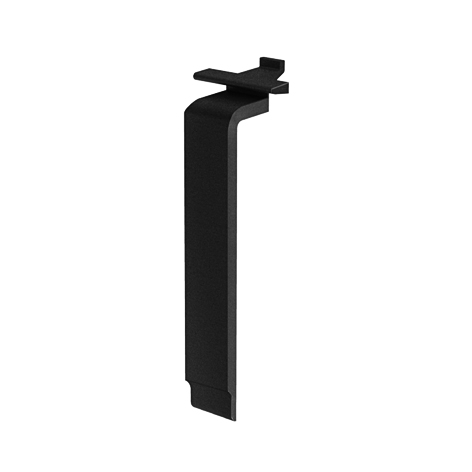

Cover Cap for Automatic Connector I, Slot 8

Profile: I

Color:NegroPaíses de Entrega:En todo el mundoDescription:To cover the 31 mm-sleeve Automatic Connector within a slot 8Material:Plástico PA, reforzado con fibra de vidrio

0,00 €

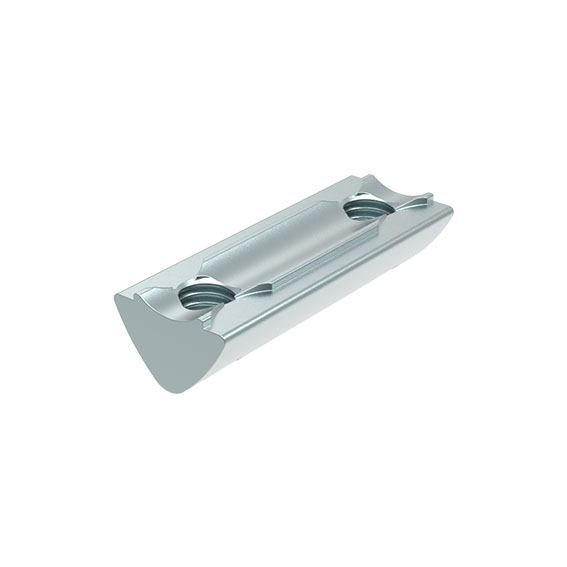

Roll-in Double T-slot Nut for Automatic Connector I, Slot 6

A (mm): 49.0 L (mm): 58.0 M: M5 Profile: I

Países de Entrega:En todo el mundoDescription:Roll-in double T-slot nutMaterial:Double T-slot nut: Steel Ball: Stainless steel Spring: Spring steelSpecials:Different lengths with multiple threads in different sizes available on requestSurface:Double T-slot nut: Zinc-plated Ball: Plain Spring: Plain

0,00 €

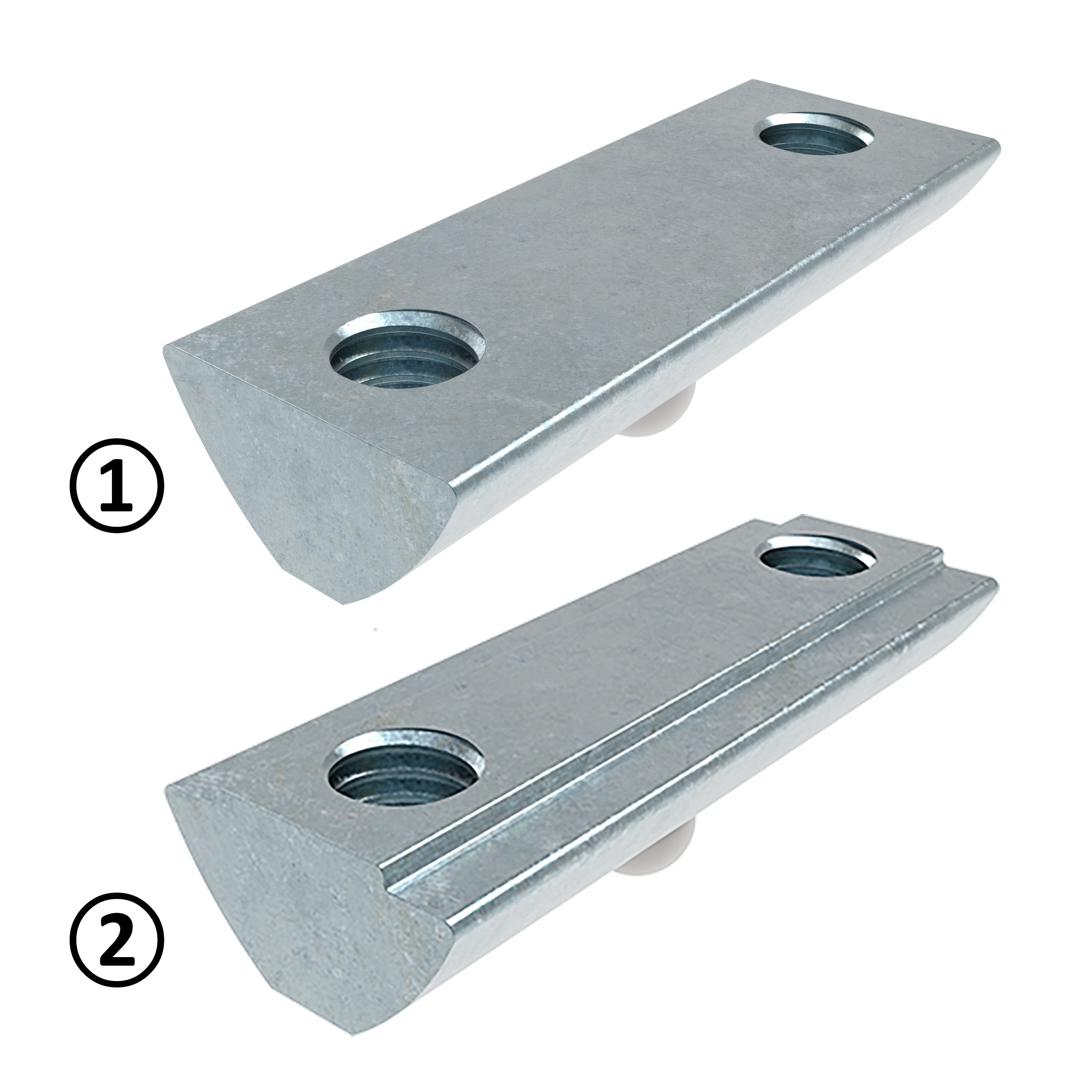

Roll-in Double T-slot Nut for Automatic Connector I, Slot 8

A (mm): 26.4 Fig.: ① L (mm): 36.0 M: M6 Profile: I

0,00 €
