Inner Connectors

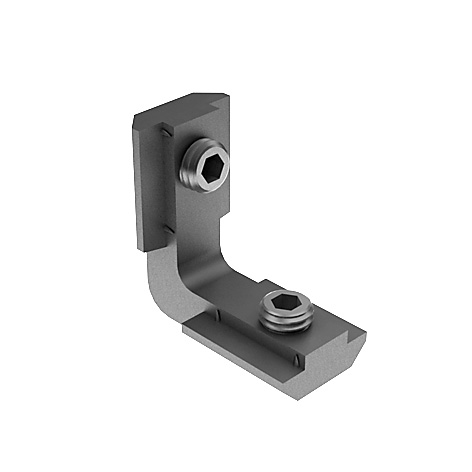

Inner Connector R
0,00 €*
A (mm):
15.8
|
B (mm):
7.8
|
H (mm):
6.0
|
L1 (mm):
21.6
|
L2 (mm):
30.0
|
Profile:
B
|
Ranura N (mm):
8
|
Tornillo de cabeza hueca hexagonal:
M6
|
Version:
Acero fundido ST
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles, assembly without machiningMaterial:Inner Connector ST version: Zinc-plated cast steel Inner Connector ZN version: Zinc-plated zinc die-cast Hexagon socket set screws: Zinc-plated steel

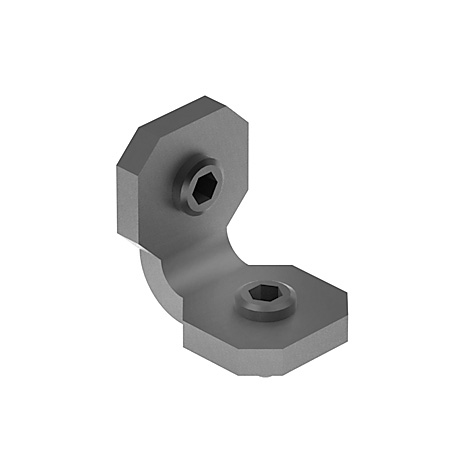

Inner Connector, Slot 6 (Set)
0,00 €*
Profile:
B
|
Ranura N (mm):
6
|
Tornillo de cabeza hueca hexagonal:
M4
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles; assembly without machining, can also be used as inner connector R slot 6Material:Acero inoxidableSet:1 inner connector 2 screws DIN 915 - M4 x 6Zolltarifnummer:73259990900

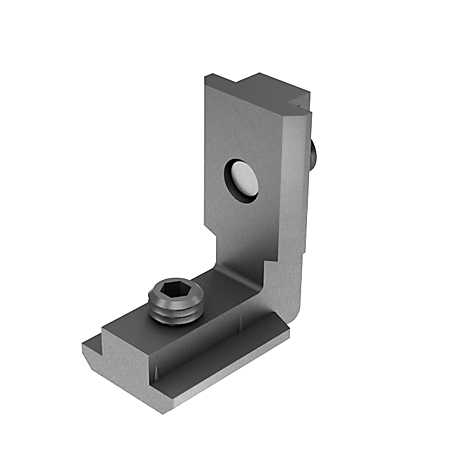

Inner Connector, Slot 8 + 10
0,00 €*
A (mm):
19.0
|
B (mm):
8.8
|
H (mm):
3.8
|
L1 (mm):
32.0
|
L2 (mm):
38.0
|
Profile:
B
|
Ranura N (mm):
10
|
Tornillo de cabeza hueca hexagonal:
M8
|
Version:
ZN zinc fundido a presión
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles, assembly without machiningMaterial:Inner Connector ST version: Zinc-plated cast steel Inner Connector ZN version: Zinc-plated zinc die-cast Hexagon socket set screws: Zinc-plated steel
