Connection Angles
Connection Angle AL 2 Hole, 1 Slot Version
0,00 €*
B (mm):
38.1 (1.5")
|
C (mm):
19.0 (0.75")
|
H (mm):
6.0
|
L (mm):
38.1 (1.5")
|
Version:
38.1 - 1.5"
|
ØD (mm):
9.0
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AluminioSuperficie:AnodizadoZolltarifnummer:76169990990
Connection Angle AL 4 Hole, 1 Slot Version
0,00 €*
A (mm):
40.0
|
B (mm):
36.0
|
C (mm):
20.0
|
H (mm):
6.0
|
L (mm):
80.0
|
Version:
40 / 80
|
ØD (mm):
9.0
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AluminioSuperficie:AnodizadoZolltarifnummer:76169990990
Connection Angle AL 4 Hole, 2 Slots Version
0,00 €*
A (mm):
40.0
|
B (mm):
76.0
|
C (mm):
20.0
|
H (mm):
6.0
|
L (mm):
40.0
|
Version:
80 / 40
|
ØD (mm):
9.0
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AluminioSuperficie:AnodizadoZolltarifnummer:76169990990
Connection Angle AL 8 Hole, 2 Slots Version
0,00 €*
A (mm):
30.0
|
B (mm):
57.0
|
C (mm):
15.0
|
H (mm):
5.0
|
L (mm):
60.0
|
Version:
60 / 60
|
ØD (mm):
7.0
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AluminioSuperficie:AnodizadoZolltarifnummer:76169990990
Floor Bracket AL 140, 1 Slot Version
0,00 €*
B (mm):
36.0
|
Cuadrícula:
40
|
ØD (mm):
9.0
|
ØD1 (mm):
13.5
|
ØD2 (mm):
28.0
Países de Entrega:En todo el mundoDescription:To securely fix aluminum profiles to the floorMaterial:AluminioSuperficie:AnodizadoZolltarifnummer:76169910990
Floor Bracket AL 140, 2 Slots Version
0,00 €*
A (mm):
30.0
|
B (mm):
57.0
|
Cuadrícula:
30
|
ØD (mm):
7.0
|
ØD1 (mm):
-
|
ØD2 (mm):
22.0
Países de Entrega:En todo el mundoDescription:To securely fix aluminum profiles to the floorMaterial:AluminioSuperficie:AnodizadoZolltarifnummer:76169910990

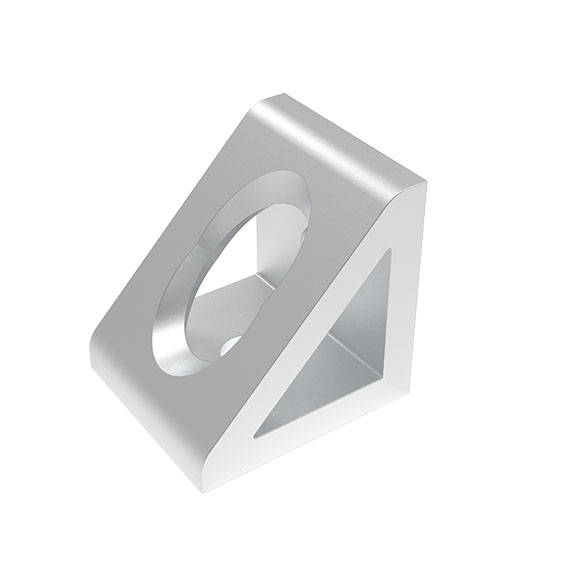

Gusseted Connection Angle AL 2 Hole, 1 Slot Version
0,00 €*
A (mm):
25.4 (1")
|
B (mm):
25.4 (1")
|
C (mm):
4.8 (0.19")
|
Cuadrícula:
25.4 (1")
|
D (mm):
11.2 (0.44")
|
E (mm):
12.7 (0.50")
|
F (mm):
22.4 (0.88")
|
G (mm):
12.7 (0.50")
|
H (mm):
6.9 (0.27")
Color:Color aluminioPaíses de Entrega:NorteaméricaDescription:To connect two aluminum profiles at right anglesMaterial:AluminioSuperficie:Anodizado
Gusseted Connection Angle AL 4 Hole, 1 Slot Version
0,00 €*
A (mm):
90.0
|
B (mm):
90.0
|
C (mm):
6.0
|
Color:
Negro
|
Cuadrícula:
45
|
D (mm):
20.5
|
E (mm):
20.0
|
F (mm):
41.0
|
G (mm):
22.5
|
H (mm):
45.0
|
J (mm):
9.0
Color:Color aluminio, negroPaíses de Entrega:NorteaméricaDescription:To connect two aluminum profiles at right anglesMaterial:AluminioSuperficie:Anodizado
