Sliding Door Guides
Filtro
–

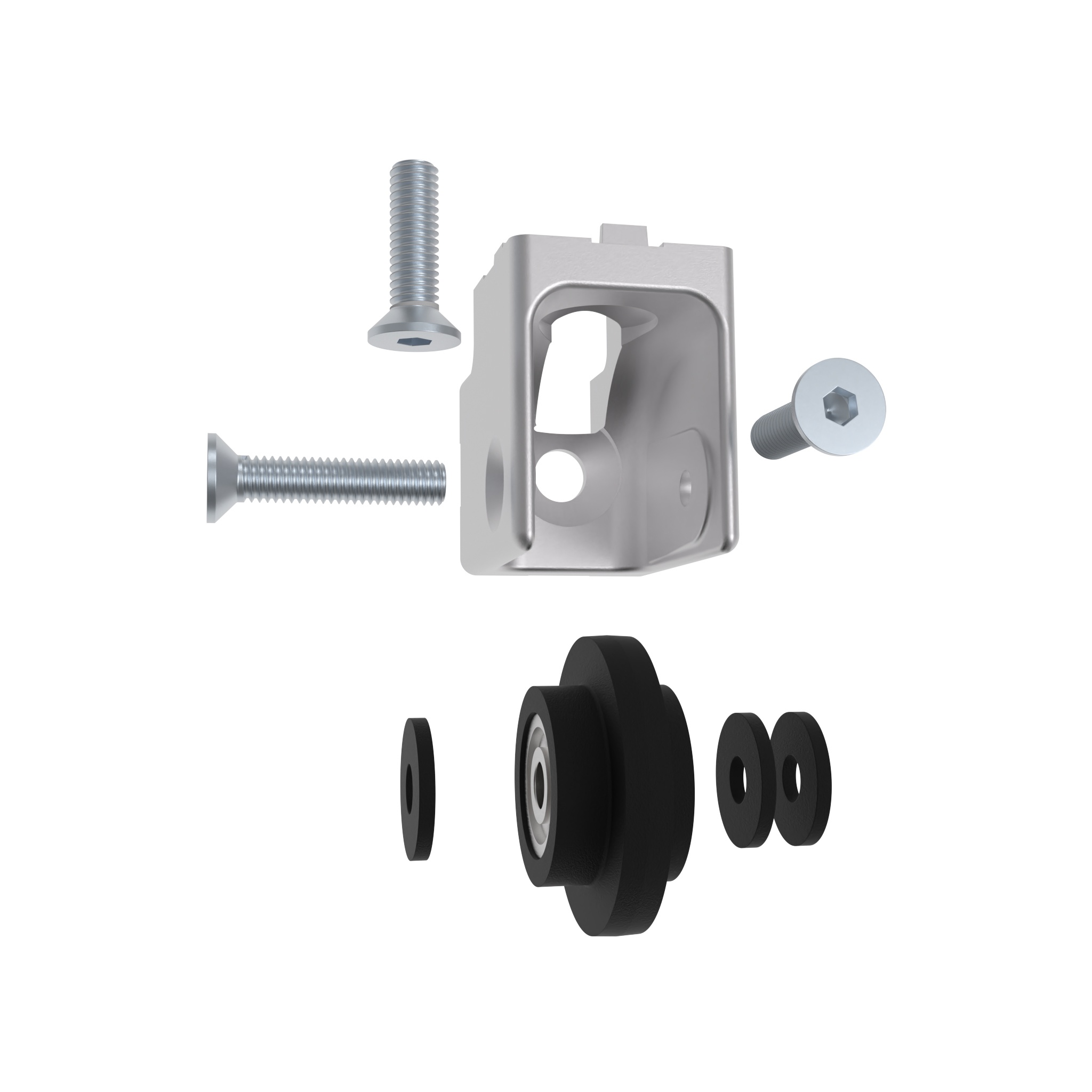

Sliding Door Guide Set 30
0,00 €*
B (mm):
30
|
Conjunto:
Conjunto 2
|
Profile:
I
|
Ranura N (mm):
8
Color:Roller: Black Spacer: NaturalPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles and to guide lift or sliding doors in the slot of an aluminum profile, with ball bearing; spacers can be changed: for a 2 mm distance between door and fixed profile or a 2 or 4 mm distance between two doorsMaterial:Casing: Aluminum die-cast Roller: Plastic PA, glass ball reinforced Spacer: Plastic PASet 1:1 casing, 1 roller slot 8, 1 screw as axle, 2 screws DIN 7991 (ISO 10642) - M6 x 22 (for profile) 3 spacersSet 2:1 casing, 1 roller slot 8, 1 screw as axle, 2 screws DIN 7991 (ISO 10642) - M8 x 20 (for profile) 3 spacersSurface:Casing: PlainZolltarifnummer:76169910990
