Product Portrait


LEVELING CASTERS

With FATH Leveling Casters, always on the same level regardless of the floor

The simple and robust design of FATH Leveling Casters is impressive. The different versions cover the requirements of a wide range of applications and application scenarios in an industrial environment. Wear-resistant casters ensure a long service life with minimal abrasion. They can be dynamically loaded with up to 340 kg – even frames weighing a maximum of 340 kg per caster can be moved safely. Caster diameters of 50 or 62 mm also allow travel over uneven surfaces.

The supporting foot can be extended using a standard open-end wrench on the color highlighted adjusting wheel. This ensures a secure footing for the object. Floor unevenness up to 10 mm can also be compensated for thanks to the continuously adjustable foot. To move the structure to another location, simply retract the foot.

Icon-Plus-white.svg?ts=1743167971 HIGHLIGHTS

  • Universal mounting options
  • Compensation for uneven floors up to 10 mm
  • Flexible use of workplaces and other aluminum profile structures
  • Can hold up to 340 kg per caster

Easy installation – hole pattern with heart and mind!

FATH Leveling Casters have various assembly options. The fixing can be made with a bolt hole thread using double-threaded screws in transport and base plates or core holes of aluminum profiles.

Zur bündigen Montage an allen Profilen mit Rastermaß 40 und 45 sind die Feststellrollen auch mit Anschraubplatte verfügbar. Für die Befestigungslöcher in der Anschraubplatte hat FATH ein spezielles Lochbild in Herzform entwickelt, das es möglich macht, die FATH Feststellrollen an unterschiedlichen Profilrahmen und Profilecken zu montieren – mit bündigem Randabschluss ohne Überstand der Anschraubplatte. Dies erhöht die Flexibilität und die Sicherheit.

WOULD YOU LIKE TO GET TO KNOW ALL SWIVEL AND FIXED CASTERS FROM FATH?

Click here for the complete overview.


To Swivel and Fixed Casters

VERSIONS

Produktgalerie überspringen
Adjustable Leveling Foot
B (mm): 35 | H (mm): 35-50 | Ranura N (mm): 8 | b (mm): 20.5 | Ød (mm): 4.3
Color:NegroPaíses de Entrega:En todo el mundoDescription:Leveling foot for fastening to aluminum profiles, height adjustable without toolMaterial:Housing: Plastic PA, glass fiber reinforced Mechanism: Zinc plated steelEspeciales:Descarga electrostática ESD, otros tamaños, otros colores bajo pedidoZolltarifnummer:39269097900

0,00 €*

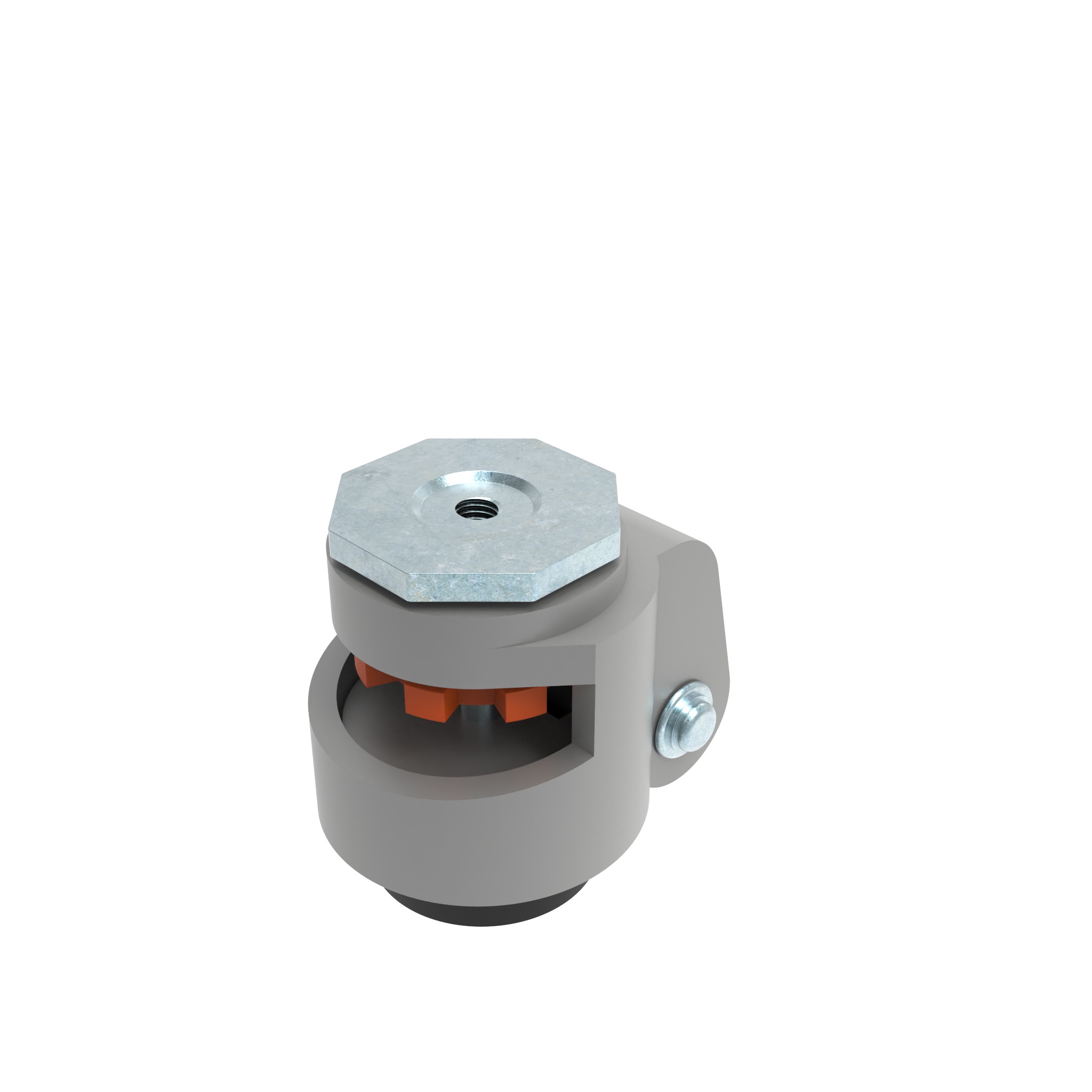

Leveling Caster with Bolt Hole Thread (Set)
Carga Máxima por unidad de elevación (kg): 350 (M8/M12) 500 (M12/M12) | D (mm): 62 | H (mm): 103 | SW 1: 12 | SW 2: 65
Color:Housing: White aluminum ≈ RAL 9006 Adjustment wheel: Orange ≈ RAL 2004 Stamp: Black Roller: BlackPaíses de Entrega:En todo el mundoDescription:Reliable leveling caster with bolt hole thread M12 For fixation to transport and base plates, threaded sleeves or threaded bushes; Roller movement locking by temporary positioning on stamp, actuation of the height adjustment of the stamp via adjustement wheel in the caster housing with wrenchMaterial:Bolt hole plate: Steel Housing: Aluminum die-cast Adjustment wheel: Plastic PA Stamp: Rubber NBR Roller: Plastic PASet:1 leveling casters with bolt hole thread 1 double threaded bolts M8/M12 1 double threaded bolts M12/M12 1 open-end wrenchSurface:Bolt hole plate: Zinc plated Housing: Powder coatedTip:Compatible Transport and Base Plates with thread M8 or M12 on requestZolltarifnummer:76169910990

0,00 €*
Leveling Caster with Mounting Plate 40 / 45
Carga Máxima kg (kg): 500 | D (mm): 62 | H (mm): 103 | SW 1: 12
Color:Housing: White aluminum ≈ RAL 9006 Adjustment wheel: Orange ≈ RAL 2004 Stamp: Black Roller: BlackPaíses de Entrega:En todo el mundoDescription:Reliable leveling caster with integrated mounting plate For fixation to aluminum profiles with modular dimension 40 and 45 mm without overhang No additional transport and base plate needed; Roller movement locking by temporary positioning on stamp, actuation of the height adjustment of the stamp via adjustement wheel in the caster housing with wrenchMaterial:Mounting plate: Steel Housing: Aluminum die-cast Adjustment wheel: Plastic PA Stamp: Rubber NBR Roller: Plastic PASurface:Mounting plate: Zinc plated Housing: Powder coatedZolltarifnummer:76169910990

0,00 €*
