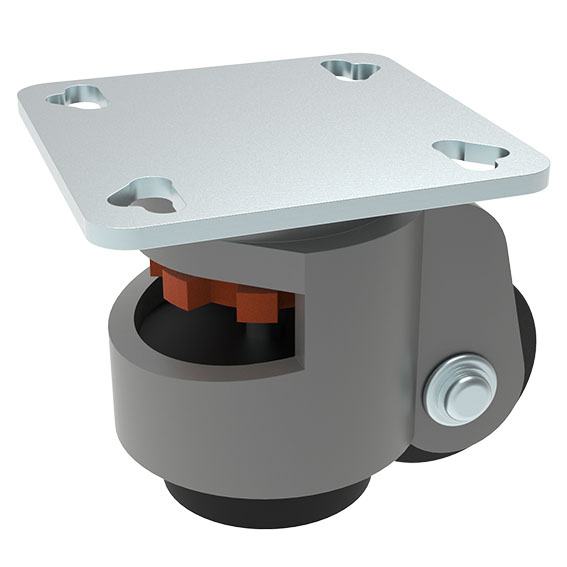

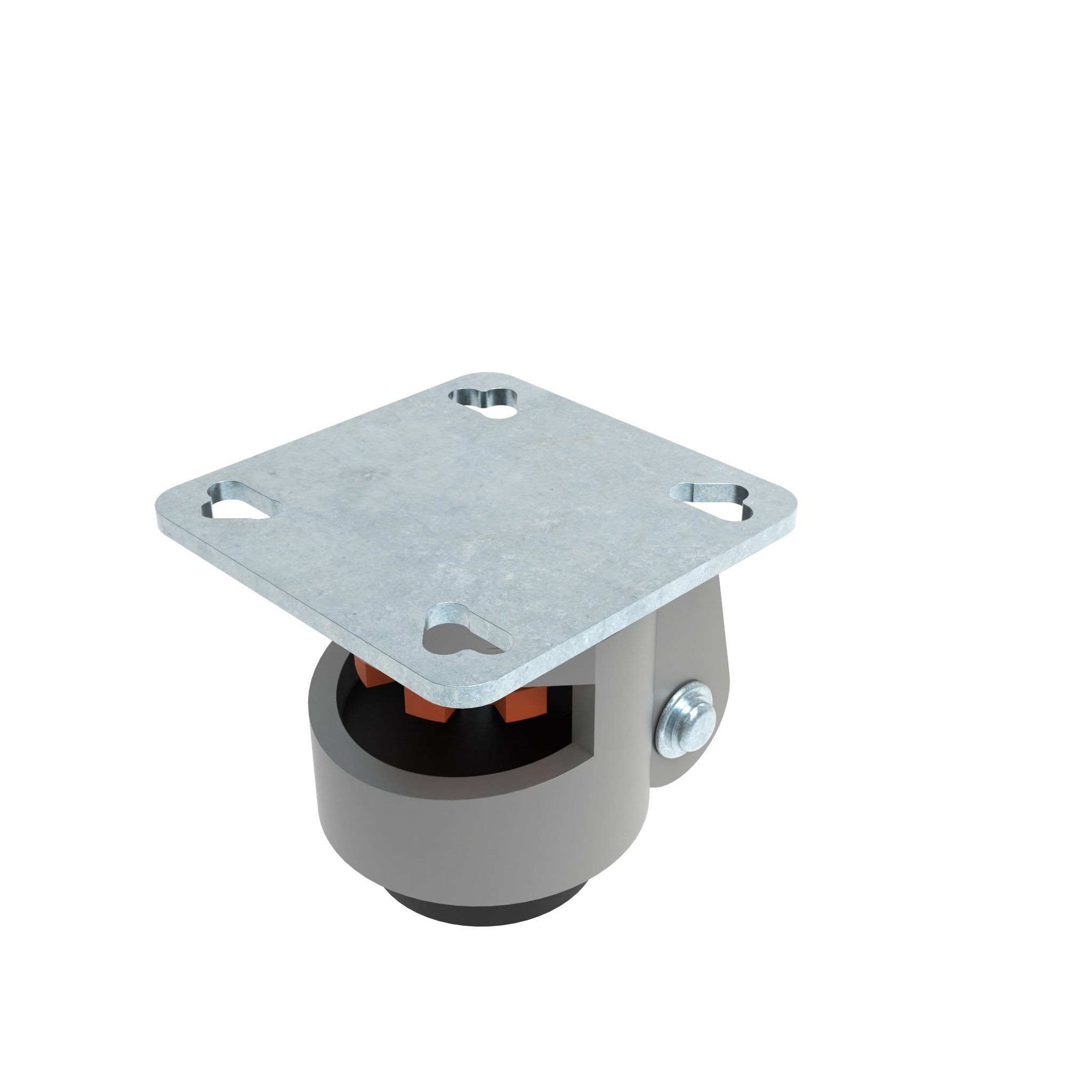

Rueda niveladora con placa de montaje 40 / 45
Precio normal:
0,00 €
Número de producto:
098LF062AF110110
Cantidad por Paquete:
1 pieza
Información sobre el producto "Rueda niveladora con placa de montaje 40 / 45"
Color:
Housing: White aluminum ≈ RAL 9006
Adjustment wheel: Orange ≈ RAL 2004
Stamp: Black
Roller: Black
Países de Entrega:
En todo el mundo
Description:
Reliable leveling caster with integrated mounting plate

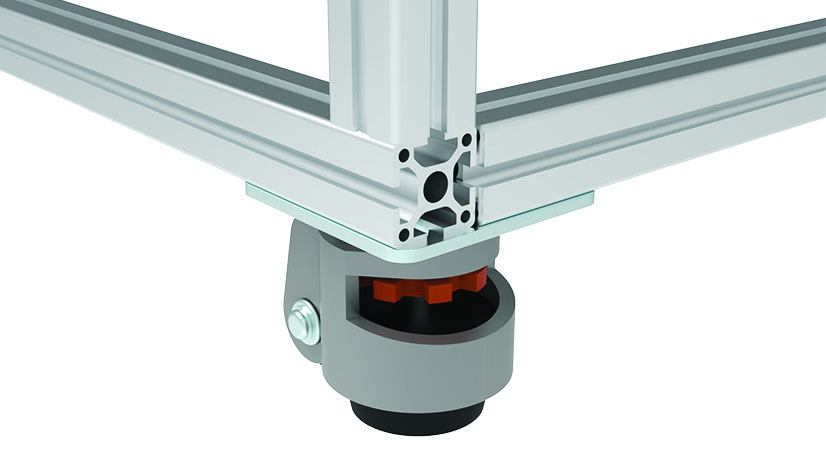

For fixation to aluminum profiles with modular dimension 40 and 45 mm without overhang
No additional transport and base plate needed;

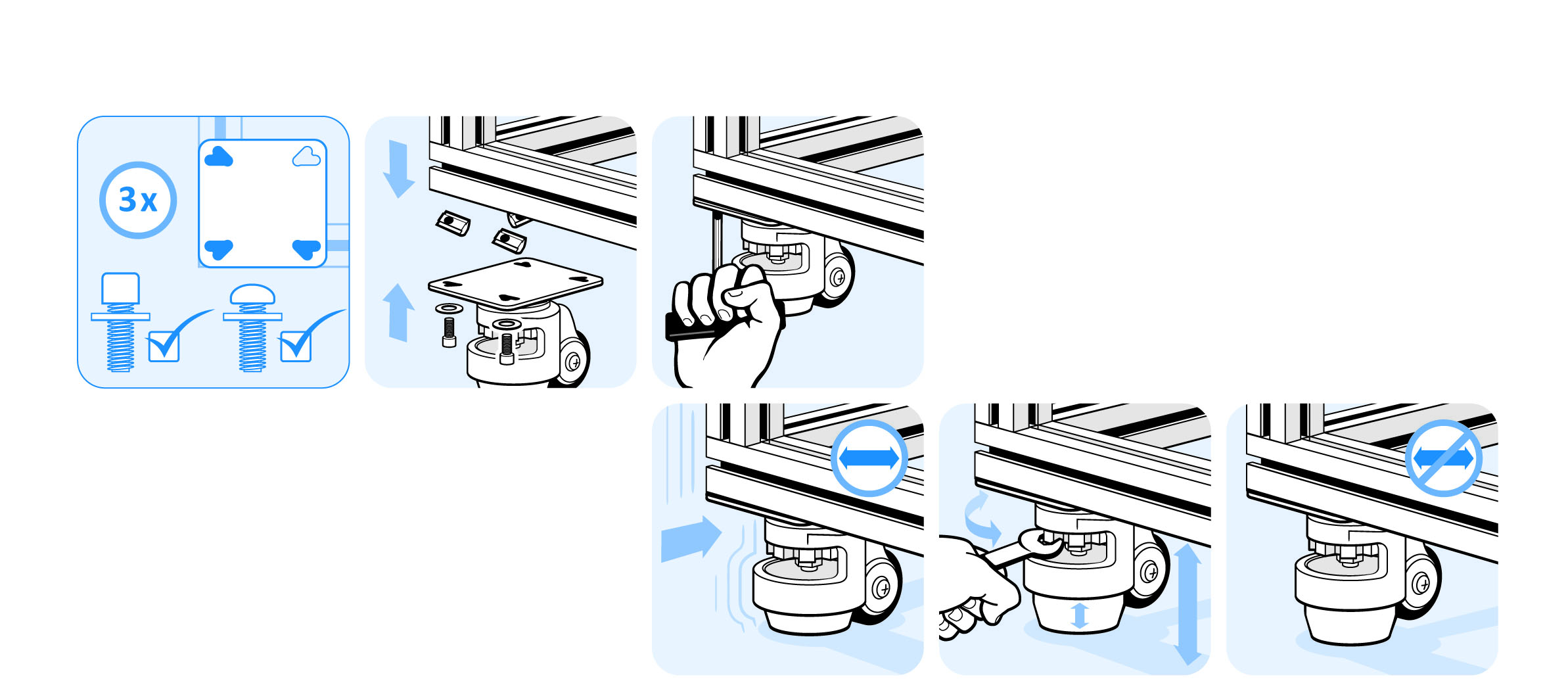

Roller movement locking by temporary positioning on stamp, actuation of the height adjustment of the stamp via adjustement wheel in the caster housing with wrench
Material:
Mounting plate: Steel
Housing: Aluminum die-cast
Adjustment wheel: Plastic PA
Stamp: Rubber NBR
Roller: Plastic PA
Surface:
Mounting plate: Zinc plated
Housing: Powder coated
Housing: White aluminum ≈ RAL 9006
Adjustment wheel: Orange ≈ RAL 2004
Stamp: Black
Roller: Black
Países de Entrega:
En todo el mundo
Description:
Reliable leveling caster with integrated mounting plate
For fixation to aluminum profiles with modular dimension 40 and 45 mm without overhang
No additional transport and base plate needed;
Roller movement locking by temporary positioning on stamp, actuation of the height adjustment of the stamp via adjustement wheel in the caster housing with wrench
Material:
Mounting plate: Steel
Housing: Aluminum die-cast
Adjustment wheel: Plastic PA
Stamp: Rubber NBR
Roller: Plastic PA
Surface:
Mounting plate: Zinc plated
Housing: Powder coated
| Cantidad por Paquete: | 1 pieza |
|---|---|
| Model: | With mounting plate |
| Peso (g): | 1345.0 |
| ECLASS 6.0: | 23370290 |
| ECLASS 7.0: | 23370290 |
| ECLASS 8.0: | 23370290 |
| ECLASS 9.0: | 23370290 |
| ECLASS 10.0: | 23370290 |
| ECLASS 11.0: | 23370290 |
| ECLASS 12.0: | 23370290 |
| ECLASS 13.0: | 23370290 |
| Zolltarifnummer: | 76169910990 |
| Número de Arancel Aduanero de Exportación: | 76169990 |
| Numero de ERP: | 149142 |
