Swivel Foot PA, / ST - BDH - Ball Joint 22

Información sobre el producto "Swivel Foot PA, / ST - BDH - Ball Joint 22"

Color:
Base: Black

Países de Entrega:
En todo el mundo

Description:

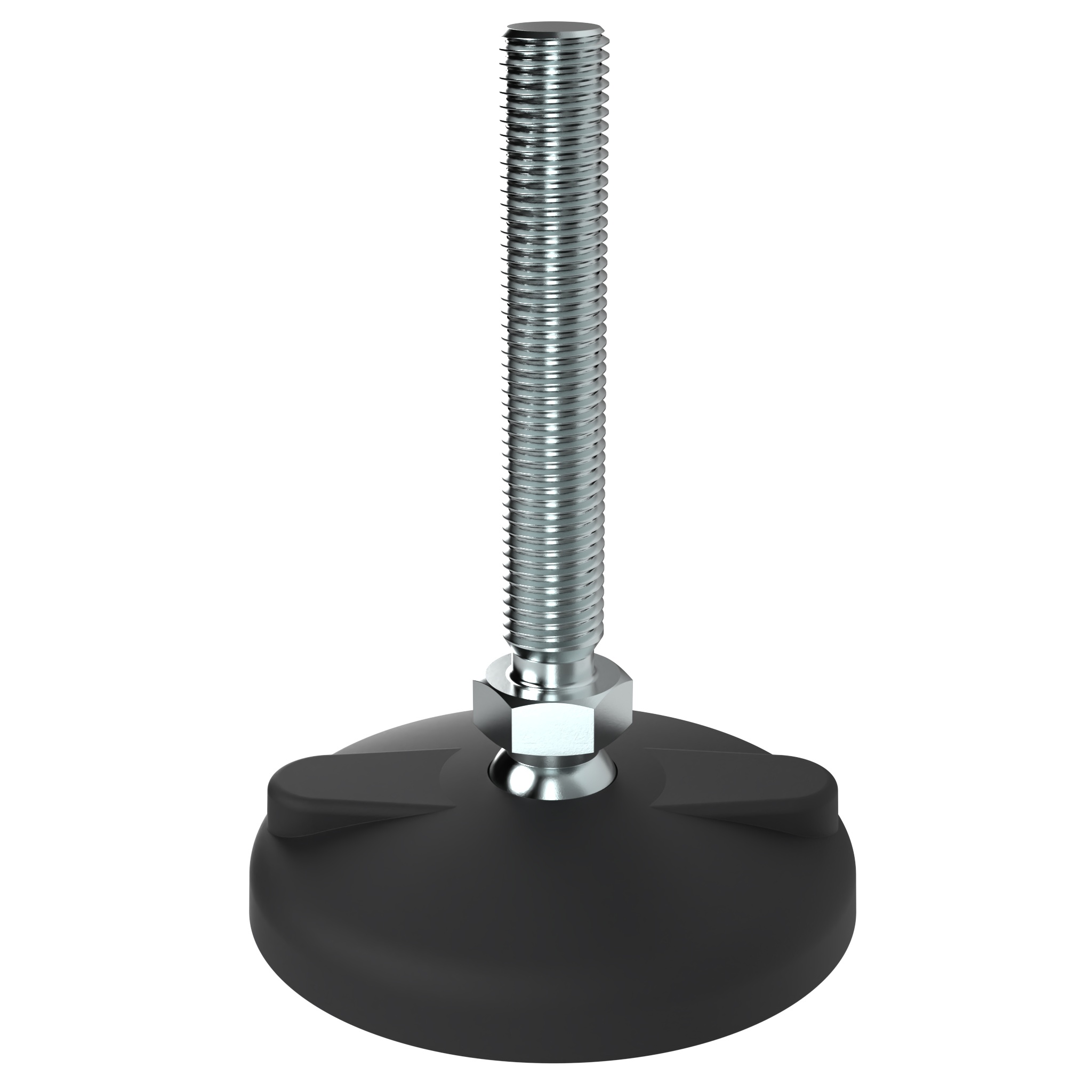

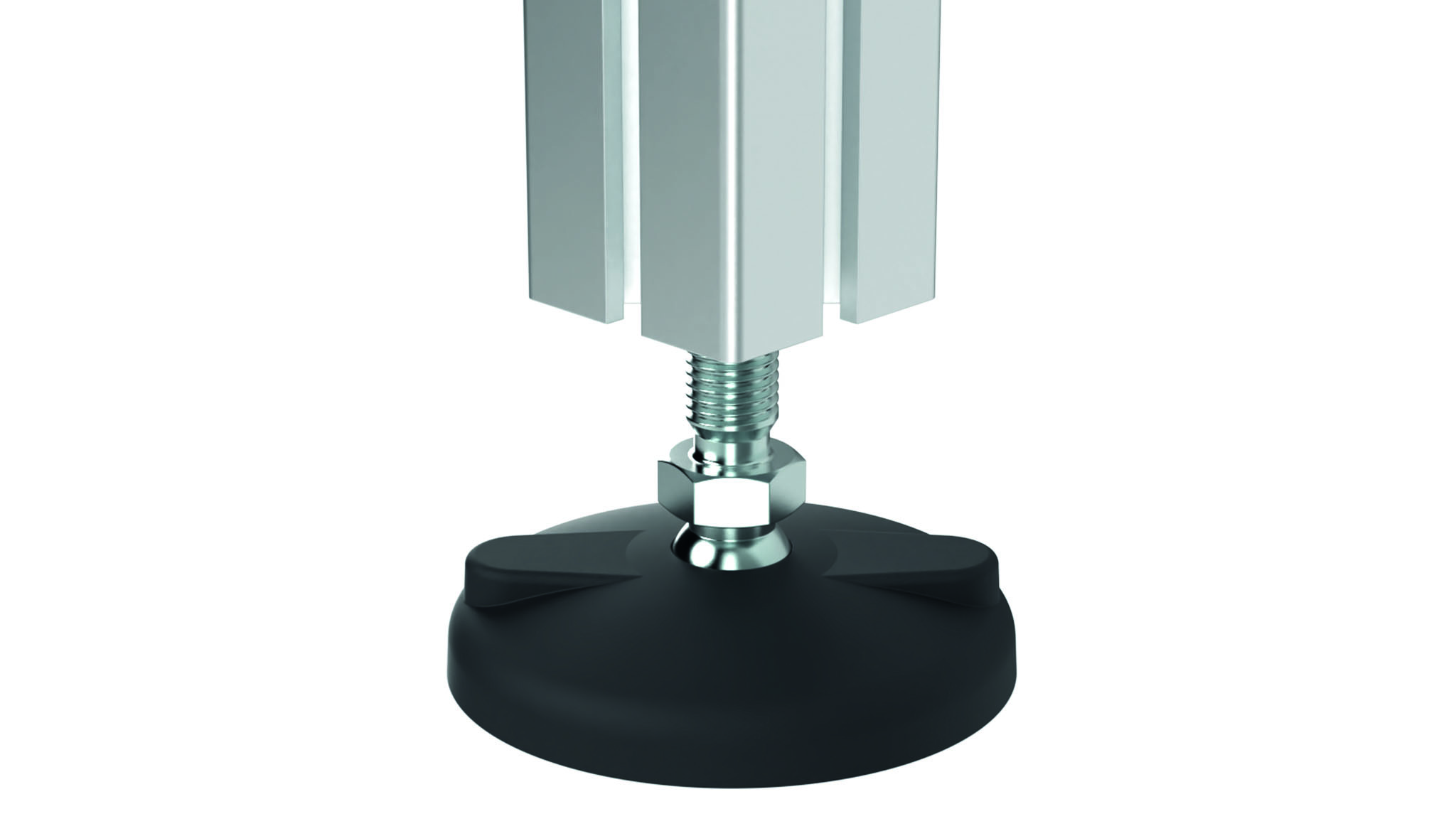

A swiveling leveling foot which can be fixed to the floor

Material:
Base: Plastic PA, glass ball reinforced
Threaded rod: Steel

Specials:
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Stainless steel, other lengths and other sizes on request

Surface:
Threaded rod: Zinc plated

Tip:
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,

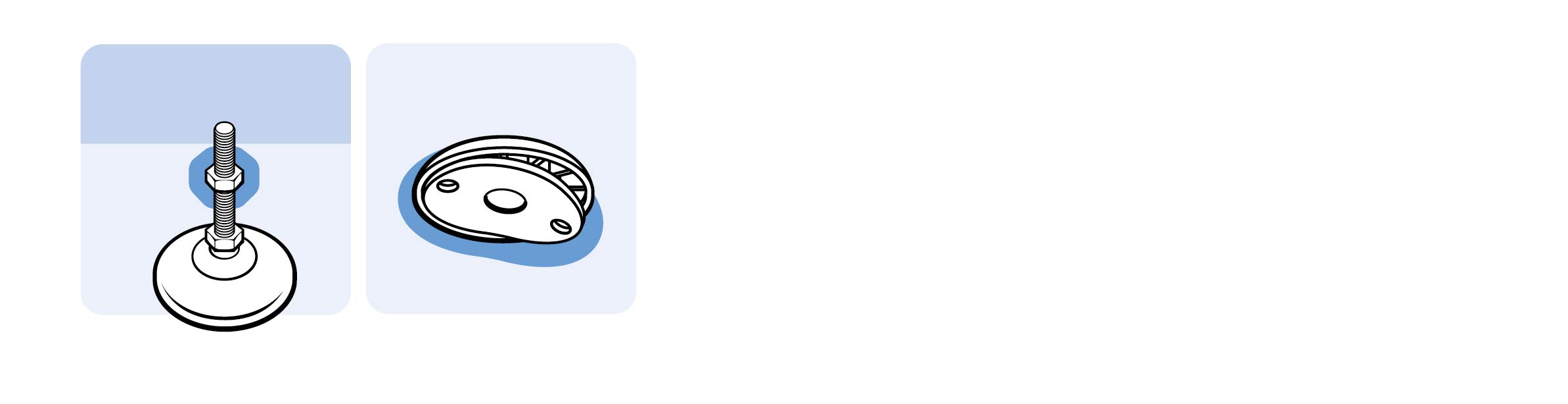

Compatible Anti-Slip Plate see 098DG030 et sq.

Tip 2:
* Bolt-down holes closed

Zolltarifnummer:
73269098900
Ball Joint: Swiveling range ±20°
Cantidad por Paquete: 1 pieza
Model: Plastic PA / Steel, with bolt-down holes
Peso (g): 309.0

Variantes

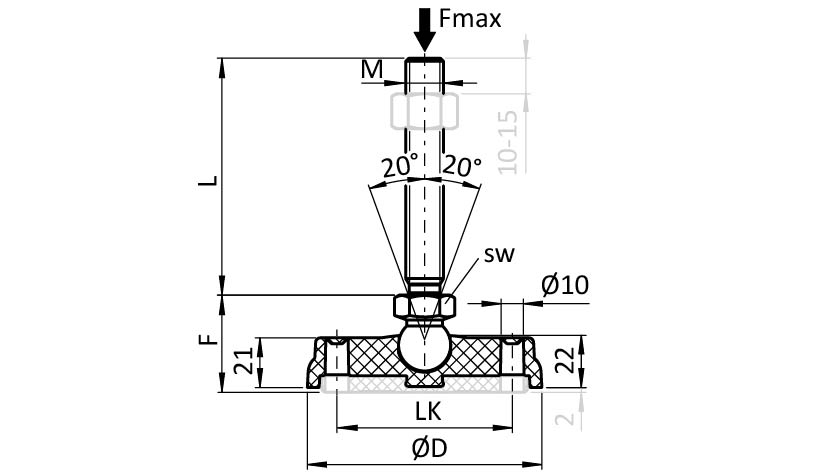

ID de producto Fmax (N) Version F (mm) SW (mm) M x L (mm) Base LK (mm) D (mm)
9C100KBZ16150M 8800 without anti-slip plate 38.5 22 M16 x 150 *100 74 99
