The simple and robust design of FATH Leveling Casters is impressive. The different versions cover the requirements of a wide range of applications and application scenarios in an industrial environment. Wear-resistant casters ensure a long service life with minimal abrasion. They can be dynamically loaded with up to 340 kg – even frames weighing a maximum of 340 kg per caster can be moved safely. Caster diameters of 50 or 62 mm also allow travel over uneven surfaces.
The supporting foot can be extended using a standard open-end wrench on the color highlighted adjusting wheel. This ensures a secure footing for the object. Floor unevenness up to 10 mm can also be compensated for thanks to the continuously adjustable foot. To move the structure to another location, simply retract the foot.

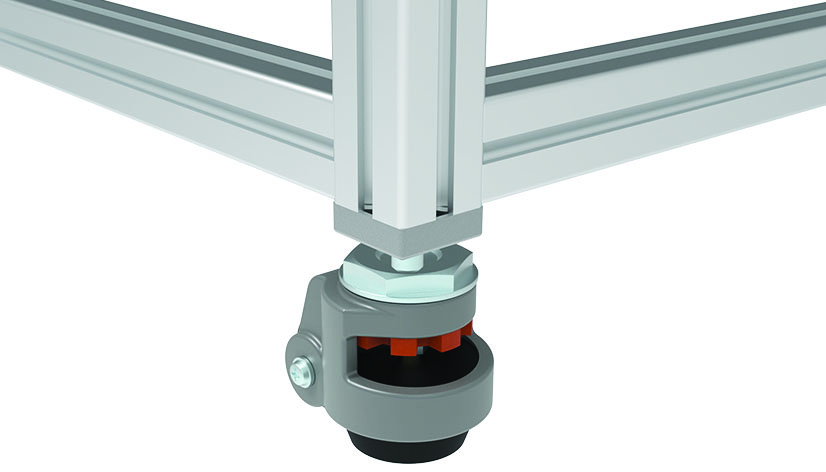

FATH Leveling Casters have various assembly options. The fixing can be made with a bolt hole thread using double-threaded screws in transport and base plates or core holes of aluminum profiles.
The Leveling Casters are also available with a screw-on plate for flush mounting on all profiles with modular dimensions 40 and 45. For the mounting holes in the mounting plate, FATH has developed a special heart-shaped hole pattern, which makes it possible to mount the FATH Leveling Casters on different profile frames and profile corners – with a flush lip without protruding from the mounting plate. This increases flexibility and safety.
