FATH Swivel and Fixed Casters with Lifting Foot are an ingenious 2-in-1 component for easy movement and secure positioning, as they combine these two functions in a practical way. All FATH Swivel and Fixed Casters with Lifting Foot combine a high quality Blickle swivel or fixed caster with a FATH adjustable foot. Jack up the adjustable foot with the foot pedal, roll the object to the new position, lower the adjustable foot – done!
Designed to be permanently mounted on the object, FATH Swivel and Fixed Casters with Lifting Foot enable you to reposition your heavy machines and equipment on industrial floors at any time – without a forklift and without tools. The high lever ratio of up to 1:20 means that you only need a weight of 10 kg to lift 200 kg.
FATH Swivel and Fixed Casters with Lifting Foot not only save a lot of time when repositioning work equipment, they also improve safety in the production area. Safety risks associated with disassembly and manual transportation are avoided. When changing the standing/roll function, shoes and feet are optimally protected by the complete plastic covering of the step area. The anti-slip plate, which is already screwed onto the adjustable foot plate, secures the adjustable foot against slipping and at the same time protects the floor.
FATH Swivel Casters enable you to move in any direction, ergonomically and with less effort. Moving loads has never been easier!
Time-consuming dismantling and assembly of machines, assembly tables, measuring stations, work platforms, stairs, etc. is no longer necessary.
The perfect solution for everything that is frequently moved but still needs to stand securely – for example, on rollers in a parking position or at a temporary location and on the adjustable feet for work to be carried out. Depending on the requirements for movement, you can also mount swivel and fixed casters together, for example, to keep your object safely on track.
Get all the technical data for FATH Swivel and Fixed Casters with Lifting Foot.
Enter your personal details in the form and start the download of your PDF.
Once in the desired position, the FATH Swivel and Fixed Casters can be easily lifted again if required with the practical lifting mechanism. The machines or equipment stand securely and with minimal vibration on the adjustable feet and not on a caster blocked by a brake. FATH Swivel and Fixed Casters with Lifting Foot, manufactured with solid steel parts, ensure firm footing even under heavy loads.
Highest stability even with heavy loads - thanks to strong leveling foot M12 thread.
The swivel foot is height-adjustable and adapts to uneven floors. With a large diameter of 50 millimeters, the adjustable foot plate offers ideal load distribution and also increases stability.

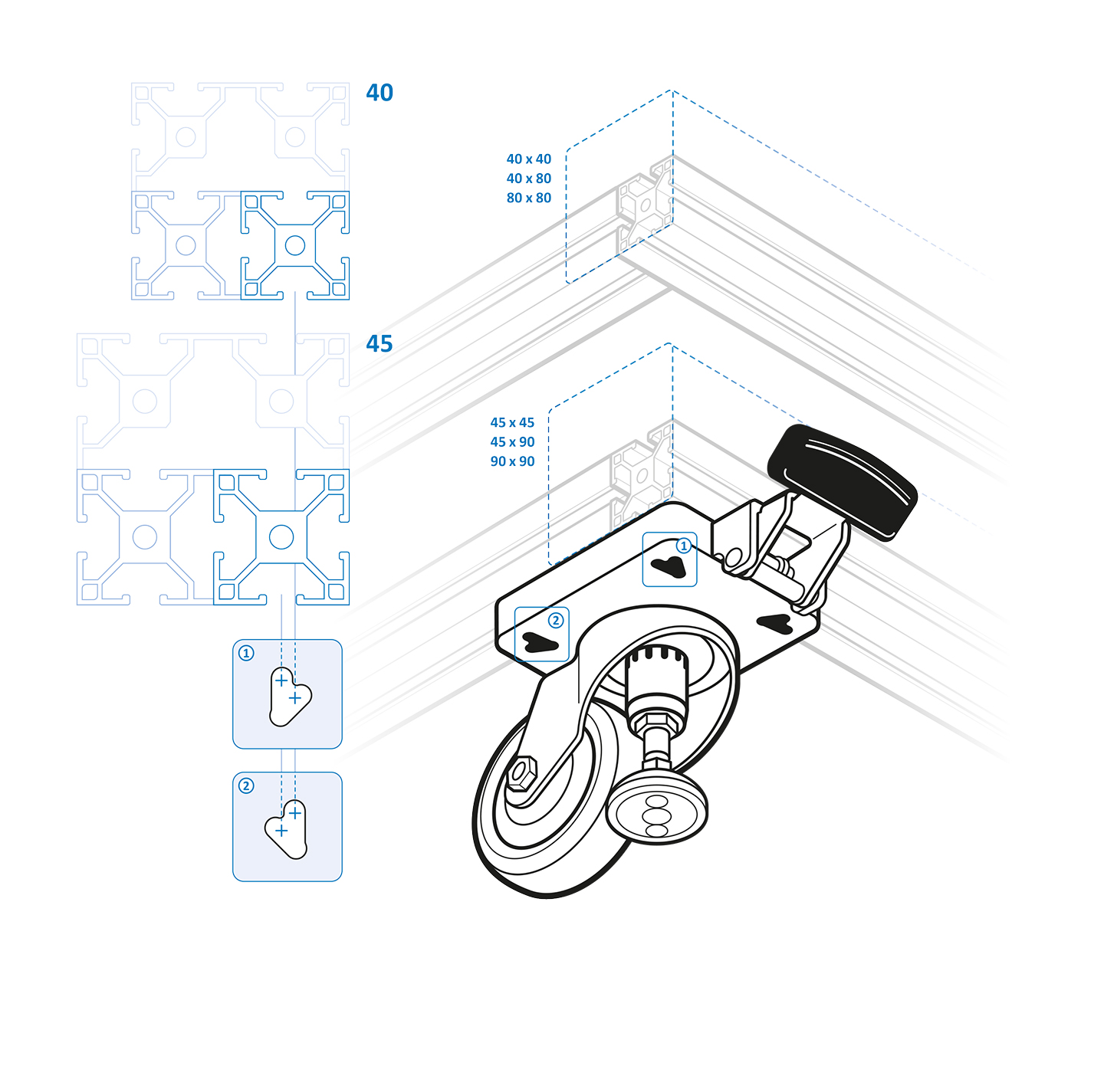

FATH has developed a special heart-shaped hole pattern for the mounting holes in the mounting plate of the lifting foot, which makes it possible to mount the same swivel or fixed caster with lifting foot on very different profile frames and profile corners – with a flush lip without protruding from the mounting plate. It looks elegant and is safe. As well as attractive: The powder coating of the housing matches the anodized aluminum profile.
The FATH Swivel and Fixed Casters with Lifting Foot are ideally suited for modular dimensions 40 and 45 as well as right-angle profiles 40x80 and 45x90.
You can make a big impact with the dual function of FATH Swivel and Fixed Casters with Lifting Foot. The changeover to new production processes can thereby be easily optimized. Relocation of machines, provisioning of heavy equipment, storage of temporarily unused loads and much more can be carried out easily and significantly faster than with conventional methods. A plus in flexibility and efficiency in manufacturing – and far beyond.
The applications for the clever FATH Swivel and Fixed Casters with Lifting Foot are virtually unlimited. What would you like to move?
