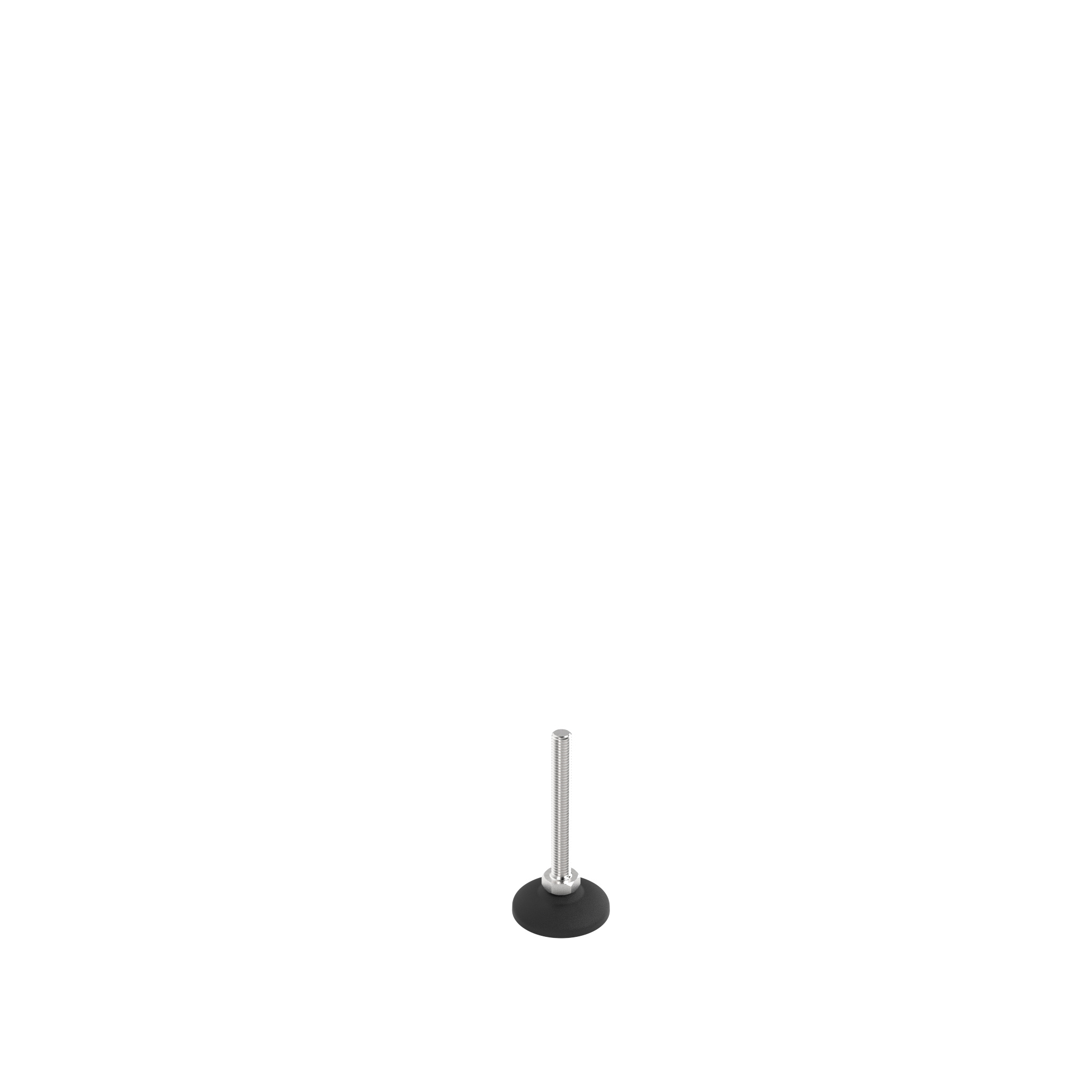

ECO-Stellfuß, PA / VA

Produktinformationen "ECO-Stellfuß, PA / VA"

Farbe:
Teller: schwarz

Lieferländer:
weltweit

Beschreibung:
preiswerter, nivellierbarer Stellfuß zum Ausgleich von Bodenunebenheiten

Material:
Teller: Kunststoff PA, glaskugelverstärkt
Gewindestange: Edelstahl

Extras:
ESD elektrostatisch entladend, weitere Größen, weitere Farben, geklebte Anti-Slip-Platte auf Anfrage
weitere Längen und Größen auf Anfrage

Oberfläche:
Gewindestange: blank

Hinweis:
passende Mutter siehe 4DIN439BM5M f. und 4DIN934M5M f.,
passende Anti-Slip-Platte siehe 098EG030 f.

Zolltarifnummer:
73269098900
Verbindung: Schwenkbereich ±5°
Gewicht (g): 67.6
Liefereinheit: 1 Stück
Modell: Kunststoff PA / Edelstahl

Varianten

Produkt ID Ausführung Teller Fmax (N) D (mm) F (mm) H (mm) h (mm) K (mm) M x L (mm) SW (mm)
9E030K08025E ohne Anti-Slip-Platte 30 3430 29 16.0 11.5 2.0 5.3 M8 x 25 13
9E030K10040E ohne Anti-Slip-Platte 30 4600 29 16.5 11.5 2.0 6.4 M10 x 40 17
9E040K08025E ohne Anti-Slip-Platte 40 3430 39 16.5 12.0 2.5 5.3 M8 x 25 13
9E040K12100E ohne Anti-Slip-Platte 40 7550 39 18.0 12.0 2.5 7.5 M12 x 100 19
9E050K10050E ohne Anti-Slip-Platte 50 4600 50 20.3 15.3 3.0 6.4 M10 x 50 17
9E050K10080E ohne Anti-Slip-Platte 50 4600 50 20.3 15.3 3.0 6.4 M10 x 80 17
