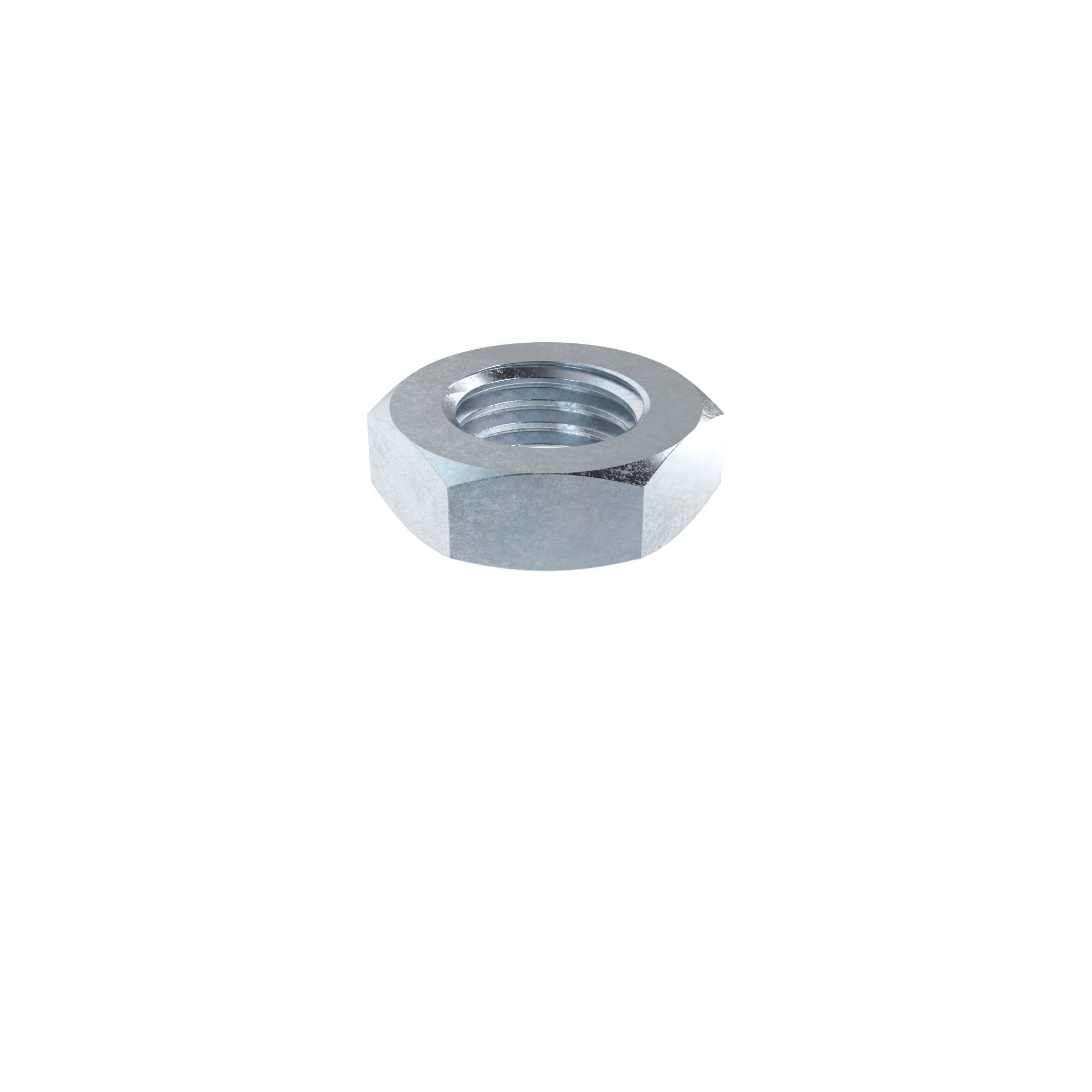

Mutter DIN 439 für Gewindestangen

Produktinformationen "Mutter DIN 439 für Gewindestangen"

Lieferländer:
weltweit

Beschreibung:
flache Kontermuttern DIN 439 (ISO 4035) Form B für Gewindestangen

Material:
Stahl / Edelstahl

Oberfläche:
verzinkt / blank
Liefereinheit (1): 10
Liefereinheit (Stück): 100
Gewicht (g): 18.0
(ECLASS 6.0): 23110790
(ECLASS 7.0): 23110790
(ECLASS 8.0): 23110790
(ECLASS 9.0): 23110790
(ECLASS 10.0): 23110790
(ECLASS 11.0): 23110702
(ECLASS 12.0): 23110702
(ECLASS 13.0): 23110702
Liefereinheit: 10 / 100 Stück
Modell: Stahl / Edelstahl

Varianten

Produkt ID H (mm) M Material SW (mm)
4DIN439BM10E 5.0 M10 Edelstahl 17
4DIN439BM10M 5.0 M10 Stahl 17
4DIN439BM12E 6.0 M12 Edelstahl 19
4DIN439BM12M 6.0 M12 Stahl 19
4DIN439BM14E 7.0 M14 Edelstahl 22
4DIN439BM14M 7.0 M14 Stahl 22
4DIN439BM16E 7.9 M16 Edelstahl 24
4DIN439BM16M 7.9 M16 Stahl 24
4DIN439BM20E 10.0 M20 Edelstahl 30
4DIN439BM20M 10.0 M20 Stahl 30
4DIN439BM24E 12.0 M24 Edelstahl 36
4DIN439BM24M 12.0 M24 Stahl 36
4DIN439BM30E 15.0 M30 Edelstahl 46
4DIN439BM30M 15.0 M30 Stahl 46
4DIN439BM5E 2.7 M5 Edelstahl 8
4DIN439BM5M 2.7 M5 Stahl 8
4DIN439BM6E 3.2 M6 Edelstahl 10
4DIN439BM6M 3.2 M6 Stahl 10
4DIN439BM8E 4.0 M8 Edelstahl 13
4DIN439BM8M 4.0 M8 Stahl 13
