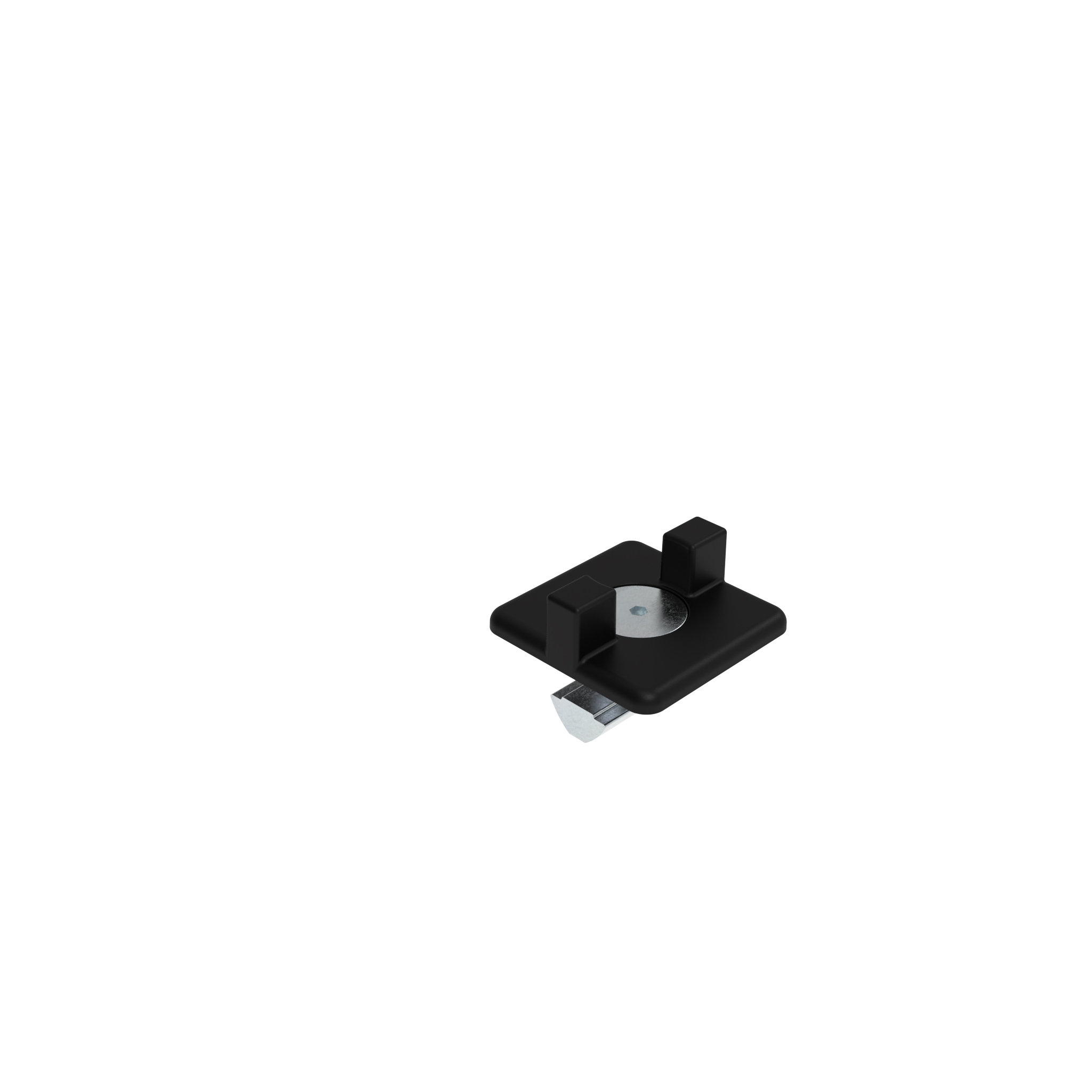

Nutgleiter (Set)

Produktinformationen "Nutgleiter (Set)"

Farbe:
V_T-slot slider: black

Lieferländer:
weltweit

Beschreibung:

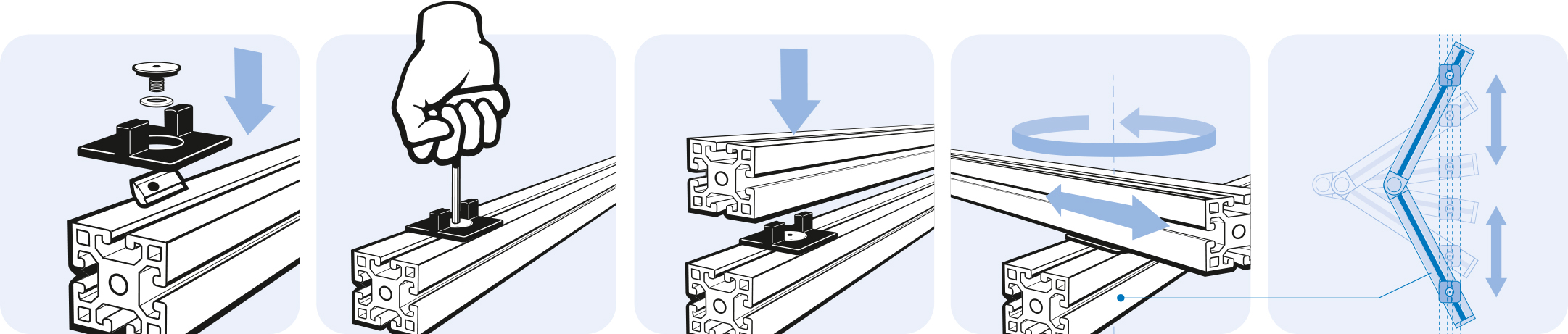

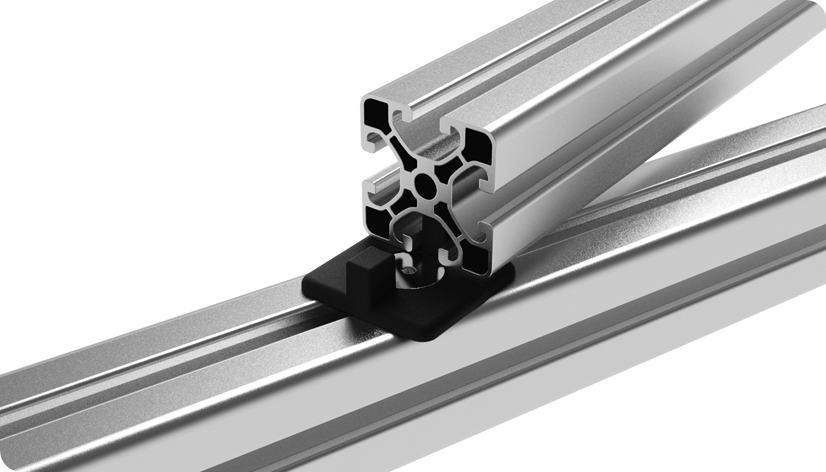

V_For the assembly of folding doors with simultaneous rotating and sliding movement; without a T-slot also suitable for side to end mounting into the core hole for e.g. keyboard pull outs

Material:
V_T-slot slider: Plastic POM
Special screw: Steel
Washer: Stainless steel
T-slot nut: Steel

Set:
1 Nutgleiter,
1 Sonder-Schraube - M8 x 13,
1 Scheibe DIN EN ISO 4759-3 (DIN 988),
1 Nutenstein - Nut 8 - M8

Extras:
weitere Farben auf Anfrage

Oberfläche:
V_Special screw: Zinc plated
Washer: Plain
T-slot nut: Zinc plated

Hinweis:
V_For gap distance 5 mm
Modell: Nut 8
Liefereinheit: 10 Sets
Zolltarifnummer Ausfuhr: 39269097
Gewicht (g): 25.0
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Zolltarifnummer: 39269097900
pA-Nummer: 140113

Varianten

Produkt ID Tragkraft (N) Nut N (mm) Profil
093ST4040N08 60 8 I
