Verbindungswinkel

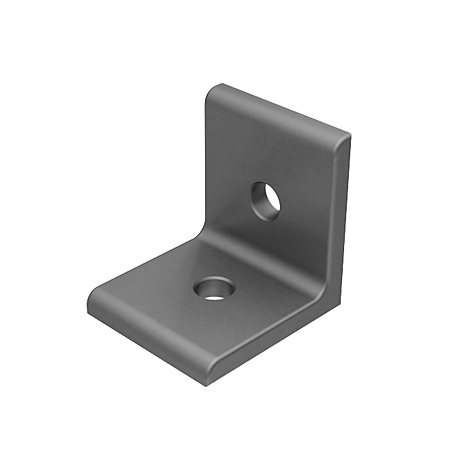

Ausführung: 20 | H (mm): 3.0 | B (mm): 18.0 | C (mm): 10.0 | L (mm): 20.0 | ØD (mm): 5.5

D (mm): 9.0 | F (mm): 18.0 | H (mm): 5.5 | A (mm): 20.0 | B (mm): 20.0 | C (mm): 3.0 | Rastermaß (mm): 20 | E (mm): 12.0 | G (mm): 10.0

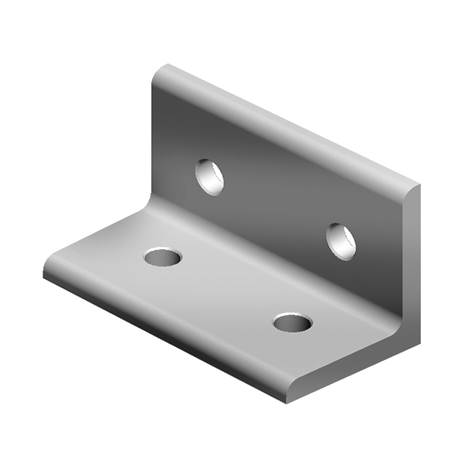

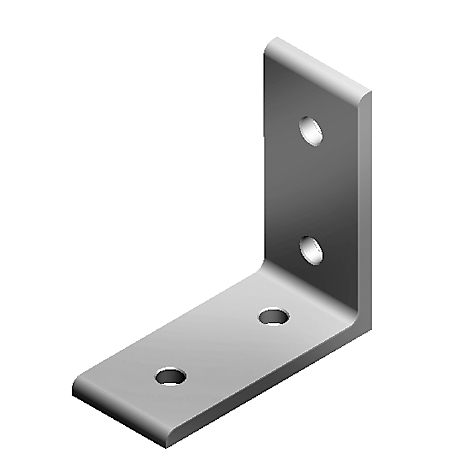

Ausführung: 20 / 40 | H (mm): 3.0 | A (mm): 20.0 | B (mm): 18.0 | C (mm): 10.0 | L (mm): 40.0 | ØD (mm): 5.5

D (mm): 11.2 (0.44") | F (mm): 22.4 (0.88") | H (mm): 25.4 (1") | A (mm): 50.8 (2.00") | B (mm): 50.8 (2.00") | C (mm): 4.8 (0.19") | Farbe: alufarbig | Rastermaß (mm): 25.4 (1") | E (mm): 12.7 (0.50") | G (mm): 12.7 (0.50") | J (mm): 6.9 (0.27")

Ausführung: 40 / 20 | H (mm): 3.0 | A (mm): 20.0 | B (mm): 38.0 | C (mm): 10.0 | L (mm): 20.0 | ØD (mm): 5.5

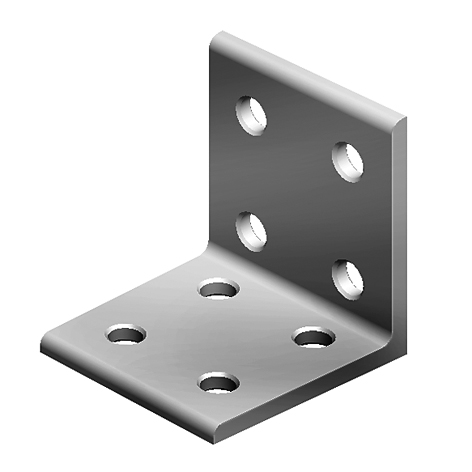

Ausführung: 40 / 40 | H (mm): 3.0 | A (mm): 20.0 | B (mm): 38.0 | C (mm): 10.0 | L (mm): 40.0 | ØD (mm): 5.5
