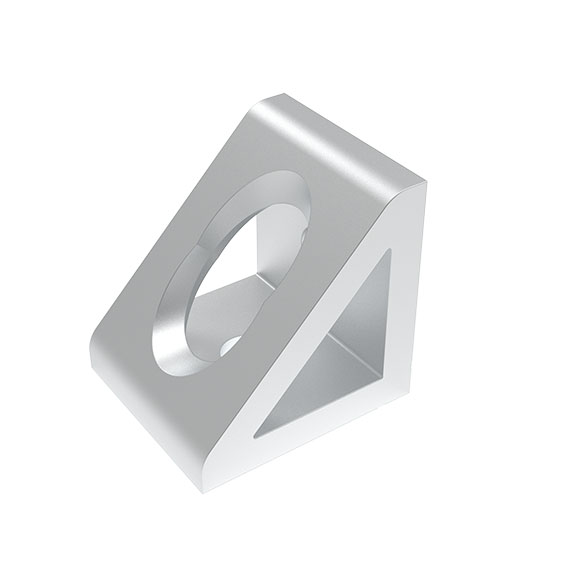

Verbindungswinkel

ØD (mm): 9.0 | ØD1 (mm): 13.5 | ØD2 (mm): 28.0 | B (mm): 36.0 | Raster: 40

ØD (mm): 7.0 | ØD1 (mm): - | ØD2 (mm): 22.0 | A (mm): 30.0 | B (mm): 57.0 | Raster: 30

A (mm): 25.4 (1") | B (mm): 25.4 (1") | C (mm): 4.8 (0.19") | D (mm): 11.2 (0.44") | E (mm): 12.7 (0.50") | F (mm): 22.4 (0.88") | G (mm): 12.7 (0.50") | H (mm): 6.9 (0.27") | Raster: 25.4 (1")

Farbe: schwarz | A (mm): 90.0 | B (mm): 90.0 | C (mm): 6.0 | D (mm): 20.5 | E (mm): 20.0 | F (mm): 41.0 | G (mm): 22.5 | H (mm): 45.0 | J (mm): 9.0 | Raster: 45

Ausführung: 38.1 - 1.5" | ØD (mm): 9.0 | B (mm): 38.1 (1.5") | C (mm): 19.0 (0.75") | H (mm): 6.0 | L (mm): 38.1 (1.5")

Ausführung: 40 / 80 | ØD (mm): 9.0 | A (mm): 40.0 | B (mm): 36.0 | C (mm): 20.0 | H (mm): 6.0 | L (mm): 80.0

Ausführung: 80 / 40 | ØD (mm): 9.0 | A (mm): 40.0 | B (mm): 76.0 | C (mm): 20.0 | H (mm): 6.0 | L (mm): 40.0

Ausführung: 60 / 60 | ØD (mm): 7.0 | A (mm): 30.0 | B (mm): 57.0 | C (mm): 15.0 | H (mm): 5.0 | L (mm): 60.0
