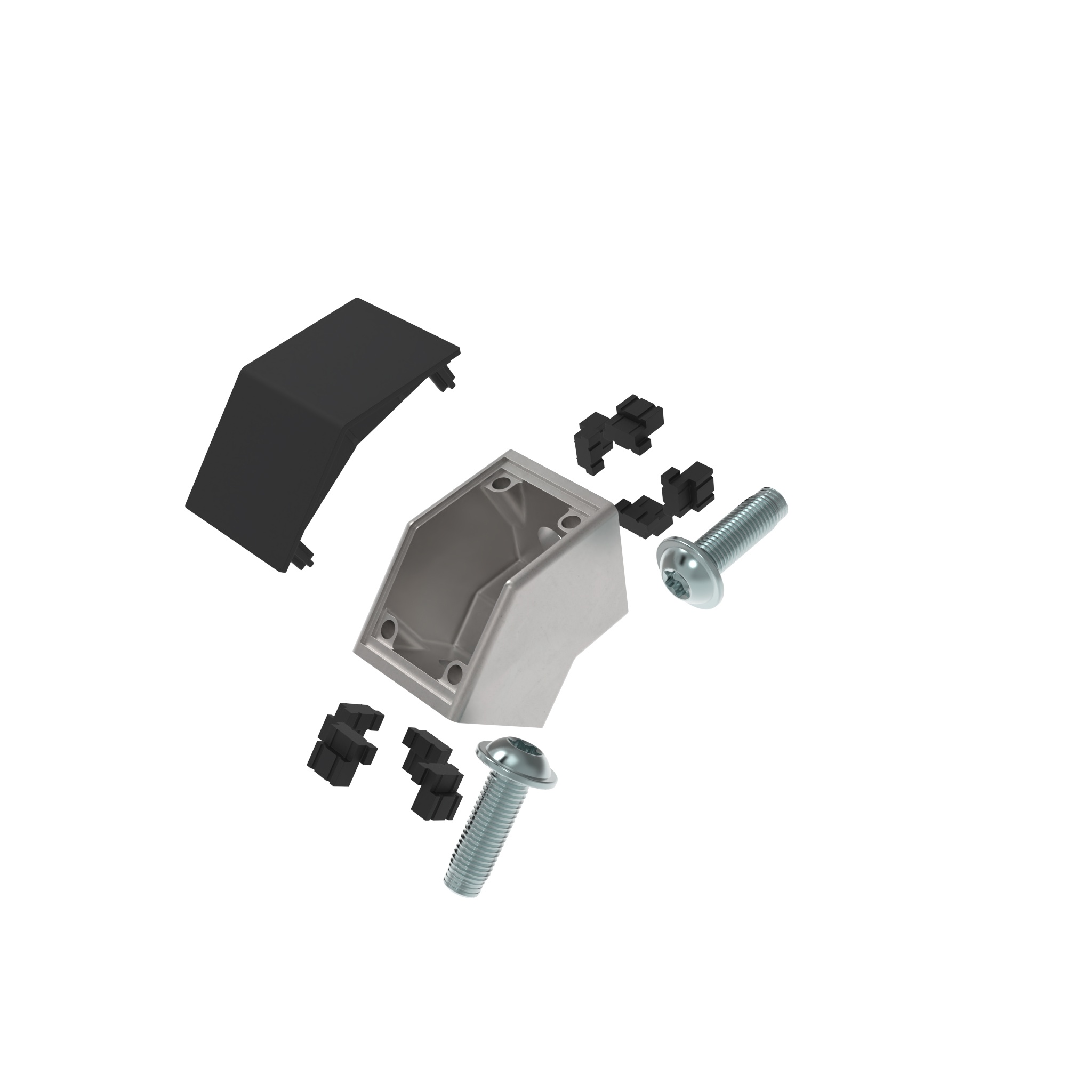

Angle Connector B 30, 45°
Precio normal:
0,00 €
Número de producto:
093WS30145N0810R1-
Cantidad por Paquete:
10 piezas / 10 jconjuntos
Información sobre el producto "Angle Connector B 30, 45°"
Assembly Set:
2 self-forming screws S8 x 25 - hexalobular socket T40 ,
1 socket head screw - DIN EN ISO 4762 (DIN 912) - M6 x 12,
1 washer DIN EN ISO 7089 (DIN 125) - Form A,
1 hammer nut M6 - slot 8,
1 socket head screw - DIN EN ISO 4762 (DIN 912) - M8 x 16,
1 hammer nut M8 - slot 10
Color:
Centering pieces: Black
Cover caps: Black / alu color
Países de Entrega:
En todo el mundo
Description:
To mount a profile as bracing at a 45° angle without miter cut
Material:
Angle connector: Aluminum die-cast
Centering pieces: Plastic PA, glass fiber reinforced
Cover caps: Plastic PA, glass fiber reinforced
Assembly set: Steel
Especiales:
Otras superficies, otros colores bajo pedido
Surface:
Angle connector: Plain / Powder coated
Assembly set: Zinc plated
2 self-forming screws S8 x 25 - hexalobular socket T40 ,
1 socket head screw - DIN EN ISO 4762 (DIN 912) - M6 x 12,
1 washer DIN EN ISO 7089 (DIN 125) - Form A,
1 hammer nut M6 - slot 8,
1 socket head screw - DIN EN ISO 4762 (DIN 912) - M8 x 16,
1 hammer nut M8 - slot 10
Color:
Centering pieces: Black
Cover caps: Black / alu color
Países de Entrega:
En todo el mundo
Description:
To mount a profile as bracing at a 45° angle without miter cut
Material:
Angle connector: Aluminum die-cast
Centering pieces: Plastic PA, glass fiber reinforced
Cover caps: Plastic PA, glass fiber reinforced
Assembly set: Steel
Especiales:
Otras superficies, otros colores bajo pedido
Surface:
Angle connector: Plain / Powder coated
Assembly set: Zinc plated
| Cantidad por Paquete: | 10 piezas / 10 jconjuntos |
|---|---|
| Model: | Aluminio fundido a presión |
| Peso (g): | 95.0 |
| ECLASS 6.0: | 23360290 |
| ECLASS 7.0: | 23360290 |
| ECLASS 8.0: | 23360290 |
| ECLASS 9.0: | 23360290 |
| ECLASS 10.0: | 23360290 |
| ECLASS 11.0: | 23360290 |
| ECLASS 12.0: | 23360290 |
| ECLASS 13.0: | 23360290 |
| Número de Arancel Aduanero de Exportación: | 76169990 |
| Numero de ERP: | 125901 |
| Old Part #: | 093WS30145N0810RS01 |
