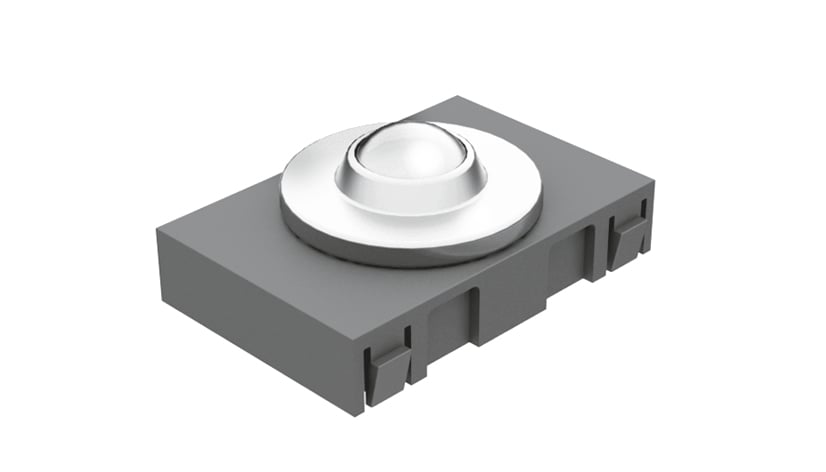

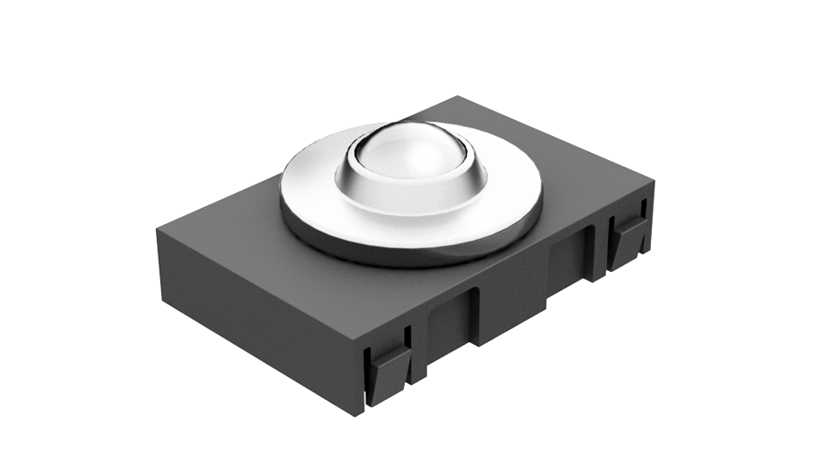

Ball Insert D24

Información sobre el producto "Ball Insert D24"

Países de Entrega:
En todo el mundo

Description:
Low-wear, low friction ball caster for flexible movements in two directions, for example at track switches and material locks; for roller tracks AL, can also be used in panels, e.g. on table tops; version with attachement clip prevents rotation of the ball housing

Material:
Ball: Steel, stainless steel
Ball housing: Steel
Housing Attachment Clip: Steel

Especiales:
Otros materiales, otras superficies bajo pedido

Surface:
Ball steel: Chrome plated / Ball stainless steel: Plain
Ball housing: Chrome plated
Housing Attachment Clip: Zinc plated

Tip:
Compatible Cage for Ball / Bush Insert D24 see 062ACD2491ESD.50;

Zolltarifnummer:
83022000900
Cantidad por Paquete: 10 piezas
Model: For roller tracks AL
Peso (g): 65.4

Variantes

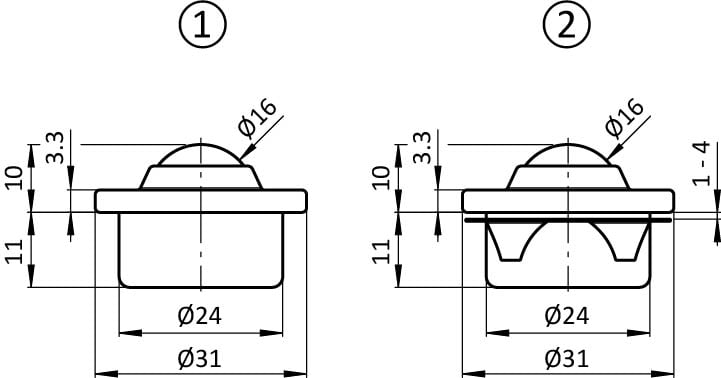

ID de producto ESD Version Fig. Carga Máxima (N)
062AQ Steel ball 600
062AQS01 ESD Steel ball, with Housing Attachment Clip
062AQS02 Stainless steel ball 600
062AQS03 Stainless steel ball, with Housing Attachment Clip
