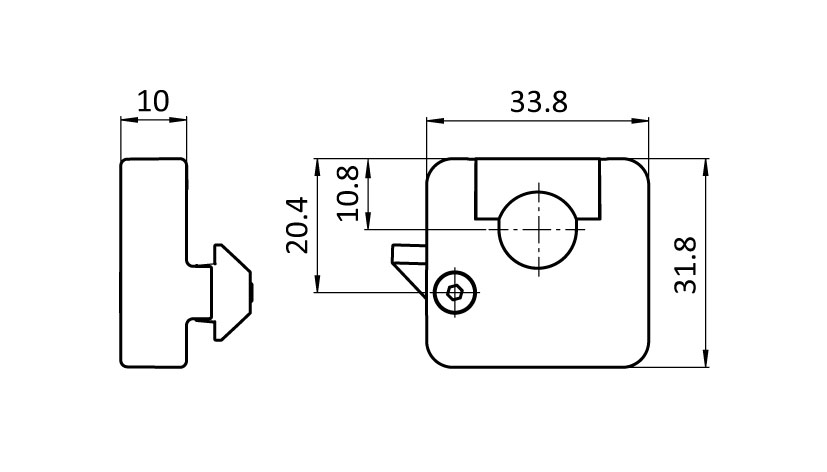

Bearing block for support roller I D32 (Set)

Información sobre el producto "Bearing block for support roller I D32 (Set)"

Color:
Housing: Black

Países de Entrega:
En todo el mundo

Description:

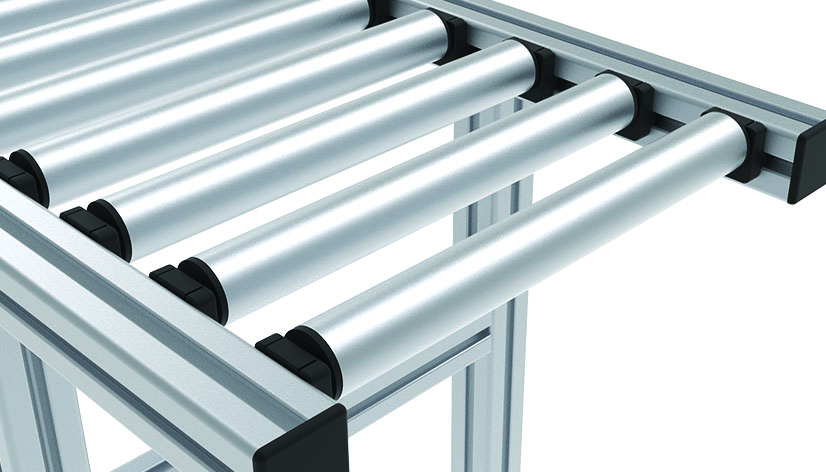

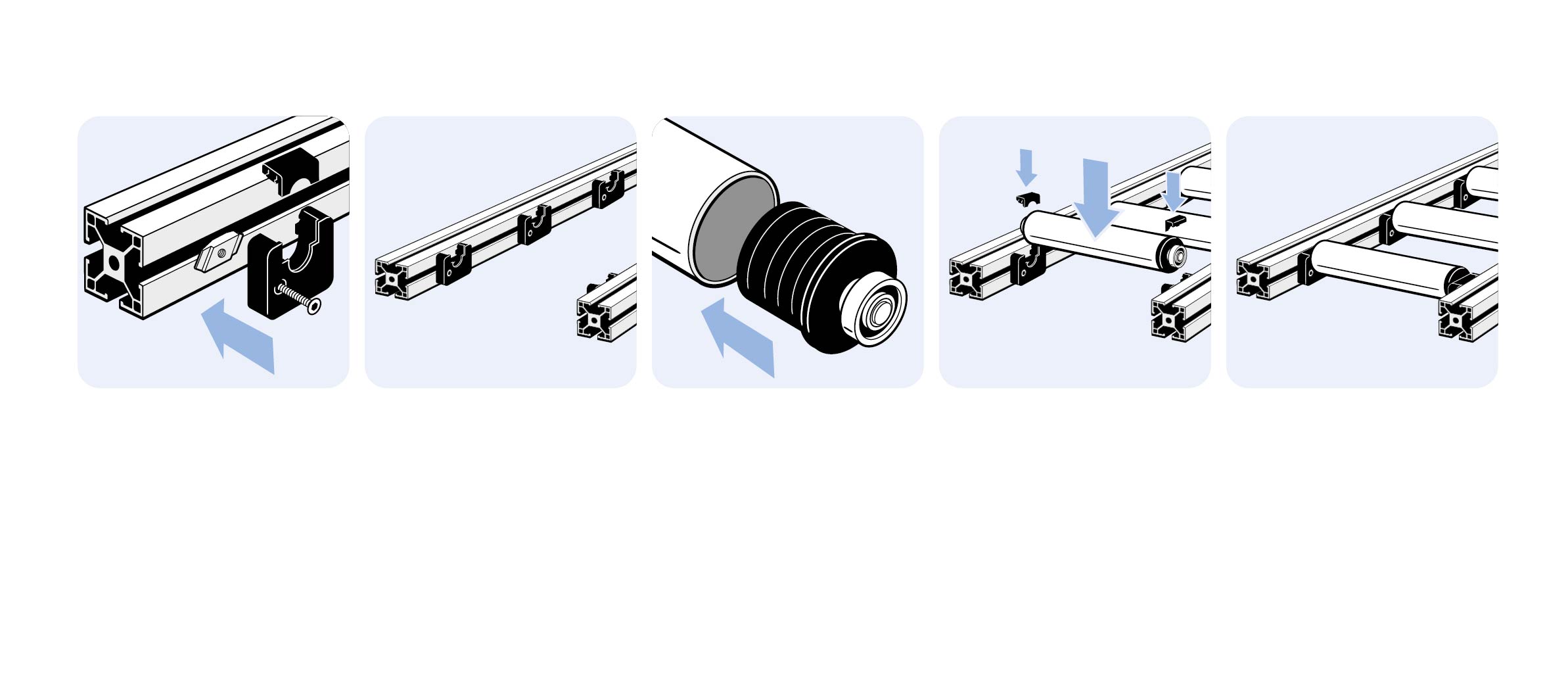

To engage the bearings of a support roller I D32, mounting sideways in the slot 8 of the aluminum profile

Material:
Housing: Plastic PA, glass fiber reinforced
Screw: Steel
Rhombus nut: Zinc die-cast

Set:
2 Bearing blocks

Surface:
Screw: Zinc plated
Rhombus nut: Zinc plated

Tip:
Compatible Bearing for Support Roller I D32 see 062CIL11K
Model: Plástico PA
Cantidad por Paquete: 1 juego
Número de Arancel Aduanero de Exportación: 39239000
Peso (g): 30.0
ECLASS 6.0: 36129290
ECLASS 7.0: 36129290
ECLASS 8.0: 36129290
ECLASS 9.0: 36129290
ECLASS 10.0: 36129290
ECLASS 11.0: 36123692
ECLASS 12.0: 36123692
ECLASS 13.0: 36123692
Numero de ERP: 147138
Zolltarifnummer: 39239000000

Variantes

Número de producto Ranura N (mm) Profile
062CIAK 8 I
