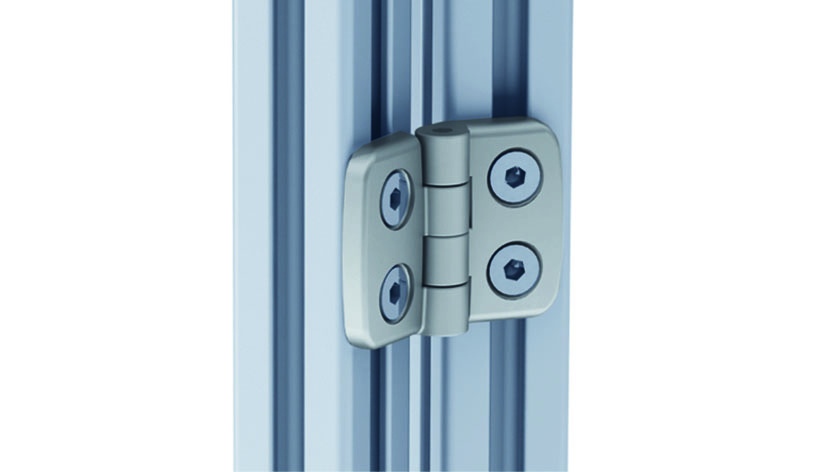

Bisagra combinada de aluminio fundido a presión 20 MINI, no desmontable, color aluminio

Descripción:
To hinge panels or aluminum profiles
Material:
Wings: Aluminum die-cast
Pin: Stainless steel

Surface:
Wings: Powder coated
Pin: Plain

Color:
Wing: Alu color

PFA_Fastening:
Por delante, con tornillos avellanados M4

Países de Entrega:
En todo el mundo
Cantidad por paquete: 10 piezas
Model: No desmontable
Peso (g): 14.0
Numero de ERP: 136407

Variantes

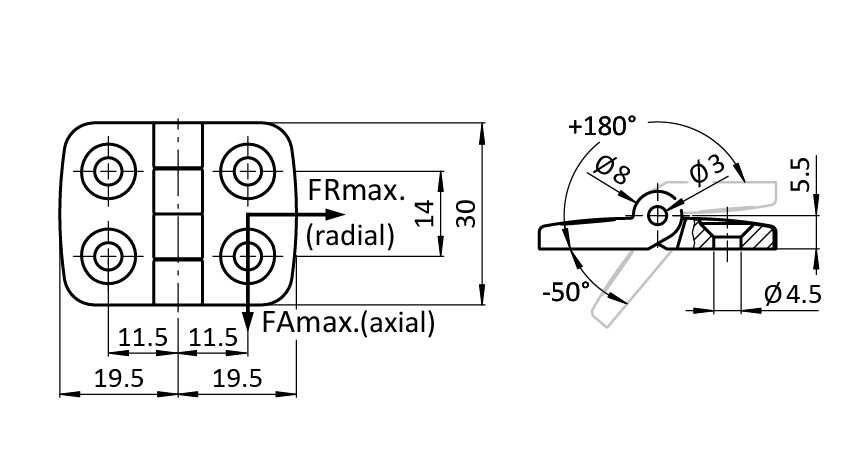

Número de producto Version Combinación FAmax (N) FRmax (N) CAD
No desmontable 20 / 20 215 275

Clasificación

ECLASS 6.0
23219090
ECLASS 7.0
23219090
ECLASS 8.0
23219090
ECLASS 9.0
23219090
ECLASS 10.0
23219090
ECLASS 11.0
23219090
ECLASS 12.0
23219090
ECLASS 13.0
23219090
Zolltarifnummer
83021000900
Número de Arancel Aduanero de Exportación
83021000

Certificados

Tags

Profile Type Profile Type B, Profile Type I
Profile Form T-slot Profiles
Application Area Machinery & Plant Engineering
