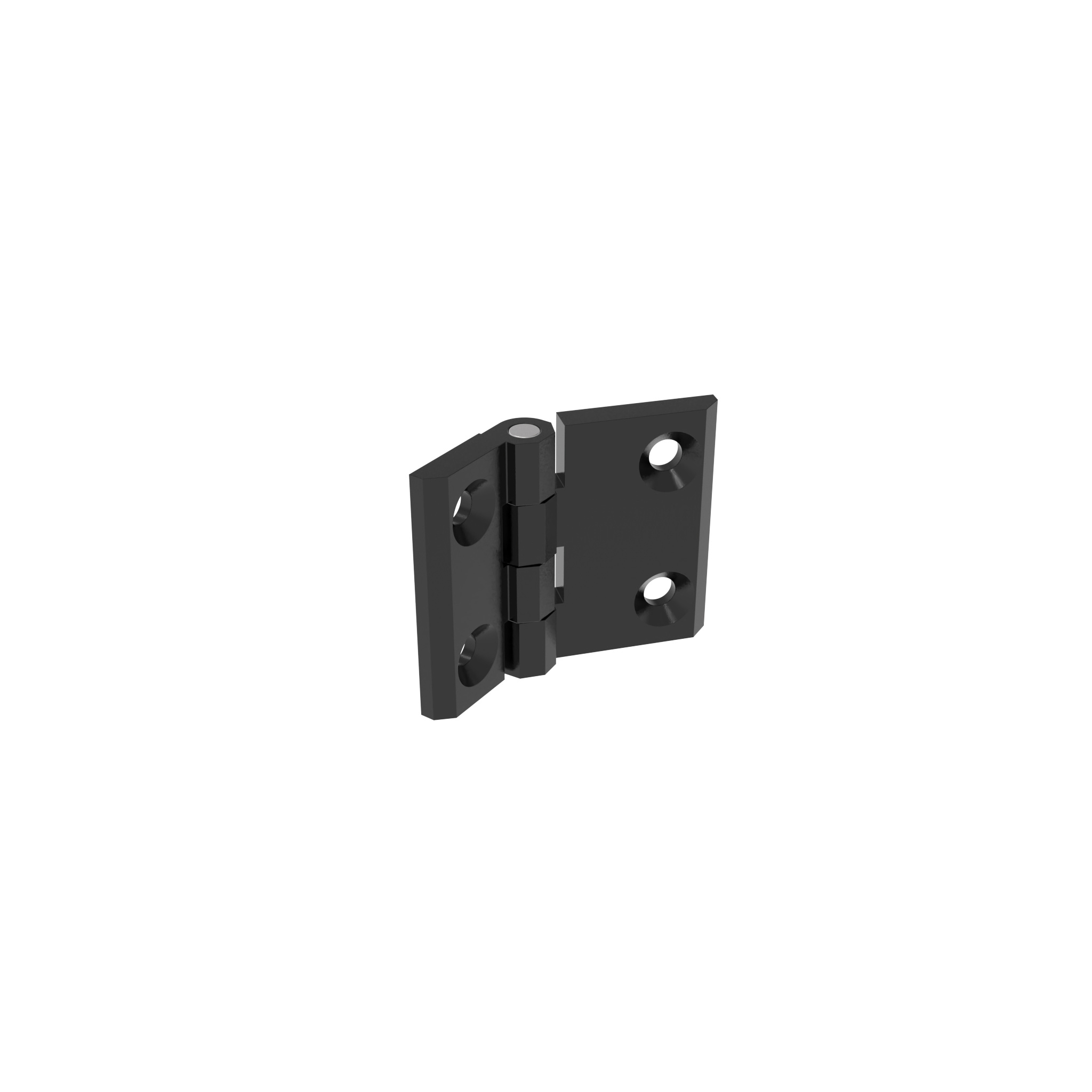

Bisagra de metálica 50 x 63

Descripción:
Sturdy hinge for right and left hand application
Material:
Wings: Zinc die-cast
Axle: Stainless steel

Superficie:
Polvo cubierto

Color:
Negro

PFA_Fastening:
Por delante, con tornillos avellanados

Países de Entrega:
En todo el mundo
Cantidad por paquete: 10 piezas
Model: Zinc fundido a presión, no desmontable
Peso (g): 106.0
Numero de ERP: 101500

Variantes

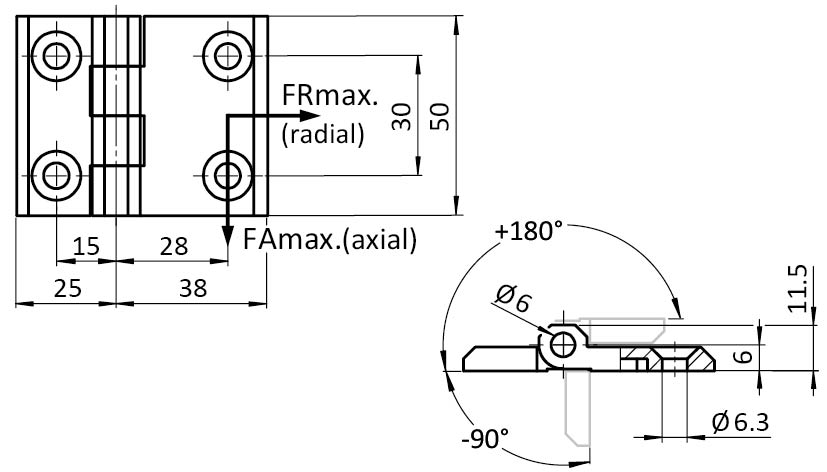

Número de producto FAmax (N) FRmax (N) CAD
1400 2200

Clasificación

ECLASS 6.0
23219090
ECLASS 7.0
23219090
ECLASS 8.0
23219090
ECLASS 9.0
23219090
ECLASS 10.0
23219090
ECLASS 11.0
23219090
ECLASS 12.0
23219090
ECLASS 13.0
23219090
Zolltarifnummer
83021000900
Número de Arancel Aduanero de Exportación
83021000

Certificados

Tags

Profile Type Profile Type B, Profile Type I
Profile Form T-slot Profiles
Application Area Machinery & Plant Engineering
