Bolt Connector, Slot 10

Información sobre el producto "Bolt Connector, Slot 10"

Países de Entrega:
En todo el mundo

Description:

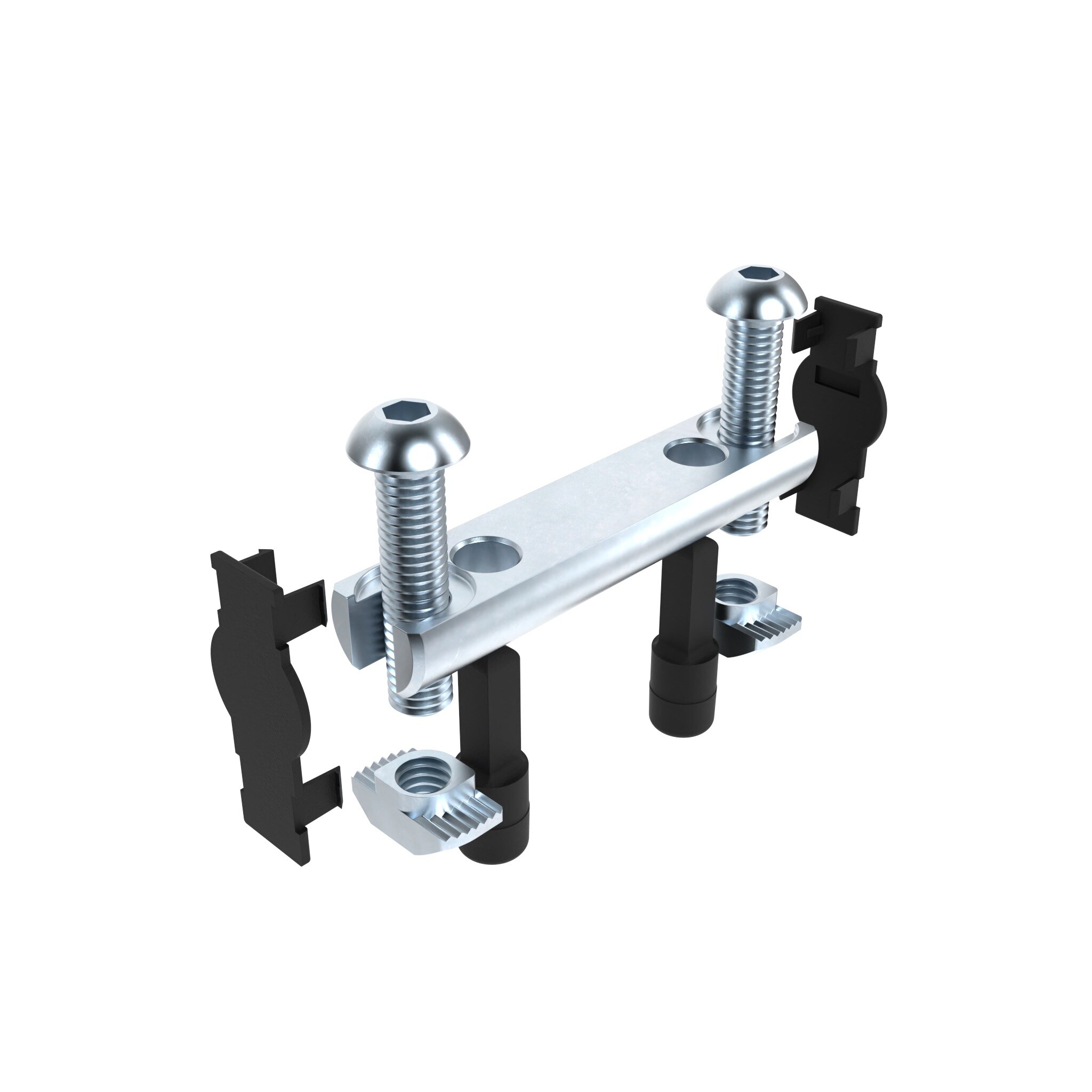

To connect two aluminum profiles at right angles; a 17 mm through-hole must be drilled through the side of one profile

Material:
Base element: Steel
Screws: Steel
Fixing bolts: Plastic PA, glass fiber reinforced
Screw cover: Plastic PA, glass fiber reinforced

Superficie:
Galvanizado

Zolltarifnummer:
73269098900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Cantidad por Paquete: 10 piezas
Model: Slot 10
Peso (g): 121.0

Variantes

ID de producto Profile B (mm) A (mm)
099C1001 B 83.0 97.0
099C401 B 23.0 37.0
099C451 B 28.0 42.0
099C501 B 33.0 47.0
099C601 B 43.0 57.0
099C801 B 63.0 77.0
099C901 B 73.0 87.0

Descargas CAD

Certificados
