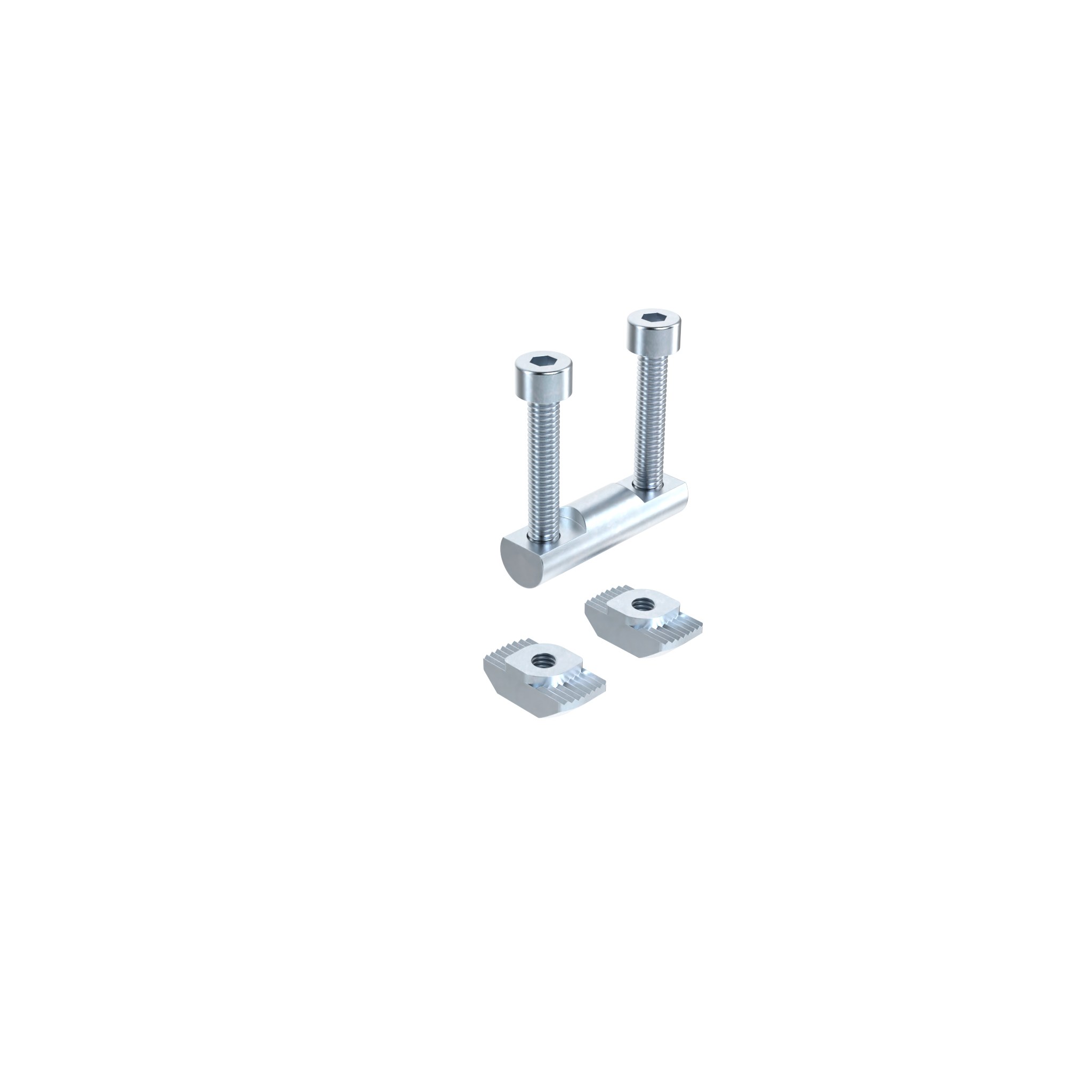

Bolt Connector, Slot 8 / D=8.2

Información sobre el producto "Bolt Connector, Slot 8 / D=8.2"

Color:
Fixing bolts: Black
Screw cover: Black

Países de Entrega:
En todo el mundo

Description:

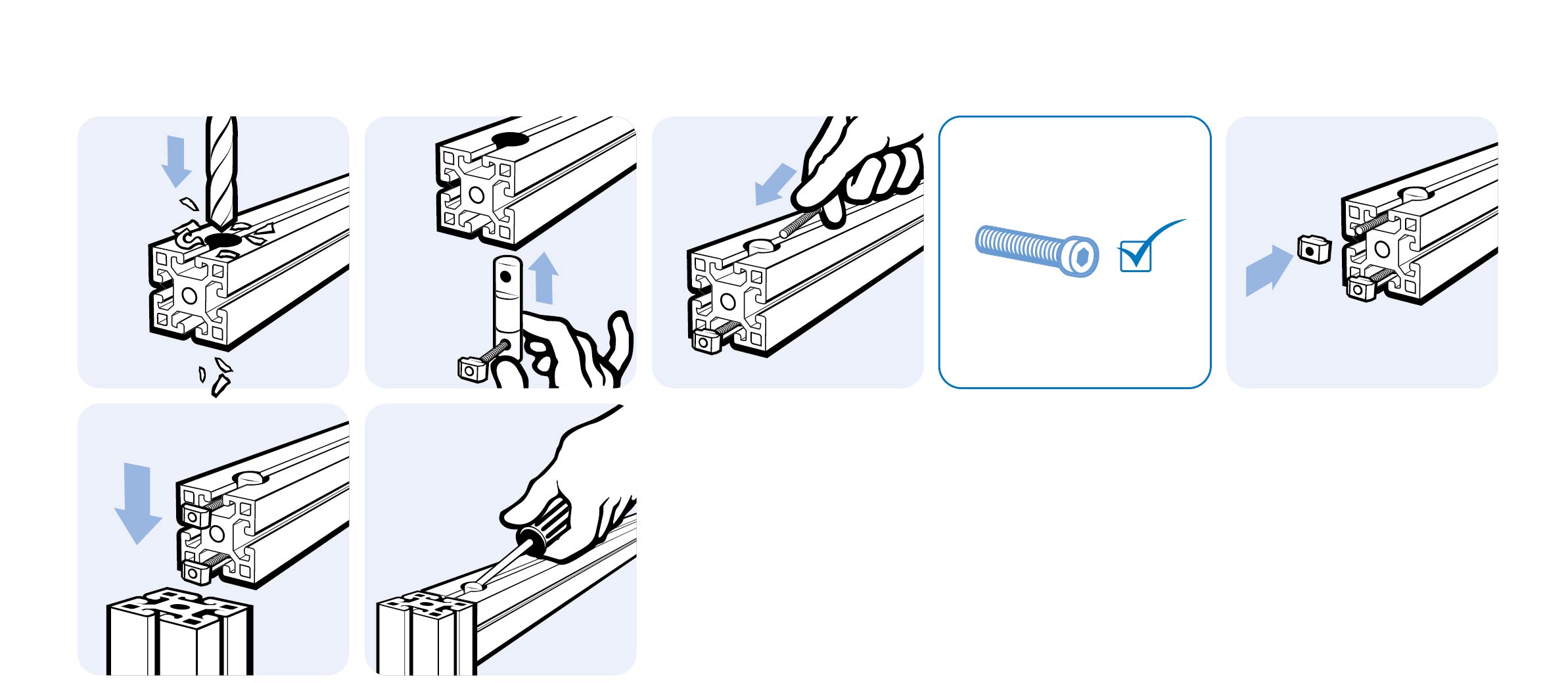

To connect two aluminum profiles at right angles; a 8.2 mm through-hole must be drilled through the side of one profile

Material:
Bolts and screws: Steel
Fixing bolts: Plastic PA, glass fiber reinforced
Screw cover: Plastic PA, glass fiber reinforced

Surface:
Bolts and screws: Zinc plated

Zolltarifnummer:
73269098900
Cantidad por Paquete: 10 piezas
Model: Slot 8
Peso (g): 21.5

Variantes

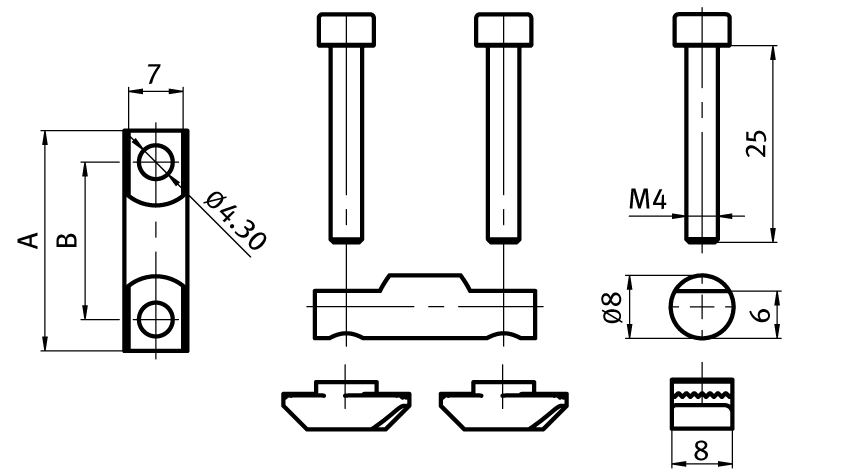

ID de producto Profile A (mm) B (mm)
099C301 B 28.0 20.0
