Bottle Holder FX for Square Holes 9 x 9 (8.7 x 8.7)

Novedad

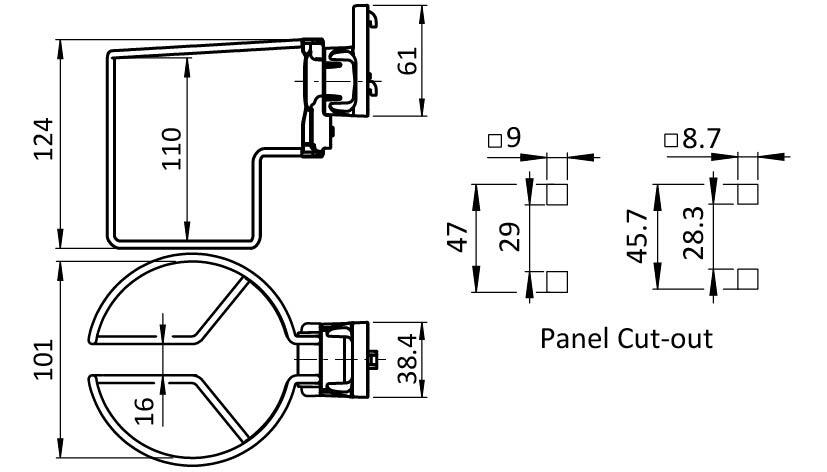

Bottle Holder FX for Square Holes 9 x 9 (8.7 x 8.7) – plano técnico

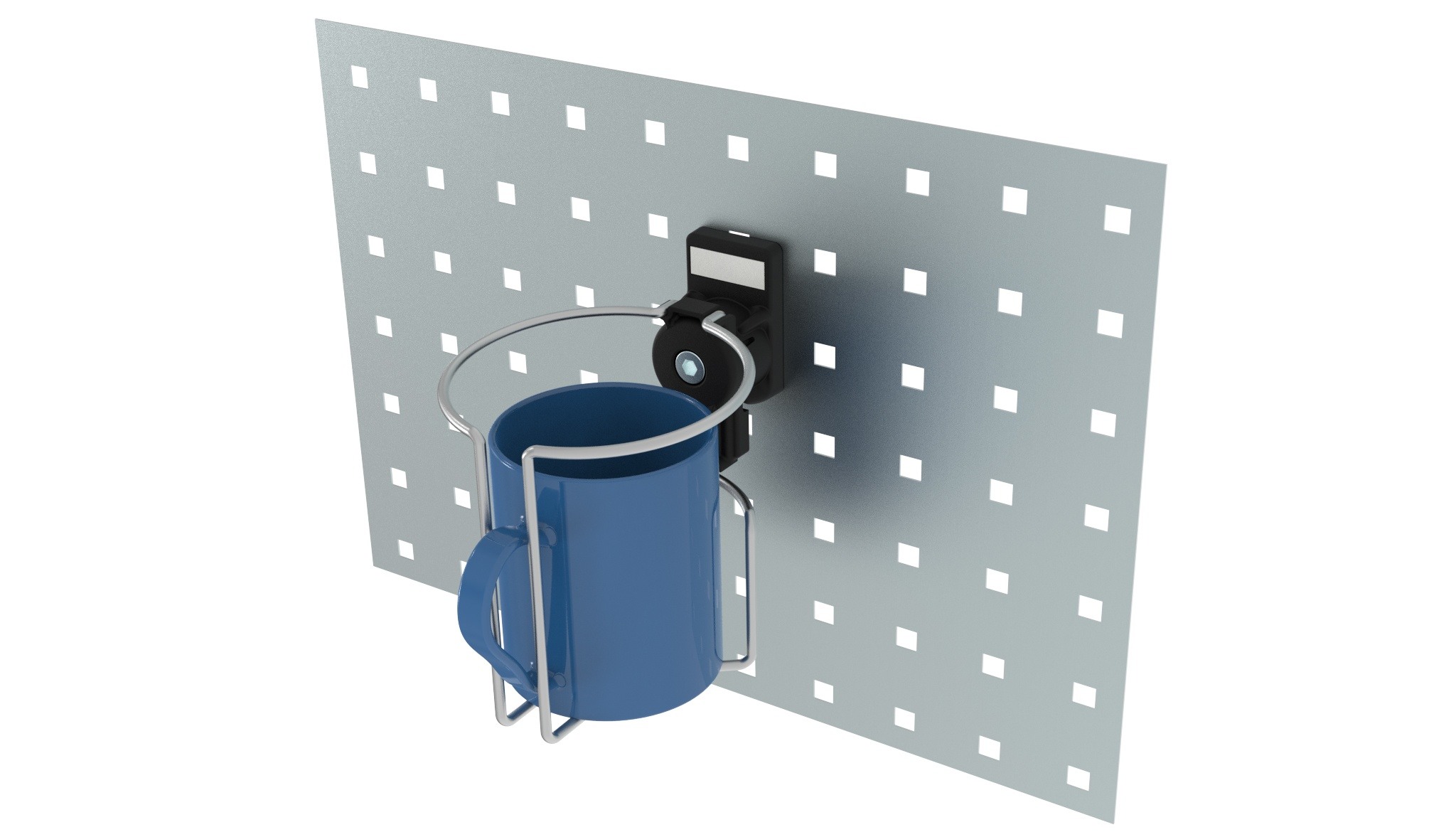

Bottle Holder FX for Square Holes 9 x 9 (8.7 x 8.7) – ejemplo de aplicación

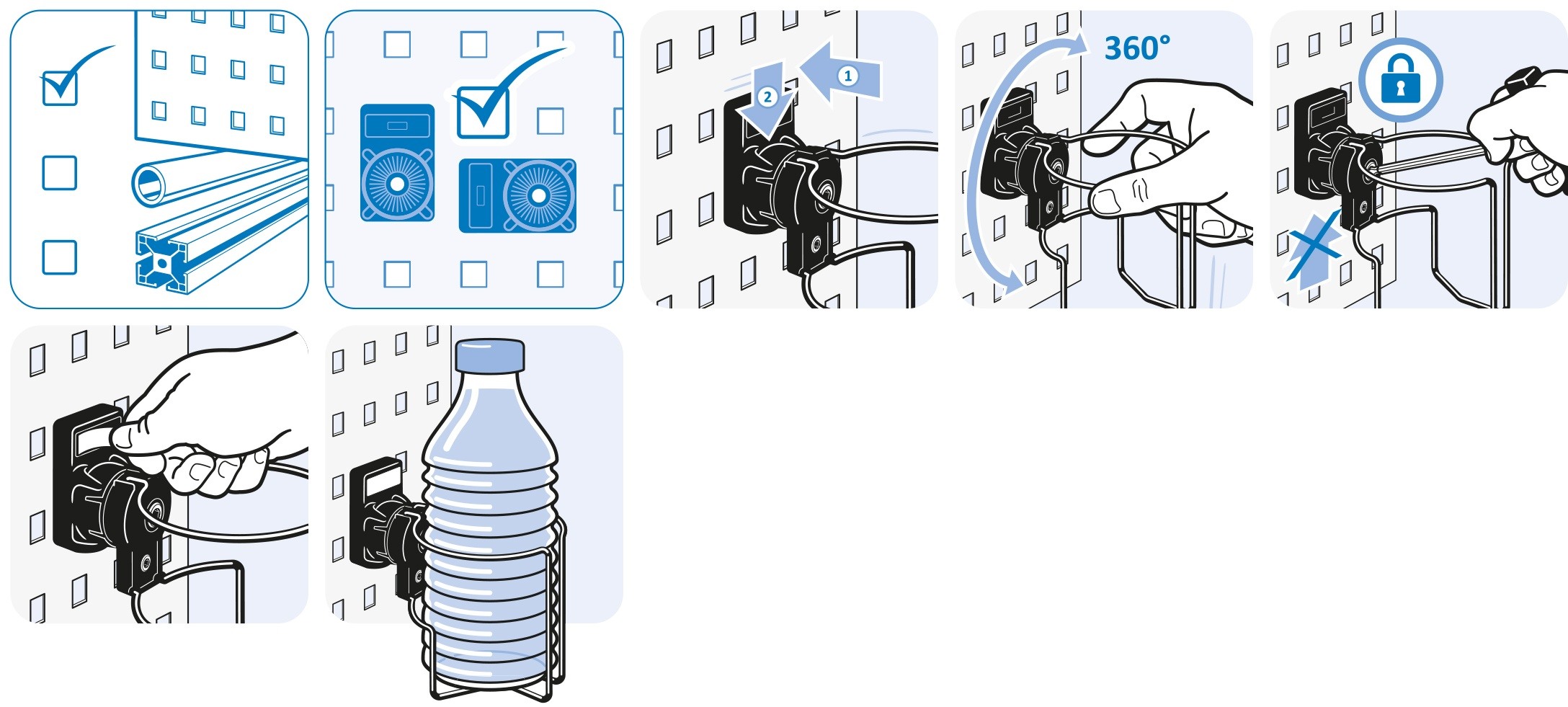

Bottle Holder FX for Square Holes 9 x 9 (8.7 x 8.7) – gráfico de montaje

0,00 €

Color

Negro

Número de producto: 6TP38D100S01

Cantidad por paquete: 1 pieza

Información sobre el producto "Bottle Holder FX for Square Holes 9 x 9 (8.7 x 8.7)"

Color:
Rear mounting holder: Black
Front locking holder: Black

Países de Entrega:
En todo el mundo

Description:
Ready to use bottle holder, 360° turnable, for perforated metals up to 1.4 mm thick;
To organize workstations, with labeling area for standard labels

Material:
Rear mounting holder: Plastic PA, carbon fiber reinforced
Front locking holder: Plastic PA, glass ball reinforced
Wire: Stainless steel SS304
Spring: Spring steel SS313
Screw: Steel
Nut: Steel

Specials:
Other colors on request,
For other sheet metal thicknesses on request

Surface:
Screw: Zinc plated
Nut: Zinc plated

Tip:
For profiles 40 / 45, slot 8 / 10 see 6TM840ND100S01
For round tubes D28 / D30 see 6TM8D283D100S01
