Broom Holder FLEX FX 20 - 30 for Square Holes 9 x 9 (8.7 x 8.7)
0,00 €

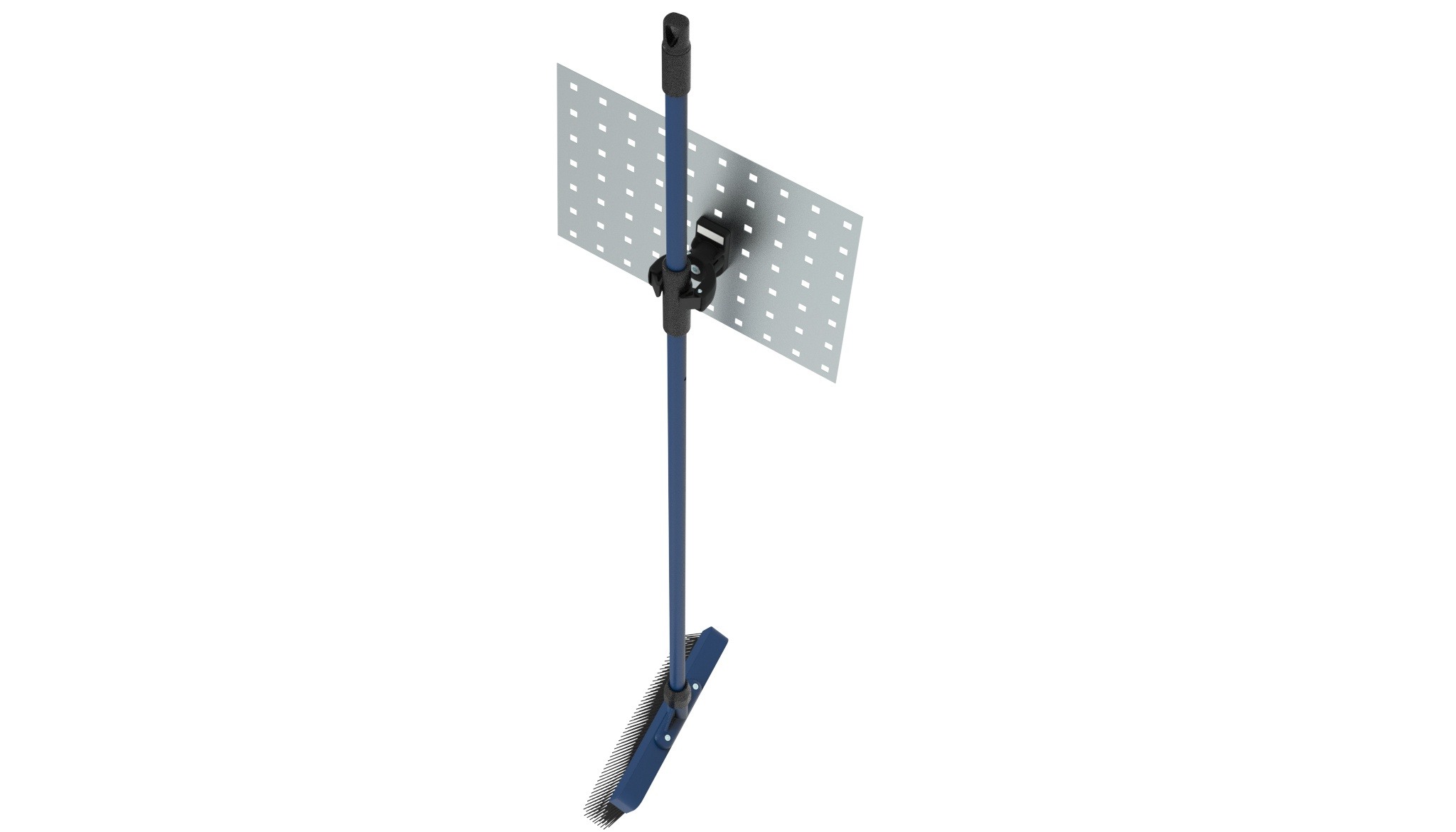

Ready to use broom holder to hang up tools with Ø 20 up to 30 mm diameter, 360° turnable, for perforated metals up to 1.4 mm thick;
To organize workstations, with labeling area for standard labels
Holder: Plastic PA, carbon fiber reinforced
Broom holder: Plastic PA, glass ball reinforced
Retaining strap FLEX: Plastic TPE
Bushings: Steel
Screws for retaining strap: Steel
Spring: Spring steel SS313
Screw: Steel
Nut: Steel
Surface:
Screw: Zinc plated
Nut: Zinc plated
Color:
Holder: Black
Broom holder: Black
Retaining strap: Black
Tip:
For profiles 40 / 45, slot 8 / 10 see 6TM840NX2030S01
For round tubes D28 / D30 see 6TM8D283X2030S01
Specials:
Other colors on request,
For other sheet metal thicknesses on request
Países de Entrega:
En todo el mundo
| Cantidad por paquete: | 1 pieza |
|---|---|
| Model: | Pre-ensamblado |
| Peso (g): | 99.0 |
| Numero de ERP: | 160026 |
Retratos de productos
Clasificación
- ECLASS 6.0
- 23369290
- ECLASS 7.0
- 23369290
- ECLASS 8.0
- 23369290
- ECLASS 9.0
- 23369290
- ECLASS 10.0
- 23369290
- ECLASS 11.0
- 23360192
- ECLASS 12.0
- 23360192
- ECLASS 13.0
- 23360192
- Zolltarifnummer
- 39269097900
- Número de Arancel Aduanero de Exportación
- 39269097
Certificados
Accesorios adecuados
Description:Ready to use broom holder to hang up tools with Ø 20 up to 30 mm diameter, 360° turnable, for aluminum profiles; To organize workstationsMaterial:Broom holder: Plastic PA, glass ball reinforced Retaining strap FLEX: Plastic TPE Bushings: Steel Screws for retaining strap: Steel Spring: Spring steel SS313 Screw: Steel Nut: Steel Centering piece: Plastic PA, glass fiber reinforcedSurface:Screw: Zinc plated Nut: Zinc platedColor:Holder: Black Retaining strap: Black Centering piece: BlackTip:For round tubes D28 / D30 see 6TM8D283X2030S01Especiales:Otros colores bajo pedidoPaíses de Entrega:En todo el mundo
Description:Ready to use broom holder to hang up tools with Ø 20 up to 30 mm diameter, 360° turnable, for tubes or tubular frame profiles; To organize workstationsMaterial:Broom holder: Plastic PA, glass ball reinforced Retaining strap FLEX: Plastic TPE Bushings: Steel Screws for retaining strap: Steel Spring: Spring steel SS313 Screw: Steel Nut: SteelSurface:Screw: Zinc plated Nut: Zinc platedColor:Holder: Black Retaining strap: BlackEspeciales:Otros colores bajo pedidoPaíses de Entrega:En todo el mundo
