Central Connector I 90° +/-45°

Información sobre el producto "Central Connector I 90° +/-45°"

Países de Entrega:
En todo el mundo

Description:

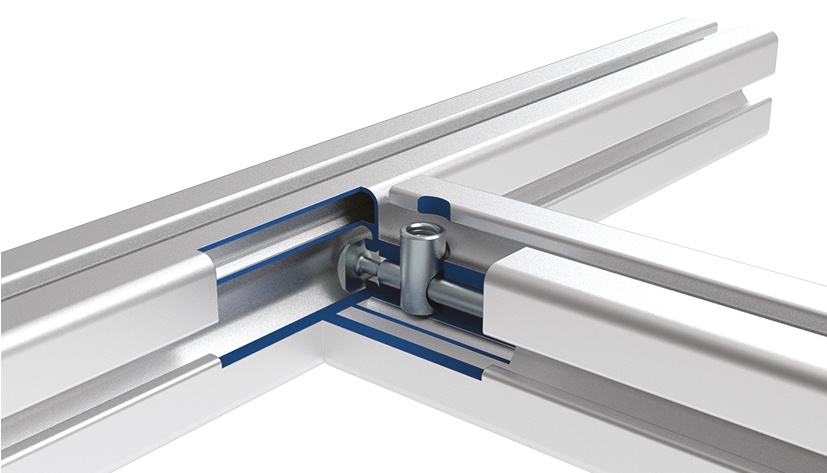

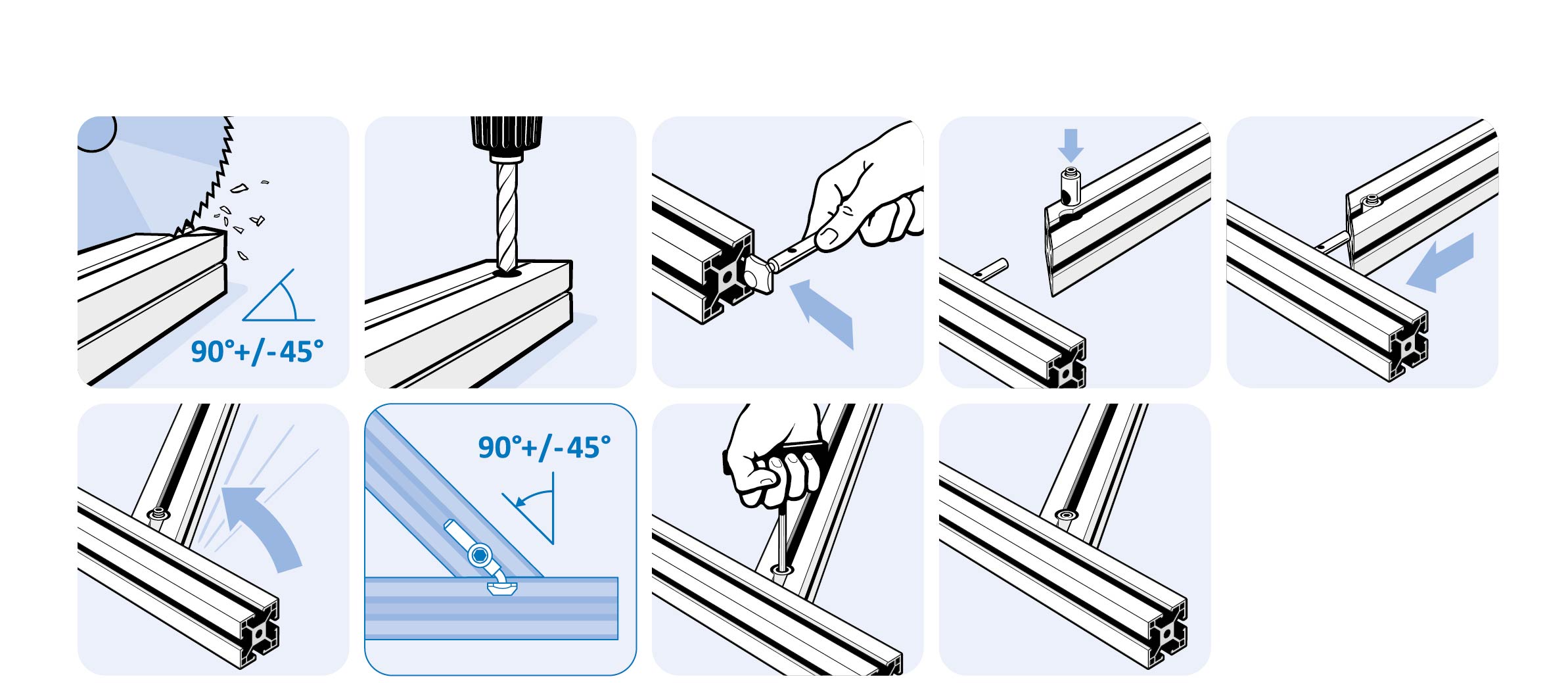

End-to-end connection of two aluminum profiles of the same type; a blind or through hole must be drilled before the assembly; bendable from 45° to 135°

Material:
Tie-rod: Stainless steel
Bushes: Steel

Surface:
Tie-rod: Plain
Bushes: Zinc plated

Zolltarifnummer:
73269098900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Cantidad por Paquete: 10 piezas
Model: Acero / acero inoxidable
Peso (g): 24.6

Variantes

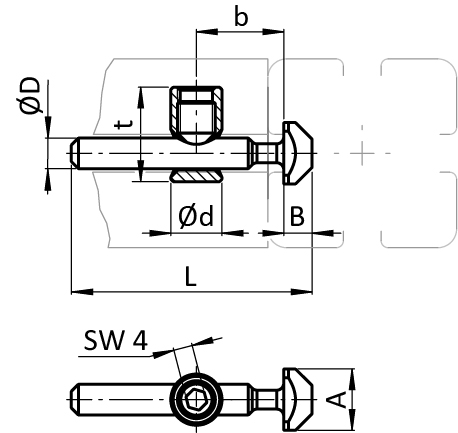

ID de producto b (mm) d (mm) D (mm) Profile SW (mm) A (mm) B (mm) t (mm) Ranura N (mm) L (mm)
099B0811S03 18.5 11.0 6.5 I 4 13.0 6.0 20.0 8 51.0
