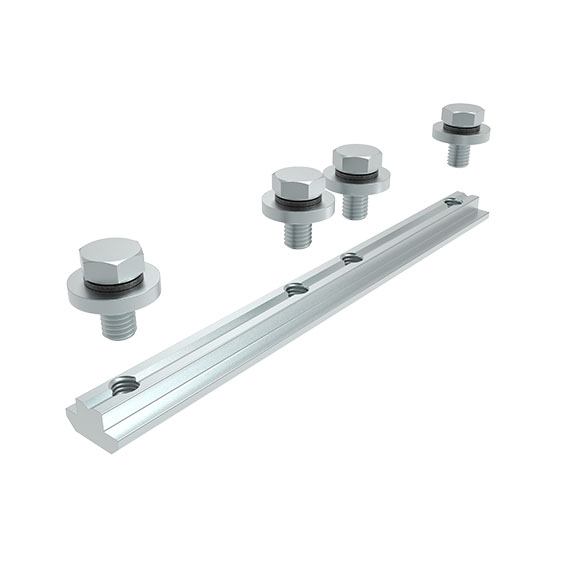

Connecting Strip 180 B, Slot 10 (Set)

Descripción:

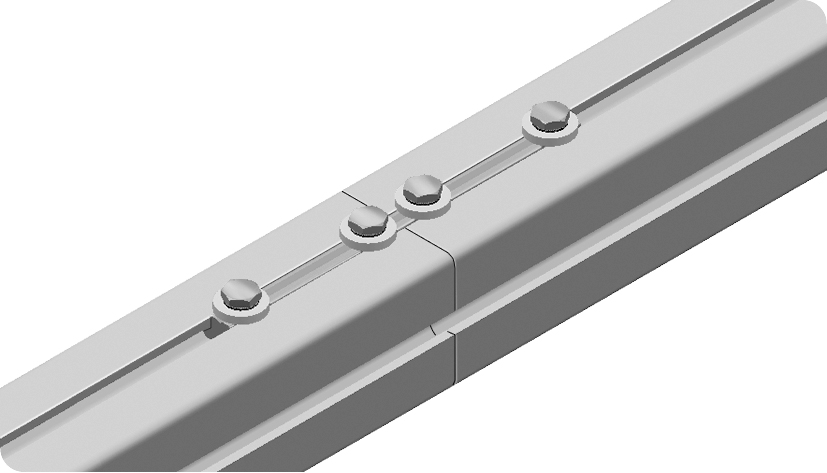

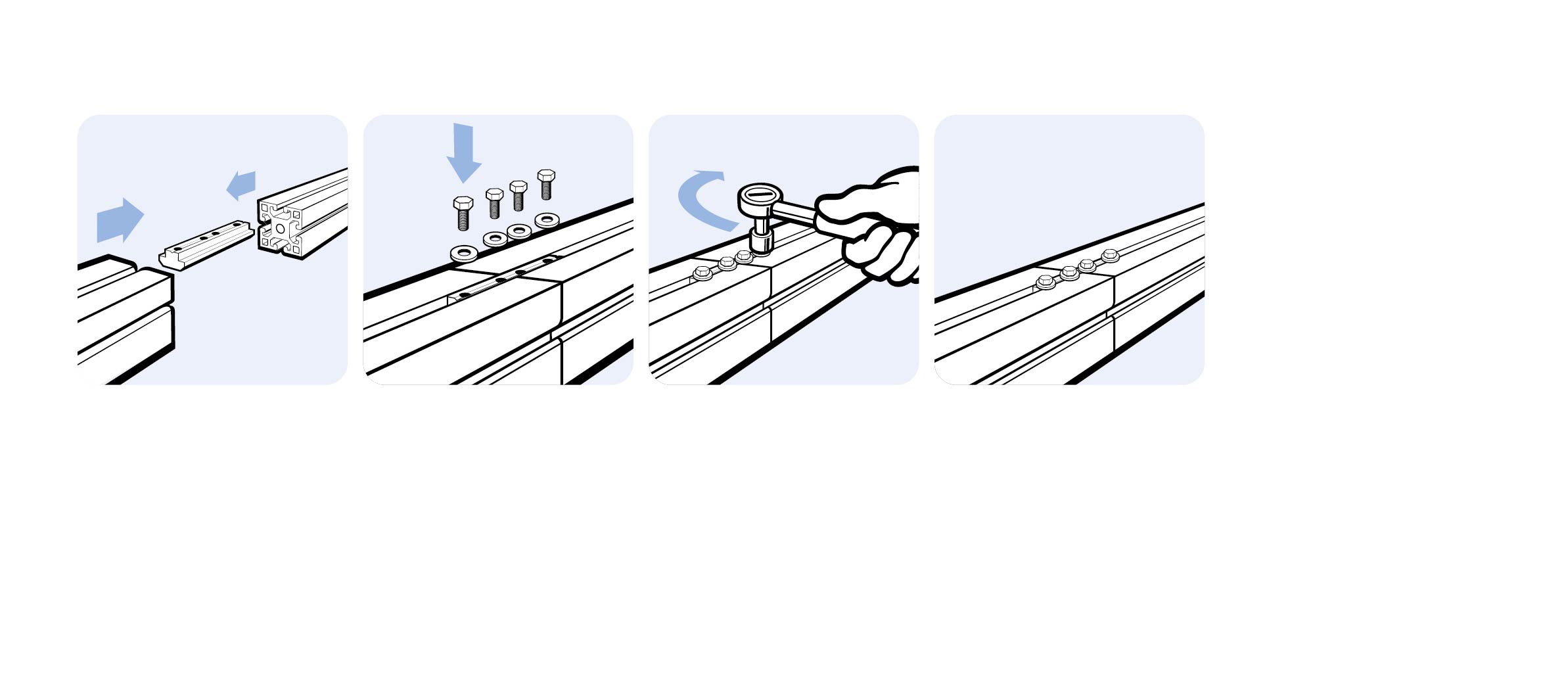

End-to-end connection of two aluminum profiles without machining
Material:
Acero

Superficie:
Galvanizado

Set:
1 connecting strip 180, slot 10,
4 screws DIN EN ISO 4017 (DIN 933) - M8 x 16,
4 washers 8-FSt,
4 washers DIN 7349 - 8.4

Países de Entrega:
En todo el mundo
Cantidad por paquete: 10 piezas
Model: Galvanizado / liso
Peso (g): 264.0
Numero de ERP: 112570

Variantes

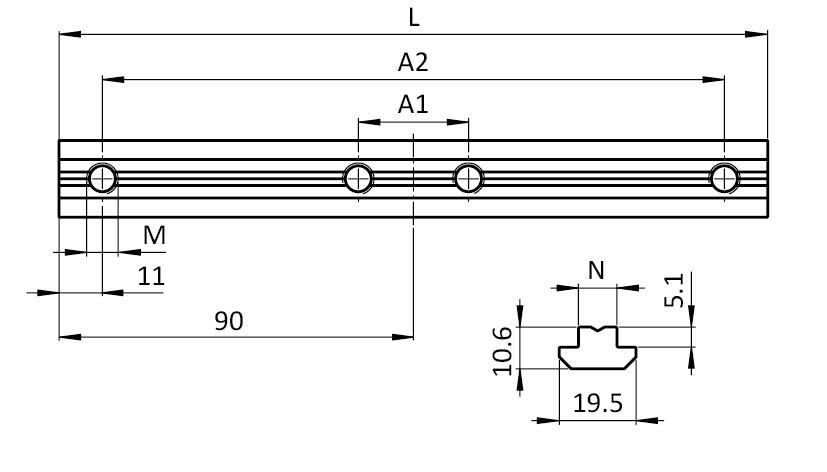

Número de producto Profile L (mm) M Ranura N (mm) A1 (mm) A2 (mm) CAD
B 180.0 M8 10 28.0 158.0

Clasificación

ECLASS 6.0
23360290
ECLASS 7.0
23360290
ECLASS 8.0
23360290
ECLASS 9.0
23360290
ECLASS 10.0
23360290
ECLASS 11.0
23360290
ECLASS 12.0
23360290
ECLASS 13.0
23360290
Zolltarifnummer
73269098900
Número de Arancel Aduanero de Exportación
73269098

Certificados

Tags

Profile Type Profile Type B
Slot Size Slot size 10
Profile Form T-slot Profiles
