Connecting Strip 50 B, Slot 8

Información sobre el producto "Connecting Strip 50 B, Slot 8"

Países de Entrega:
En todo el mundo

Description:

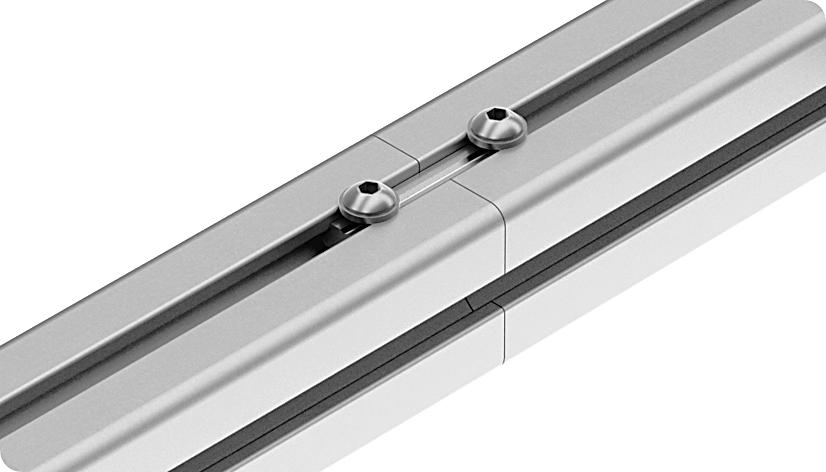

End-to-end connection of two aluminum profiles without machining

Material:
Acero

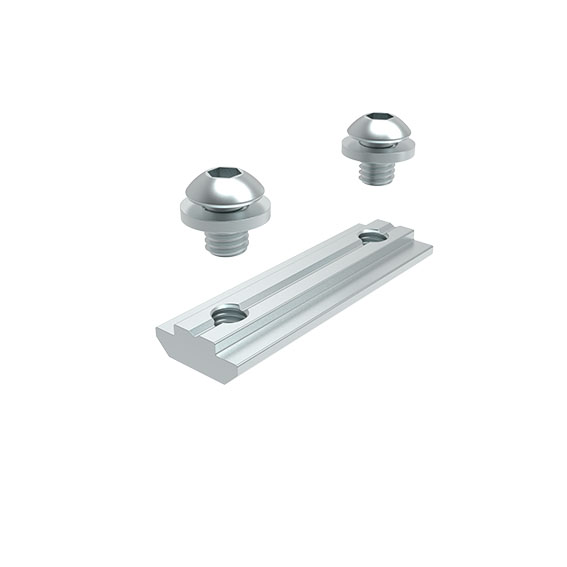

Set 1:
1 connecting strip 50, slot 8,
2 screws ISO 7380-1 head form A - M6 x 8,
2 washers DIN EN ISO 7089 (DIN 125)

Set 2:
2 connecting strip 50, slot 8,
2 hexagon socket set screws DIN 913 - M6 x 10

Superficie:
Galvanizado

Zolltarifnummer:
73181900900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Cantidad por Paquete: 10 piezas
Model: Galvanizado / liso
Peso (g): 35.0

Variantes

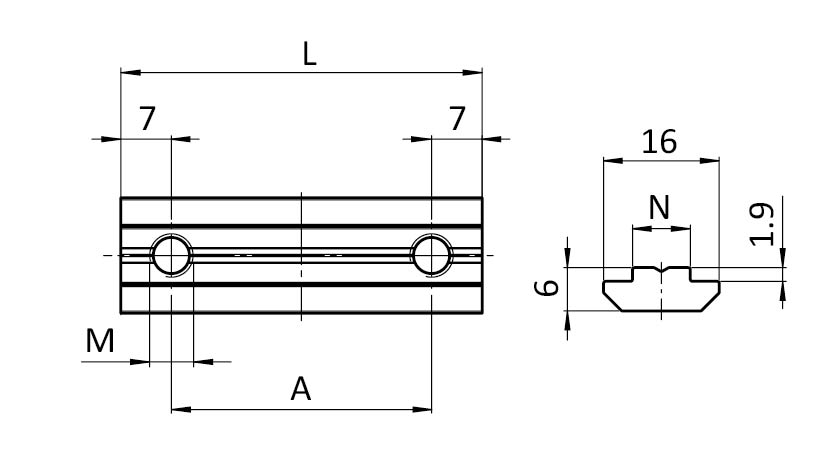

ID de producto Profile Conjunto L (mm) A (mm) M Ranura N (mm)
096010S05 B Conjunto 2 50.0 36.0 M6 8
096010S46 B Conjunto 1 50.0 36.0 M6 8

Descargas CAD

Certificados
