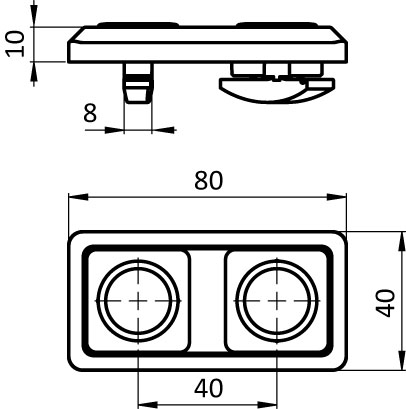

Connection Plate I40 M Length/Cross, Rectangular 2 Hole, 1 Slot (Set)

Información sobre el producto "Connection Plate I40 M Length/Cross, Rectangular 2 Hole, 1 Slot (Set)"

Color:
Connection plate: Alu color
Cover Caps: Gray ≈ RAL 7042

Países de Entrega:
En todo el mundo

Description:

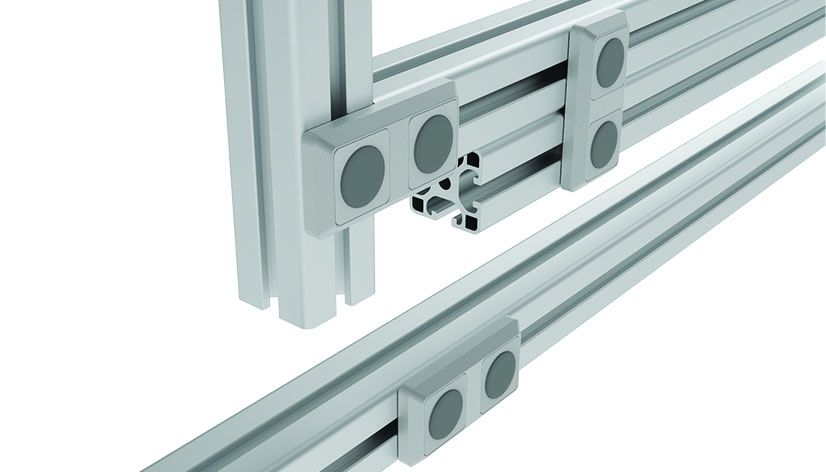

To connect two aluminum profiles quickly at right angle or parallel, direct inserting into the profile slot thanks to lengthwise or crosswise positioning of the pre-assembled magnet rhombus screws and counter sunk nuts with the 90° turnable inserts; the open screwing holes of the connection plate can be closed with the cover caps

Material:
Connection plate: Aluminum die-cast
Cover caps: Plastic PA, glass fiber reinforced
Magnet rhombus screws: Steel
Countersunk nuts: Steel

Set:
1 connection plate with pre-assembled magnet rhombus screws and counter sunk nuts in 90° turnable inserts
2 cover caps

Especiales:
Otras superficies, otros colores bajo pedido

Surface:
Connection plate: Powder coated
Magnet rhombus screws: Zinc plated
Countersunk nuts: Zinc plated

Zolltarifnummer:
76169990990
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Cantidad por Paquete: 10 conjuntos
Model: Aluminio fundido a presión
Peso (g): 111.1

Variantes

ID de producto Profile Ranura N (mm)
093VM4080LN08 I 8
