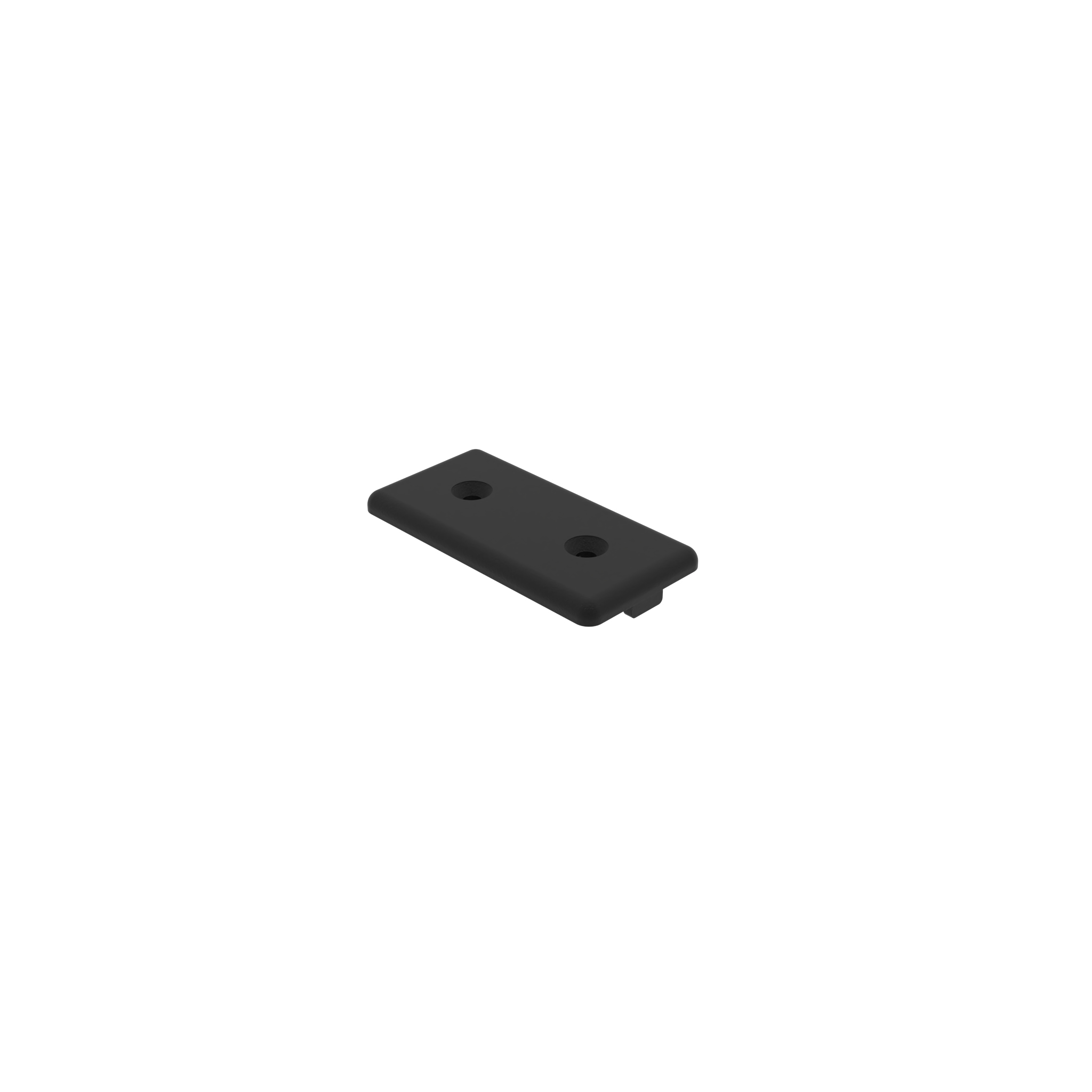

Cover Cap Fixable

Información sobre el producto "Cover Cap Fixable"

Color:
Negro

Países de Entrega:
En todo el mundo

Description:
Screw-on cover cap for the end of the aluminum profile

Material:
Plástico PA, reforzado con fibra de vidrio

Especiales:
Descarga electrostática ESD, otros tamaños, otros colores bajo pedido

Tip:
Compatible screw see 4DIN7991M0416M

Zolltarifnummer:
39269097900
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360192
(ECLASS 12.0): 23360192
(ECLASS 13.0): 23360192
Cantidad por Paquete: 10 / 50 / 100 piezas
Cantidad por Paquete (1): 100
Fastening: With screw DIN EN ISO 10642 (DIN 7991) - M4 x 16
Model: Plástico PA
Pack Quantity (Stück): 100
Peso (g): 7.6

Variantes

ID de producto R (mm) T (mm) Feature Tornillo D (mm) Dimensions A x B (mm)
091065 3.0 4.0 1 pin for core hole 1 tornillo 7.0 30 x 30
091066 3.0 4.0 2 Pins for core hole 2 tornillos 7.0 30 x 60
091067 4.0 4.0 1 pin for core hole 1 tornillo 7.0 40 x 40
091068 4.0 4.0 2 Pins for core hole 2 tornillos 7.0 40 x 80
091069 4.0 4.0 4 pins for core hole 4 tornillos 7.0 80 x 80
091070 3.0 4.0 1 pin for core hole 1 tornillo 10.5 45 x 45
091071 3.0 4.0 1 pin for core hole 1 tornillo 10.5 60 x 60
091073 3.0 4.0 2 Pins for core hole 2 tornillos 10.4 45 x 90
091074 3.0 4.0 4 pins for core hole 4 tornillos 10.4 90 x 90
