Cover Cap for 20 mm Modular Dimension

Información sobre el producto "Cover Cap for 20 mm Modular Dimension"

Color:
Negro, gris

Países de Entrega:
En todo el mundo

Description:
To cover the end of the profile

Material:
Plástico PA, reforzado con fibra de vidrio

Especiales:
Descarga electrostática ESD, otros tamaños, otros colores bajo pedido

Zolltarifnummer:
39269097900
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360192
(ECLASS 12.0): 23360192
(ECLASS 13.0): 23360192
Cantidad por Paquete: 100 piezas
Model: 20 mm modular dimension
Peso (g): 4.3

Variantes

ID de producto Color R (mm) Feature Dimensions A x B (mm) T (mm) Profile Ranura N (mm) ØD (mm)
091042 Negro 2.5 1 cross 20 x 20 4.0 B 6 5.4 (5.5)
091042S03 Gris ≈ RAL 7004 2.5 1 cross 20 x 20 4.0 B 6 5.4 (5.5)
091043 Negro 2.5 1 cross 20 x 20 4.0 I 5 4.5 (4.3)
091050 Negro 2.5 2 crosses 20 x 40 4.0 I 5 4.5 (4.3)
091125 Negro 2.0 2 crosses 10 x 20 3.0 I 5 3.4 (3.3)
091125S01 Gris ≈ RAL 7042 2.0 2 crosses 10 x 20 3.0 I 5 3.4 (3.3)
091180 Negro 2.0 New version, 1 pin 20 x 20 2.5 I 5 4.5 (4.3)
091180S02 Gris ≈ RAL 7042 2.0 New version, 1 pin 20 x 20 2.5 I 5 4.5 (4.3)
091181 Negro 2.0 New version, 2 crosses 20 x 40 2.5 I 5 4.5 (4.3)
091181S02 Gris ≈ RAL 7042 2.0 New version, 2 crosses 20 x 40 2.5 I 5 4.5 (4.3)

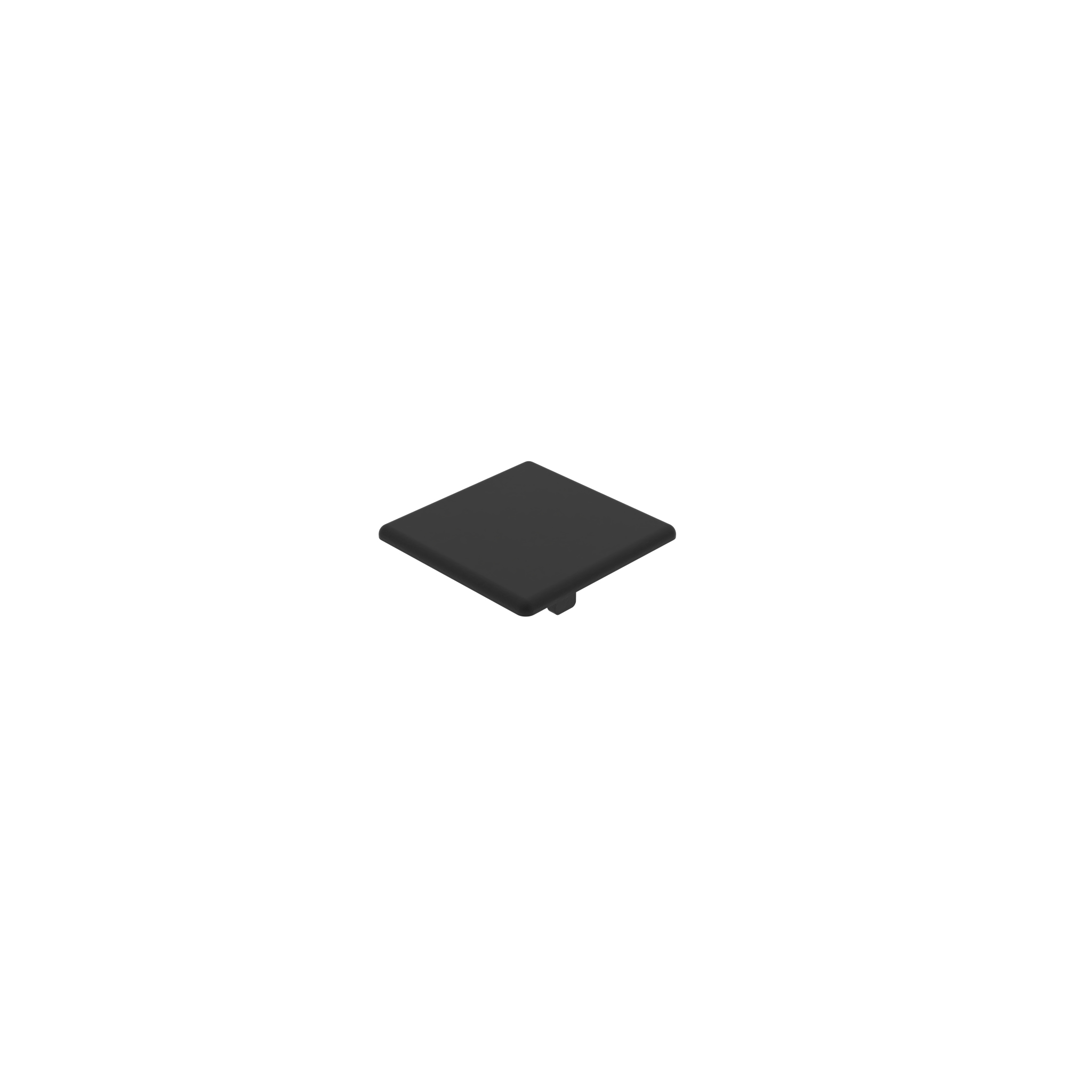

091182 Negro 2.0 4 crosses 40 x 40 2.5 I 5 4.5 (4.3)
091182S01 Gris ≈ RAL 7042 2.0 4 crosses 40 x 40 2.5 I 5 4.5 (4.3)
091183 Negro 2.0 3 Kreuze 20 x 60 2.5 I 5 4.5 (4.3)
091183S01 Gris ≈ RAL 7042 2.0 3 Kreuze 20 x 60 2.5 I 5 4.5 (4.3)
091236 Negro 2.0 2 pins 10 x 40 2.5 I 5 3.4 (3.3)
091236S01 Gris ≈ RAL 7042 2.0 2 pins 10 x 40 2.5 I 5 3.4 (3.3)
091237 Negro 1.8 1 cross 20 x 20 R20 - 90° 2.5 I 5 4.45 (4.3)
091332 Negro 1.5 New version, 1 cross 20 x 20 2.5 B 6 5.7 (5.5)
091332S02 Negro 1.5 1 cross, ESD electrostatical discharging 20 x 20 2.5 B 6 5.7
091332S03 Gris ≈ RAL 7004 1.5 1 cross 20 x 20 2.5 B 6 5.7
091402S01 Gris ≈ RAL 7042 2.0 2 pins 10 x 20 2.5 / 8.5 I 5 3.4
