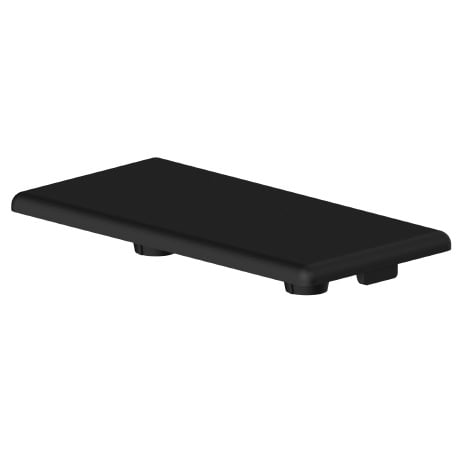

Cover Cap for 45 mm Modular Dimension
0,00 €
Número de producto:
091083S02
Cantidad por Paquete:
100 piezas
Información sobre el producto "Cover Cap for 45 mm Modular Dimension"
Color:
Negro, gris
Países de Entrega:
En todo el mundo
Description:

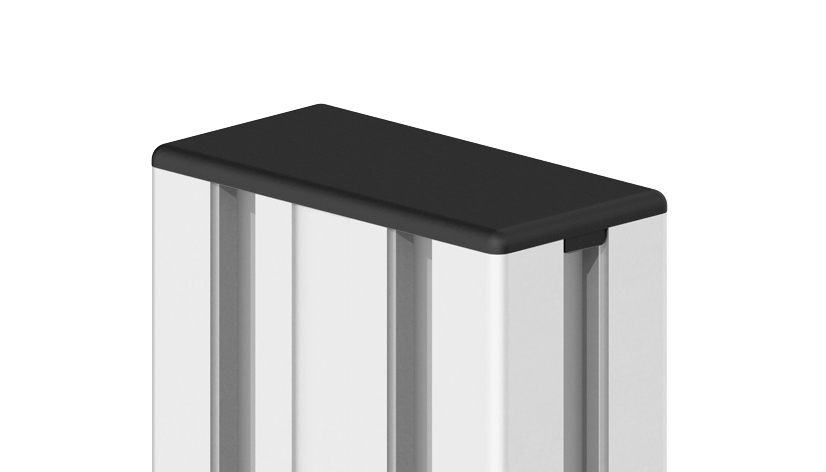

To cover the end of the profile
Material:
Plástico PA, reforzado con fibra de vidrio
Especiales:
Descarga electrostática ESD, otros tamaños, otros colores bajo pedido
Negro, gris
Países de Entrega:
En todo el mundo
Description:
To cover the end of the profile
Material:
Plástico PA, reforzado con fibra de vidrio
Especiales:
Descarga electrostática ESD, otros tamaños, otros colores bajo pedido
| Model: | 45 mm modular dimension |
|---|---|
| Cantidad por Paquete: | 100 piezas |
| Número de Arancel Aduanero de Exportación: | 39269097 |
| Peso (g): | 10.2 |
| (ECLASS 6.0): | 23369290 |
| (ECLASS 7.0): | 23369290 |
| (ECLASS 8.0): | 23369290 |
| (ECLASS 9.0): | 23369290 |
| (ECLASS 10.0): | 23369290 |
| (ECLASS 11.0): | 23360192 |
| (ECLASS 12.0): | 23360192 |
| (ECLASS 13.0): | 23360192 |
| Numero de ERP: | 138643 |
| Zolltarifnummer: | 39269097900 |
Variantes

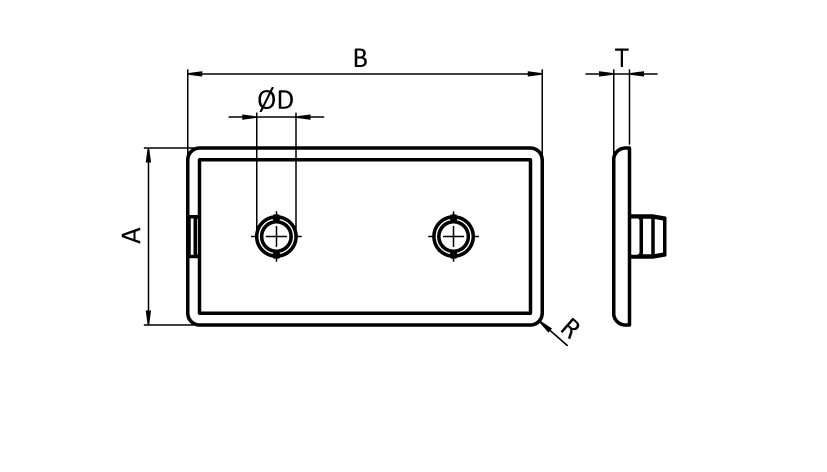

| Número de producto | Color | ØD (mm) | Dimensions A x B (mm) | Feature | R (mm) | T (mm) | Ranura N (mm) | Profile | Cantidad por Paquete |
|---|---|---|---|---|---|---|---|---|---|
| 091002 | Negro | 4.0 | 22.5 x 45 | 4 pins | 3.0 | 4.0 | 10 | B | 100 piezas |
| 091002S01 | Gris ≈ RAL 7004 | 4.0 | 22.5 x 45 | 4 pins | 3.0 | 4.0 | 10 | B | 100 piezas |
| 091006 | Negro | 10.4 (10.0) | 45 x 90 | 2 Pins for core hole | 3.0 | 4.0 | 10 | B | 10 piezas |
| 091006S07 | Gris ≈ RAL 7004 | 10.4 (10.0) | 45 x 90 | 2 Pins for core hole | 3.0 | 4.0 | 10 | B | 10 piezas |
| 091011 | Negro | 10.4 (10.0) | 45 x 45 | 1 pin for core hole | 4.0 | 4.0 | 10 | B | 100 piezas |
| 091011S03 | Negro | 10.4 (10.0) | 45 x 45 | 1 pin for core hole, ESD electrostatical discharging | 4.0 | 4.0 | 10 | B | 100 piezas |
| 091011S14 | Gris ≈ RAL 7004 | 10.4 (10.0) | 45 x 45 | 1 pin for core hole | 4.0 | 4.0 | 10 | B | 100 piezas |
| 091015 | Negro | 4.0 | 45 x 45 | With hole Ø 17.0 mm, 4 pins 4.3 | 3.0 | 4.0 | 10 | B | 100 piezas |
| 091015S02 | Negro | 4.0 | 45 x 45 | With hole Ø 17.0 mm, 4 pins 4.3, ESD electrostatical discharging | 3.0 | 4.0 | 10 | B | 100 piezas |
| 091015S03 | Gris ≈ RAL 7004 | 4.0 | 45 x 45 | With hole Ø 17.0 mm, 4 pins 4.3 | 3.0 | 4.0 | 10 | B | 100 piezas |
| 091017 | Negro | 10.8 (10.0) | 45 x 60 | 1 pin for core hole | 3.0 | 4.0 | 10 | B | 100 piezas |
| 091017S02 | Negro | 10.8 (10.0) | 45 x 60 | ESD electrostatical discharging, 1 pin for core hole | 3.0 | 4.0 | 10 | B | 100 piezas |
| 091017S04 | Gris ≈ RAL 7004 | 10.8 (10.0) | 45 x 60 | 1 pin for core hole | 3.0 | 4.0 | 10 | B | 100 piezas |
| 091024 | Negro | - | 90 x 90 | 4 support ribs | 3.5 | 4.0 | 10 | B | 10 piezas |
| 091025 | Negro | 5.0 | 90 x 90 | 4 pins 5.0 | 5.0 | 4.0 | - | - | 10 piezas |
| 091030 | Negro | 10.2 (10.0) | 90 x 90 light (superlight) | 4 pins for core hole, 4 pins | 5.0 | 4.0 | 10 | B | 10 piezas |
| 091030S03 | Negro | 10.2 (10.0) | 90 x 90 light (superlight) | 4 core holes, 4 pins, ESD electrostatical discharging | 5.0 | 4.0 | 10 | B | 10 piezas |
| 091030S04 | Gris ≈ RAL 7004 | 10.2 (10.0) | 90 x 90 light (superlight) | 4 pins for core hole, 4 pins | 5.0 | 4.0 | 10 | B | 10 piezas |
| 091064 | Negro | 10.6 | 45 x 90 | 2 Pins for core hole | 3.0 | 4.0 | 10 | - | 10 piezas |
| 091083 | Negro | (4.0) | 45 x 60 | With hole Ø 18.3 mm, 4 pins 4.3 | 3.0 | 4.0 | 10 | B | 100 piezas |
| 091083S01 | Negro | (4.0) | 45 x 60 | With hole Ø 18.3 mm, 4 pins 4.3, ESD elektrostatical discharging | 3.0 | 4.0 | 10 | B | 100 piezas |
| 091083S02 | Gris ≈ RAL 7004 | (4.0) | 45 x 60 | With hole Ø 18.3 mm, 4 pins 4.3 | 3.0 | 4.0 | 10 | B | 100 piezas |
| 091112 | Negro | 6.9 | 45 x 45 | 1 cross | 3.0 | 4.0 | 10 | - | 100 piezas |
| 091113 | Negro | 6.9 | 45 x 90 | 2 crosses | 3.0 | 4.0 | 10 | - | 10 piezas |
| 091130 | Negro | 10.0 | 45 x 45 R37.5 - 90° | 1 pin for core hole | 3.0 | 4.0 | 10 | B | 100 piezas |
| 091130S03 | Gris ≈ RAL 7004 | 10.0 | 45 x45 R37.5 - 90° | 1 pin for core hole | 3.0 | 4.0 | 10 | B | 100 piezas |
| 091169 | Negro | 10.5 | 90 x 90 | 4 crosses | 3.5 | 4.0 | - | - | 10 piezas |
| 091207 | Negro | 15.1 | 90 x 90 | New version, 4 support ribs | 3.0 | 4.0 | 10 | B | 10 piezas |
| 091207S04 | Negro | 15.1 | 90 x 90 | New version, 4 support ribs, ESD electrostatical discharging | 3.0 | 4.0 | 10 | B | 10 piezas |
| 091207S05 | Gris ≈ RAL 7004 | 15.1 | 90 x 90 | New version, 4 support ribs | 3.0 | 4.0 | 10 | B | 10 piezas |
| 091214 | Negro | 10.0 | 45 x 45 R40 - 90° | 1 pin for core hole | 1.75 | 4.0 | 10 | - | 100 piezas |
| 091276 | Negro | 15.2 | 90 x 90 | 8 support ribs | 3.0 | 4.0 | 10 | B | 10 piezas |
| 091276S03 | Gris ≈ RAL 7004 | 15.2 | 90 x 90 | 8 support ribs | 3.0 | 4.0 | 10 | B | 10 piezas |
| 091288 | Negro | 10.4 | 45 x 45 | 1 pin for core hole | 2.5 | 4.0 | 10 | B | 100 piezas |
