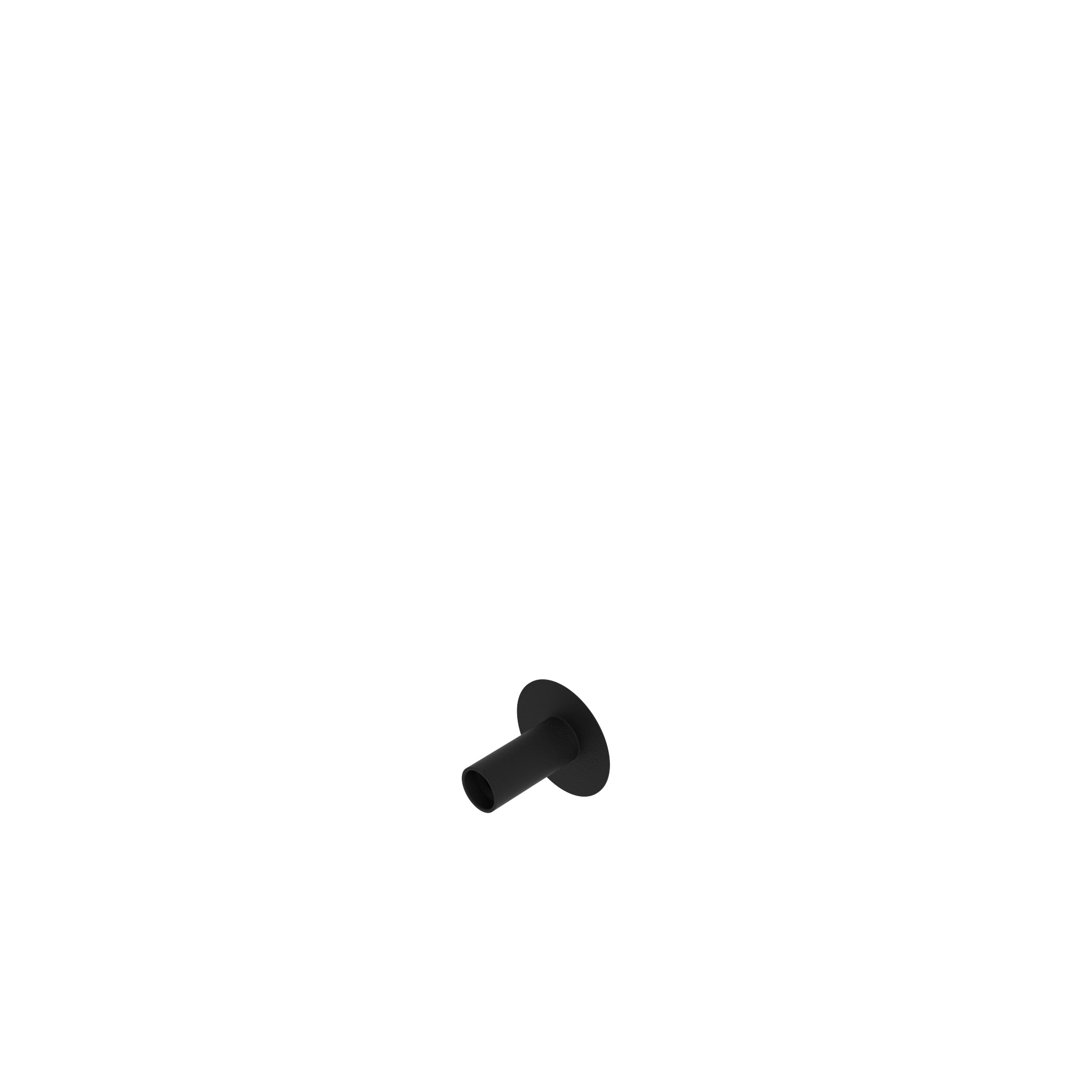

Cover Cap for Central Connector B, Slot 10

0,00 €

Profile

B

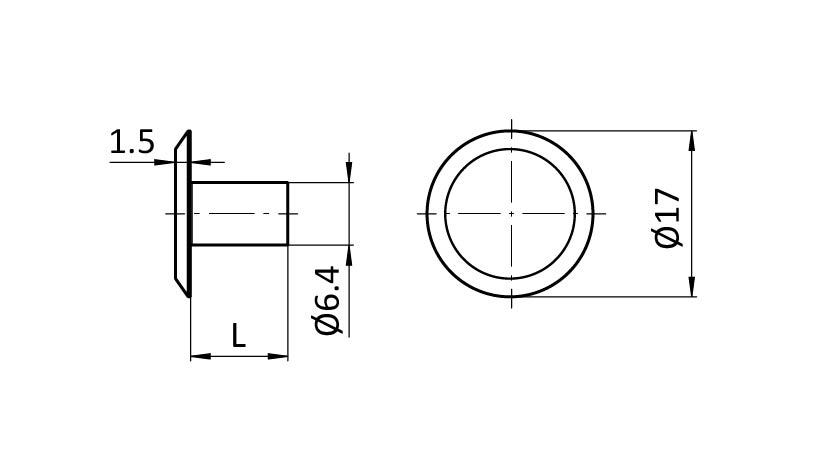

L (mm)

10.0

15.0

Dimensión modular (mm)

40

45

Para Tuerca

10

Número de producto: 091107

Cantidad por paquete: 100 piezas

Descripción:
To cover the blind or through hole

Material:
Plástico PA

Color:
Negro

Tip:
Compatible Central Connector B 0°, Slot 10 see 099B10171000
Compatible Central Connector B 90°, Slot 10 see 099B10171090
Compatible Central Butt Connector B 180° +/-45°, Slot 10 see 099B1017S01
Compatible Central Connector B 90° +/-45°, Slot 10 see 099B1017S02

Países de Entrega:
En todo el mundo

Cantidad por paquete:	100 piezas
Peso (g):	0.6
Numero de ERP:	100086

Variantes

Número de producto	Profile	L (mm)	Dimensión modular (mm)	Para Tuerca	Cantidad por paquete
091107	B	15.0	45	10	100 piezas
091108	B	10.0	40	10	100 piezas

Clasificación

ECLASS 6.0: 23369290
ECLASS 7.0: 23369290
ECLASS 8.0: 23369290
ECLASS 9.0: 23369290
ECLASS 10.0: 23369290
ECLASS 11.0: 23360192
ECLASS 12.0: 23360192
ECLASS 13.0: 23360192
Zolltarifnummer: 39269097900
Número de Arancel Aduanero de Exportación: 39269097

Tags

Profile Type	Profile Type B
Slot Size	Slot size 10
Modular Dimension	Modular Dimension 45
Profile Form	T-slot Profiles
