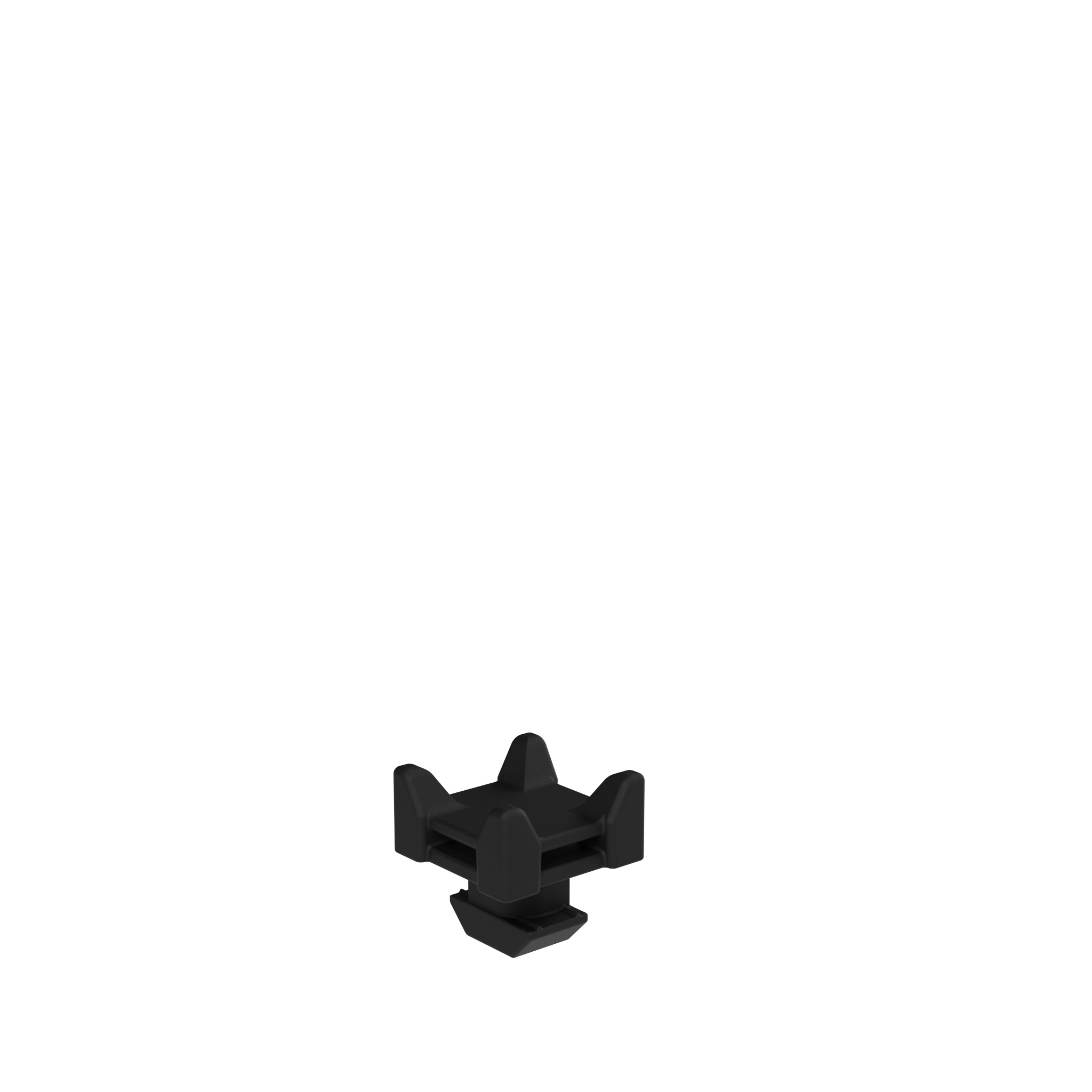

Cross Cable Binder Block

Información sobre el producto "Cross Cable Binder Block"

Color:
Negro

Países de Entrega:
En todo el mundo

Description:

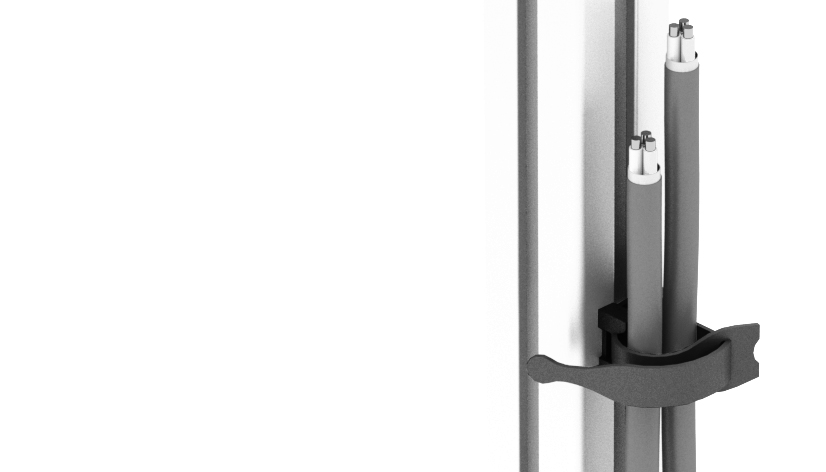

To fix cables to aluminum profiles in two directions; can be mounted into the slot by a quarter turn

Material:
Cable binding block: Plastic PA, glass fiber reinforced
Velcro® strap: Plastic PE (hook), Plastic PA (loop)

Specials:
Customized hammer, other colors on request
Cantidad por Paquete: 100 piezas
Model: Plastic PA, Slot 8, 10
Peso (g): 4.4
ECLASS 6.0: 27140701
ECLASS 7.0: 27140701
ECLASS 8.0: 27140701
ECLASS 9.0: 27140701
ECLASS 10.0: 27140701
ECLASS 11.0: 27140701
ECLASS 12.0: 27140701
ECLASS 13.0: 27140701
Zolltarifnummer: 39269097900
Número de Arancel Aduanero de Exportación: 39269097
Numero de ERP: 100461

Variantes

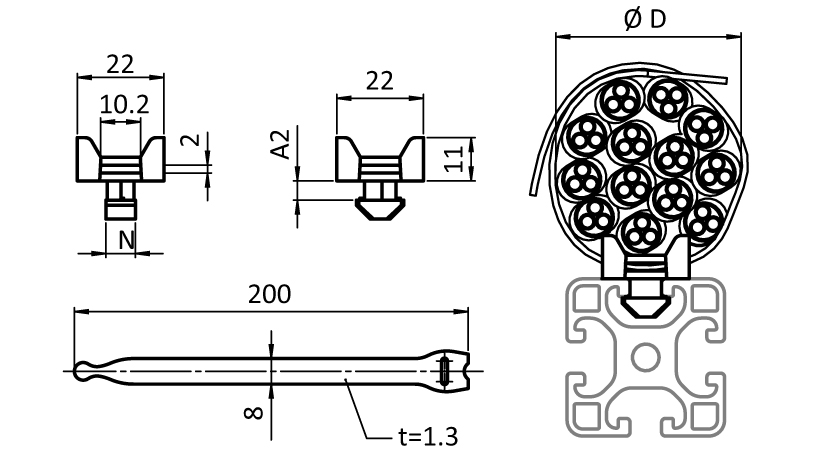

Número de producto Version Profile Ranura N (mm) A2 (Profile) (mm) ØD (mm)
093249 - B 10 5.8 (6.0) -
093249S03 Con tira de Velcro® B 10 5.8 (6.0) ≤ 50
093251 - I 8 4.6 (4.5) -
093254 - I 8 4.4 (4.5) -
093254S03 Con tira de Velcro® I 8 4.4 (4.5) ≤ 50
093258 - B 8 2.1 (2.2) -
