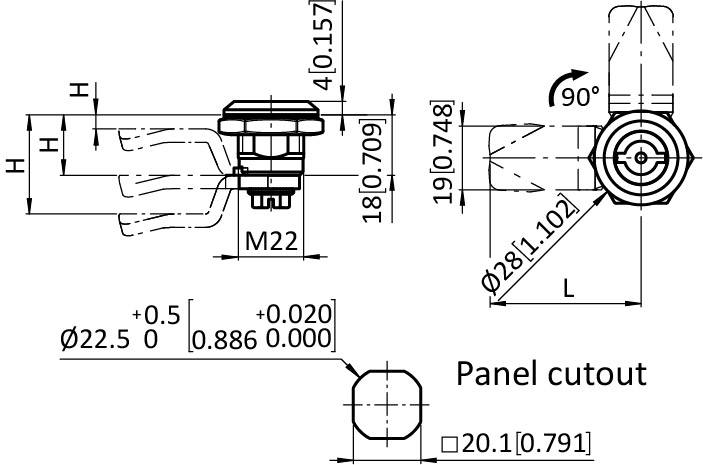

Cuarto de Vuelta Estándard de la Industria 22.5 / 18, en Poliamida

Información sobre el producto "Cuarto de Vuelta Estándard de la Industria 22.5 / 18, en Poliamida"

Color:
Insert: Black
Housing: Black
Seals: Black

Países de Entrega:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Descripción:

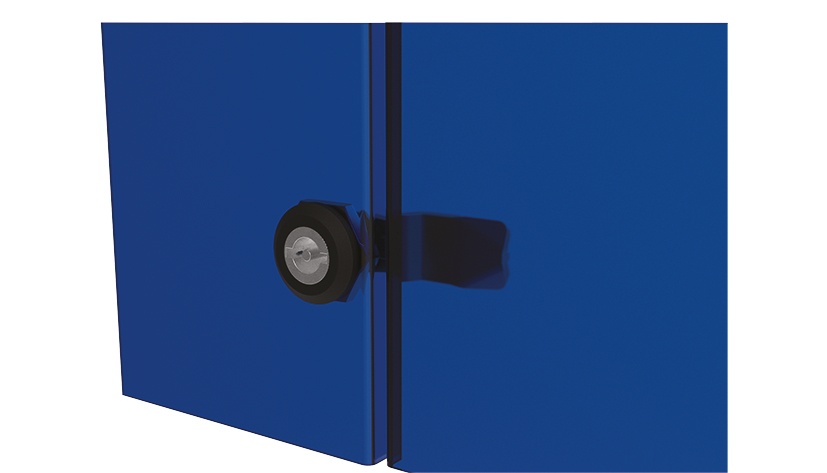

For easy and secure latching and locking of doors and flaps;
Wide range of inserts, cams and accessories

Material:
Insert: Zinc die-cast
Housing: Plastic PA
Cam: Steel
Wave washer: Stainless steel SS304
Seals: Rubber NBR
Nut: Zinc die-cast
Screw: Steel

Superficie:
Insert: Powder coated
Cam: Zinc plated
Nut: Zinc plated
Screw: Zinc plated

Consejo:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.

(ECLASS 6.0):	23199090
(ECLASS 7.0):	23199090
(ECLASS 8.0):	23199090
(ECLASS 9.0):	23199090
(ECLASS 10.0):	23199090
(ECLASS 11.0):	23199090
(ECLASS 12.0):	23199090
(ECLASS 13.0):	23199090
Cantidad por Paquete:	10 piezas
IP Rating:	IP65 / NEMA 4
Numero de PA:	138726
Número de Arancel Aduanero de Exportación:	82041100
Peso (g):	66.5
Versión de Puerta:	Derecha, izquierda

Variantes

ID de producto	Tipo de Inserto
0810534	Double bit 3.0 mm
0810535	Double bit 4.0 mm
0810536	Double bit 5.0 mm
0810537	Slotted recess 2 x 4
0810538	Slotted recess 2 x 4 coin proof
0810539	Triangular 7.0 mm
0810540	Triangular 8.0 mm
0810541	Square 6.0 mm
0810542	Square 7.0 mm
0810543	Square 8.0 mm
0810544	Square 7.0 mm with slotted recess
0810545	Square 8.0 mm with slotted recess
0810546	Female square 7.0 mm
0810547	Female hexagon 8.0 mm
0810548	Female hexagon 9.0 mm
0810549	Female hexagon 10.0 mm
0810550	Female hexagon with 3 mm pin (Bellcore Standard) 5/16"
0810551	Male hexagon 11.0 mm
0810553	Triangular 10.0 mm with M5 screw hole
