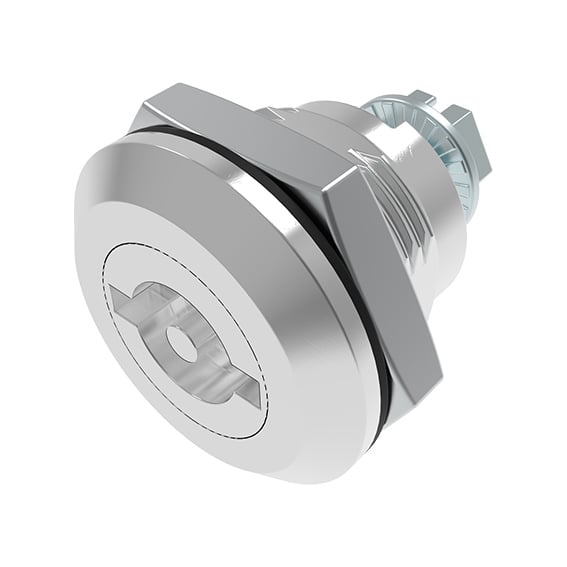

Cuarto de Vuelta Estándard de la Industria 22.5 / 18, en Zamak Cromado

Información sobre el producto "Cuarto de Vuelta Estándard de la Industria 22.5 / 18, en Zamak Cromado"

Color:
Insert: Chrome
Housing: Chrome
Seals: Black

Países de Entrega:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Descripción:

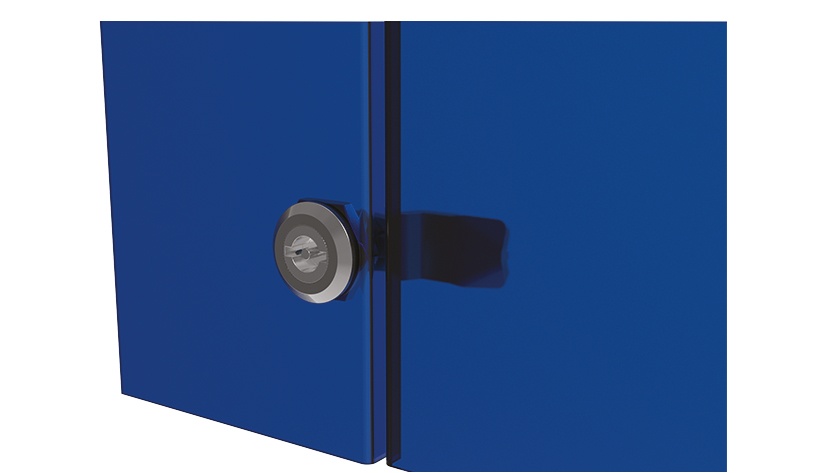

For easy and secure latching and locking of doors and flaps;
Wide range of inserts, cams and accessories

Material:
Insert: Zinc die-cast
Housing: Zinc die-cast
Cam: Steel
Seals: Rubber NBR
Wave washer: Stainless steel SS304
Nut: Zinc die-cast
Screw: Steel

Superficie:
Insert: Chrome plated
Housing: Chrome plated
Cam: Zinc plated
Nut: Zinc plated
Screw: Zinc plated

Consejo:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.

Zolltarifnummer:
83014090000
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23199090
(ECLASS 12.0): 23199090
(ECLASS 13.0): 23199090
Cantidad por Paquete: 10 piezas
IP Rating: IP65 / NEMA 4
Peso (g): 88.0
Versión de Puerta: Derecha, izquierda

Variantes

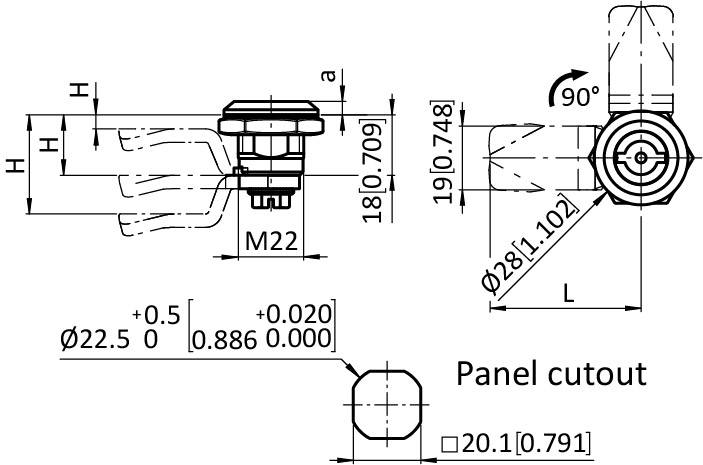

ID de producto a (mm) Tipo de Inserto
0810123 6.0 Key locking (Keyed FH333)
0810124 4.0 Double bit 3.0 mm
0810125 4.0 Double bit 4.0 mm
0810126 4.0 Double bit 5.0 mm
0810127 4.0 Slotted recess 2 x 4
0810128 4.0 Triangular 7.0 mm
0810129 4.0 Triangular 8.0 mm
0810130 4.0 Square 7.0 mm
0810131 4.0 Square 8.0 mm
0810132 4.0 Square 7.0 mm with slotted recess
0810133 4.0 Square 8.0 mm with slotted recess
0810134 4.0 Female square 7.0 mm
0810135 4.0 Female hexagon 8.0 mm
0810135S01 4.0 Female hexagon 9.0 mm
0810136 4.0 Female hexagon with 3 mm pin (Bellcore Standard) 5/16"
0810137 4.0 Male hexagon 11.0 mm
0810555 4.0 Square 6.0 mm
0810559 4.0 Triangular 10.0 mm with M5 screw hole
0810560 4.0 Female hexagon 10.0 mm
