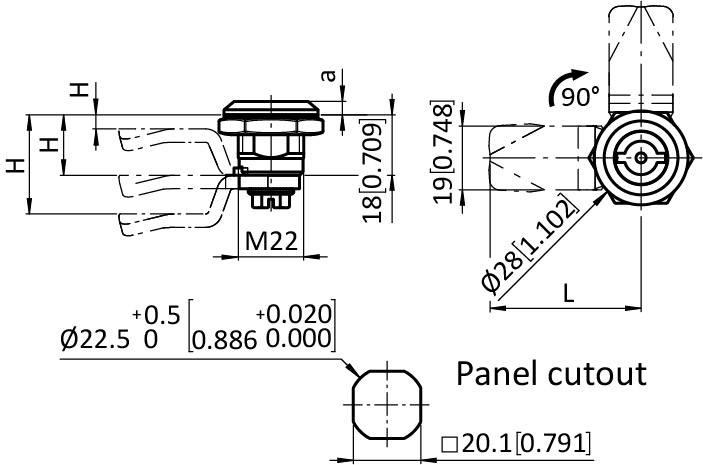

Cuarto de Vuelta Estándard de la Industria 22.5 / 18, en Zamak Recubierto de Polvo Negro

Descripción:
For easy and secure latching and locking of doors and flaps;
Wide range of inserts, cams and accessories

Material:
Insert: Zinc die-cast
Housing: Zinc die-cast
Cam: Steel
Seals: Rubber NBR
Wave washer: Stainless steel SS304
Nut: Zinc die-cast
Screw: Steel

Superficie:
Insert: Powder coated
Housing: Powder coated
Cam: Zinc plated
Nut: Zinc plated
Screw: Zinc plated

Color:
Insert: Black
Housing: Black
Seals: Black

Consejo:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.

Países de Entrega:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Cantidad por paquete:	10 piezas
Peso (g):	89.0
IP Rating:	IP65 / NEMA 4
Versión de Puerta:	Derecha, izquierda
Numero de ERP:	121700

Variantes

Número de producto	a (mm)	Tipo de Inserto
0810142	4.0	Double bit 3.0 mm
0810143	4.0	Double bit 4.0 mm
0810144	4.0	Double bit 5.0 mm
0810145	4.0	Slotted recess 2 x 4
0810145S01	4.0	Slotted recess 2 x 4 coin proof
0810146	4.0	Triangular 7.0 mm
0810147	4.0	Triangular 8.0 mm
0810554	4.0	Square 6.0 mm
0810148	4.0	Square 7.0 mm
0810149	4.0	Square 8.0 mm
0810150	4.0	Square 7.0 mm with slotted recess
0810151	4.0	Square 8.0 mm with slotted recess
0810152	4.0	Female square 7.0 mm
0810153	4.0	Female hexagon 8.0 mm
0810153S01	4.0	Female hexagon 9.0 mm
0810561	4.0	Female hexagon 10.0 mm
0810154	4.0	Female hexagon with 3 mm pin (Bellcore Standard) 5/16"
0810155	4.0	Male hexagon 11.0 mm
0810558	4.0	Triangular 10.0 mm with M5 screw hole
0810141	6.0	Key locking (Keyed FH333)
