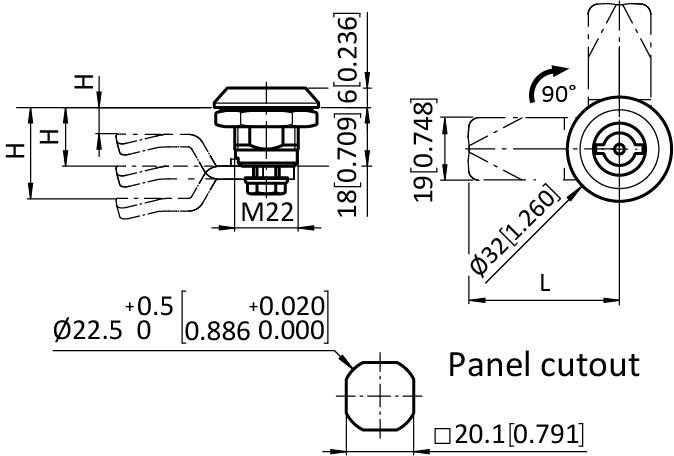

Cuarto de Vuelta con Carcasa Extendida 22.5 / 18, en Zamak Recubierto de Polvo Negro

Información sobre el producto "Cuarto de Vuelta con Carcasa Extendida 22.5 / 18, en Zamak Recubierto de Polvo Negro"

Color:
Insert: Black
Housing: Black
Seals: Black

Países de Entrega:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Descripción:

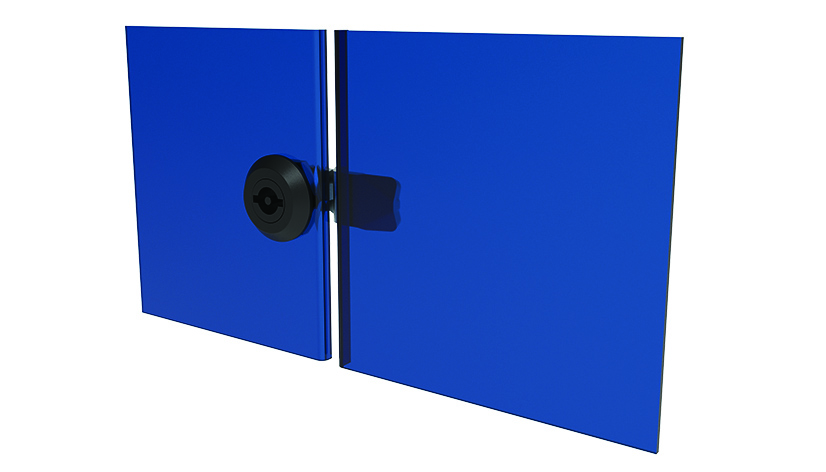

For easy and secure latching and locking of doors and flaps with padlock option;
Wide range of inserts, cams and accessories;
Two and four padlock holes

Material:
Insert: Zinc die-cast
Housing: Zinc die-cast
Seals: Rubber NBR
Nut: Zinc die-cast
Screw: Steel

Superficie:
Insert: Powder coated
Housing: Powder coated
Nut: Zinc plated
Screw: Zinc plated

Consejo:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.

(ECLASS 6.0):	23199090
(ECLASS 7.0):	23199090
(ECLASS 8.0):	23199090
(ECLASS 9.0):	23199090
(ECLASS 10.0):	23199090
(ECLASS 11.0):	23199090
(ECLASS 12.0):	23199090
(ECLASS 13.0):	23199090
Cantidad por Paquete:	10 piezas
Numero de PA:	139092
Número de Arancel Aduanero de Exportación:	83014090
Peso (g):	68.1
Versión de Puerta:	Derecha, izquierda
Zolltarifnummer:	83014090000

Variantes

ID de producto	Tipo de Inserto
0810729	Double bit 3.0 mm
0810737	Double bit 4.0 mm
0810745	Double bit 5.0 mm
0810753	Slotted recess 2 x 4
0810761	Slotted recess 2 x 4 coin proof
0810769	Triangular 7.0 mm
0810777	Triangular 8.0 mm
0810785	Square 7.0 mm
0810793	Square 8.0 mm
0810801	Square 7.0 mm with slotted recess
0810809	Square 8.0 mm with slotted recess
0810817	Square 8.0 mm female
0810825	Female hexagon 8.0 mm
0810833	Female hexagon 9.0 mm
0810841	Female hexagon 8.0 mm with 3 mm pin
0810849	Male hexagon 10.0 mm
0810857	Triangular 10.0 mm with M5 screw hole
