Cuarto de Vuelta con Inserto Cuadrado y Eje Largo 19, Resistente a la vibración, incl. Lengueta (kit)

Información sobre el producto "Cuarto de Vuelta con Inserto Cuadrado y Eje Largo 19, Resistente a la vibración, incl. Lengueta (kit)"

Color:
Insert: Chrome
Housing: Black
Nut: Black

Países de Entrega:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Descripción:

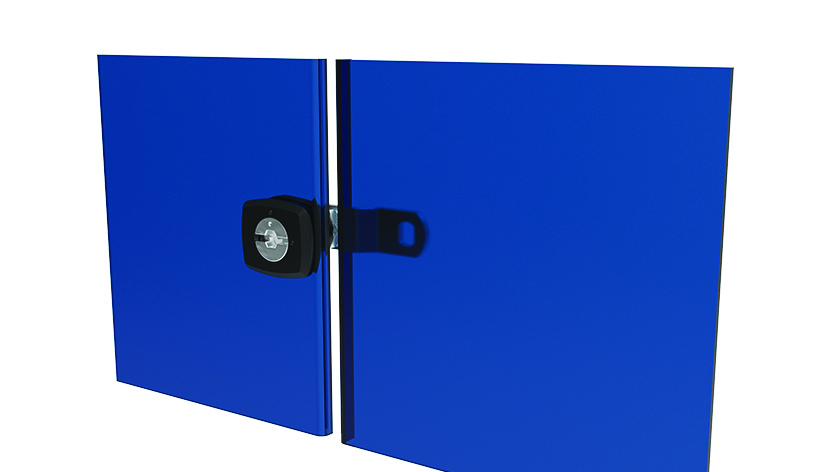

For easy and secure latching and locking of doors and flaps;
Wide range of cams and accessories

Material:
Insert: Zinc die-cast
Housing: Plastic PA
Cam: Steel
Nut: Zinc die-cast
Hexagon nuts: Steel

Superficie:
Insert: Chrome plated
Housing: plain
Cam: Zinc plated
Nut: Powder coated
Hexagon nuts: Zinc plated

Consejo:
Compatible Cams see 0890034
Cantidad por Paquete: 10 piezas
Peso (g): 51.1
Versión de Puerta: Derecha, izquierda
ECLASS 6.0: 23199090
ECLASS 7.0: 23199090
ECLASS 8.0: 23199090
ECLASS 9.0: 23199090
ECLASS 10.0: 23199090
ECLASS 11.0: 23199090
ECLASS 12.0: 23199090
ECLASS 13.0: 23199090
Número de Arancel Aduanero de Exportación: 83014090
Numero de ERP: 139296

Variantes

Número de producto H (mm) Tipo de Inserto
0811025 19 - 28 / 29 - 38 Female hexagon 5.0 mm with slotted recess
0811026 14 -23 / 34 - 43 Female hexagon 5.0 mm with slotted recess
0811027 9 - 18 / 39 - 48 Female hexagon 5.0 mm with slotted recess
0811028 24 - 33 Female hexagon 5.0 mm with slotted recess
0850203 19 - 28 / 29 - 38 Tubular
0850204 14 - 23 / 34 - 43 Tubular
0850205 9 - 18 / 39 - 48 Tubular
0850206 24 - 33 Tubular
