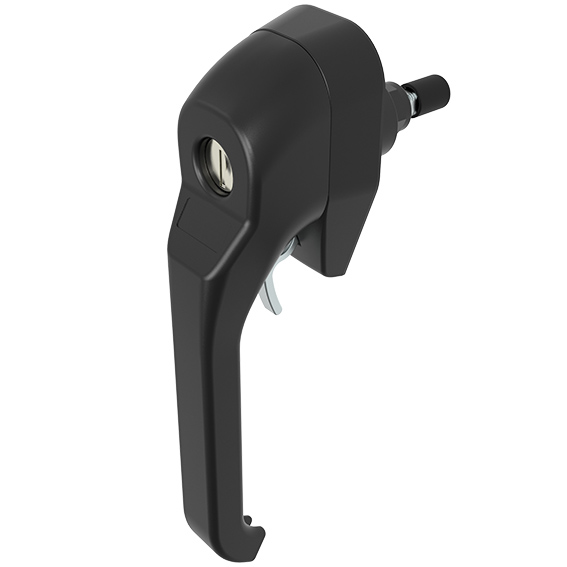

Cuarto de Vuelta con Maneta en L 22.5 / 18, con Función de Desactivación
Número de producto:
0810112S02
Información sobre el producto "Cuarto de Vuelta con Maneta en L 22.5 / 18, con Función de Desactivación"
Color:
Handle insert: Black / -
Housing: Black / -
Seals: Black
Países de Entrega:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria
Descripción:

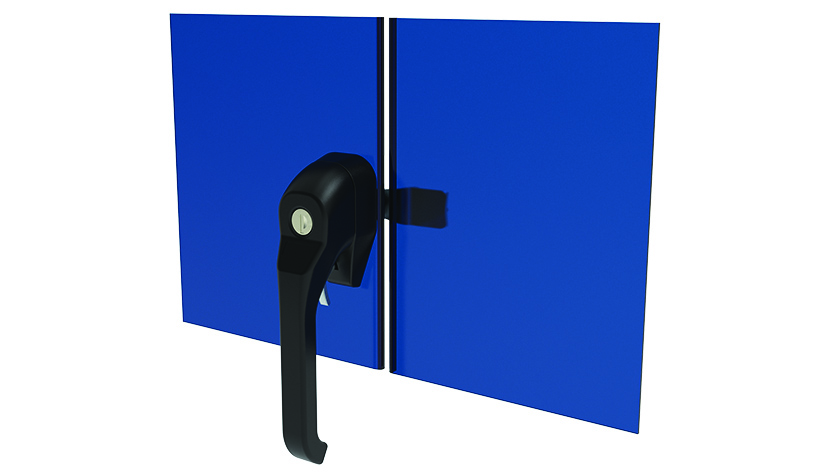

For easy and secure latching and locking of doors and flaps;
Two stage unlocking, turn key and then trigger pull;
Wide range of inserts, cams and accessories
Material:
Handle insert: Plastic PA / zinc die-cast / stainless steel SS316
Housing: Zinc die-cast / stainless steel SS316
Seals: Rubber NBR
Nut: Zinc die-cast
Superficie:
Handle insert: Zinc plated / plain
Housing: Zinc plated / plain
Nut: Zinc plated
Consejo:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.
Handle insert: Black / -
Housing: Black / -
Seals: Black
Países de Entrega:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria
Descripción:
For easy and secure latching and locking of doors and flaps;
Two stage unlocking, turn key and then trigger pull;
Wide range of inserts, cams and accessories
Material:
Handle insert: Plastic PA / zinc die-cast / stainless steel SS316
Housing: Zinc die-cast / stainless steel SS316
Seals: Rubber NBR
Nut: Zinc die-cast
Superficie:
Handle insert: Zinc plated / plain
Housing: Zinc plated / plain
Nut: Zinc plated
Consejo:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.
| (ECLASS 6.0): | 23199090 |
|---|---|
| (ECLASS 7.0): | 23199090 |
| (ECLASS 8.0): | 23199090 |
| (ECLASS 9.0): | 23199090 |
| (ECLASS 10.0): | 23199090 |
| (ECLASS 11.0): | 23199090 |
| (ECLASS 12.0): | 23199090 |
| (ECLASS 13.0): | 23199090 |
| Cantidad por Paquete: | 10 piezas |
| Numero de PA: | 138783 |
| Número de Arancel Aduanero de Exportación: | 83024110 |
| Peso (g): | 851.9 |
| Versión de Puerta: | Derecha, izquierda |
