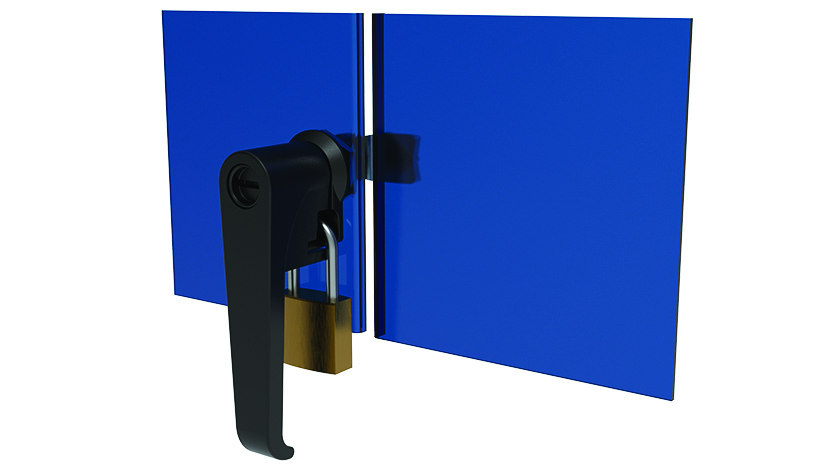

Cuarto de Vuelta con Maneta en L para Candado 22.5 / 18
0,00 €
Número de producto:
0810114S03
Cantidad por Paquete:
1 pieza
Información sobre el producto "Cuarto de Vuelta con Maneta en L para Candado 22.5 / 18"
Color:
L-handle insert: Black / chrome
Housing: Black / chrome
Seals: Black
Países de Entrega:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria
Descripción:
For easy and secure latching and locking of doors and flaps;
Wide range of inserts, cams and accessories
Material:
L-handle insert: Zinc die-cast
Housing: Zinc die-cast
Seals: Rubber NBR
Nut: Zinc die-cast
Limiting washer: Zinc die-cast
Screw: Steel
Superficie:
L-handle insert: Powder coated / chrome plated
Housing: Powder coated / chrome plated
Nut: Zinc plated
Limiting washer: Zinc plated
Screw: Zinc plated
Consejo:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.
L-handle insert: Black / chrome
Housing: Black / chrome
Seals: Black
Países de Entrega:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria
Descripción:
For easy and secure latching and locking of doors and flaps;
Wide range of inserts, cams and accessories
Material:
L-handle insert: Zinc die-cast
Housing: Zinc die-cast
Seals: Rubber NBR
Nut: Zinc die-cast
Limiting washer: Zinc die-cast
Screw: Steel
Superficie:
L-handle insert: Powder coated / chrome plated
Housing: Powder coated / chrome plated
Nut: Zinc plated
Limiting washer: Zinc plated
Screw: Zinc plated
Consejo:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.
| Cantidad por Paquete: | 1 pieza |
|---|---|
| Número de Arancel Aduanero de Exportación: | 79070000 |
| Versión de Puerta: | Derecha, izquierda |
| IP Rating: | IP65 / NEMA 4 |
| Peso (g): | 291.5 |
| (ECLASS 6.0): | 23199090 |
| (ECLASS 7.0): | 23199090 |
| (ECLASS 8.0): | 23199090 |
| (ECLASS 9.0): | 23199090 |
| (ECLASS 10.0): | 23199090 |
| (ECLASS 11.0): | 23199090 |
| (ECLASS 12.0): | 23199090 |
| (ECLASS 13.0): | 23199090 |
| Numero de ERP: | 136967 |
