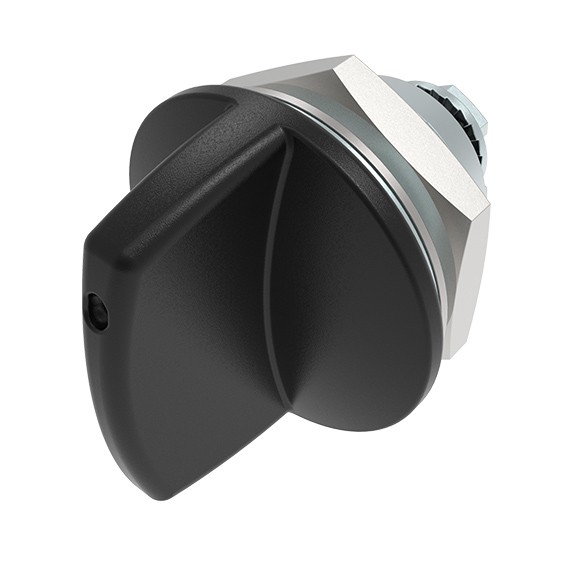

Cuarto de Vuelta de Bajo Perfil 22.5 / 15.5
Número de producto:
0811022
Información sobre el producto "Cuarto de Vuelta de Bajo Perfil 22.5 / 15.5"
Color:
Insert: Black / chrome
Housing: Black / chrome
Seal: Black
Países de Entrega:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria
Descripción:
For easy and secure latching and locking of doors and flaps;
Wide range of cams and accessories
Material:
Insert: Zinc die-cast
Housing: Zinc die-cast
Seal: Rubber NBR
Nut: Zinc die-cast
Screw: Steel
Superficie:
Insert: Powder coated / chrome plated
Housing: Powder coated / chrome plated
Nut: Zinc plated
Screw: Zinc plated
Consejo:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.
Insert: Black / chrome
Housing: Black / chrome
Seal: Black
Países de Entrega:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria
Descripción:
For easy and secure latching and locking of doors and flaps;
Wide range of cams and accessories
Material:
Insert: Zinc die-cast
Housing: Zinc die-cast
Seal: Rubber NBR
Nut: Zinc die-cast
Screw: Steel
Superficie:
Insert: Powder coated / chrome plated
Housing: Powder coated / chrome plated
Nut: Zinc plated
Screw: Zinc plated
Consejo:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.
| (ECLASS 6.0): | 23199090 |
|---|---|
| (ECLASS 7.0): | 23199090 |
| (ECLASS 8.0): | 23199090 |
| (ECLASS 9.0): | 23199090 |
| (ECLASS 10.0): | 23199090 |
| (ECLASS 11.0): | 23199090 |
| (ECLASS 12.0): | 23199090 |
| (ECLASS 13.0): | 23199090 |
| Cantidad por Paquete: | 10 piezas |
| IP Rating: | IP65 / NEMA 4 |
| Numero de PA: | 139291 |
| Número de Arancel Aduanero de Exportación: | 83014090 |
| Peso (g): | 64.9 |
| Versión de Puerta: | Derecha, izquierda |
| Zolltarifnummer: | 83014090000 |
