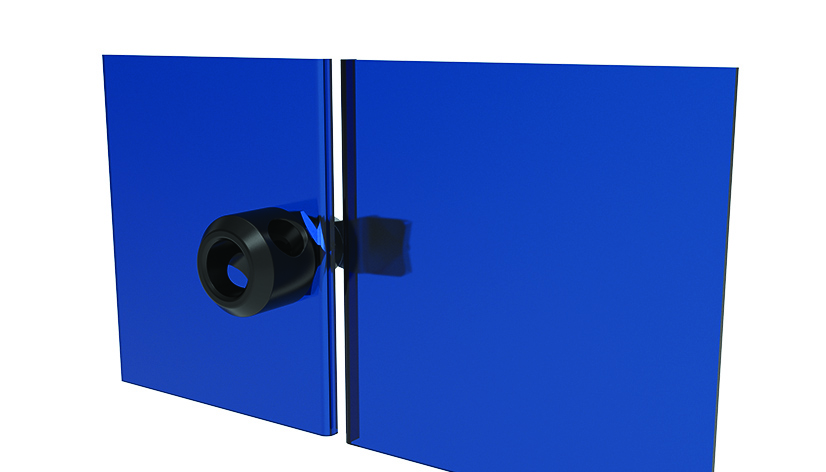

Cuarto de Vuelta para Candado 22.5 / 22, en Zamak Recubierto de Polvo Negro

Información sobre el producto "Cuarto de Vuelta para Candado 22.5 / 22, en Zamak Recubierto de Polvo Negro"

Color:
Insert: Black
Housing: Black
Seals: Black

Países de Entrega:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Descripción:
For easy and secure latching and locking of doors and flaps with padlock option;
Wide range of inserts, cams and accessories;
Two and four padlock holes

Material:
Insert: Zinc die-cast
Housing: Zinc die-cast
Cam: Steel
Seals: Rubber NBR
Nut: Zinc die-cast
Screw: Steel

Superficie:
Insert: Powder coated
Housing: Powder coated
Cam: Zinc plated
Nut: Zinc plated
Screw: Zinc plated

Consejo:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.

Zolltarifnummer:
83014090000
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23199090
(ECLASS 12.0): 23199090
(ECLASS 13.0): 23199090
Cantidad por Paquete: 10 piezas
Peso (g): 146.8
Versión de Puerta: Derecha, izquierda

Variantes

ID de producto Version Tipo de Inserto
0810571 Housing with two padlock holes Double bit 3.0 mm
0810572 Housing with two padlock holes Double bit 4.0 mm
0810573 Housing with two padlock holes Double bit 5.0 mm
0810574 Housing with two padlock holes Slotted recess 2 x 4
0810575 Housing with two padlock holes Triangular 7.0 mm
0810576 Housing with two padlock holes Triangular 8.0 mm
0810577 Housing with two padlock holes Square 7.0 mm
0810578 Housing with two padlock holes Square 8.0 mm
0812142 Housing with four padlock holes Double bit 3.0 mm
0812143 Housing with four padlock holes Double bit 4.0 mm
0812144 Housing with four padlock holes Double bit 5.0 mm
0812145 Housing with four padlock holes Slotted recess 2 x 4
0812146 Housing with four padlock holes Triangular 7.0 mm
0812147 Housing with four padlock holes Triangular 8.0 mm
0812148 Housing with four padlock holes Square 7.0 mm
0812149 Housing with four padlock holes Square 8.0 mm
