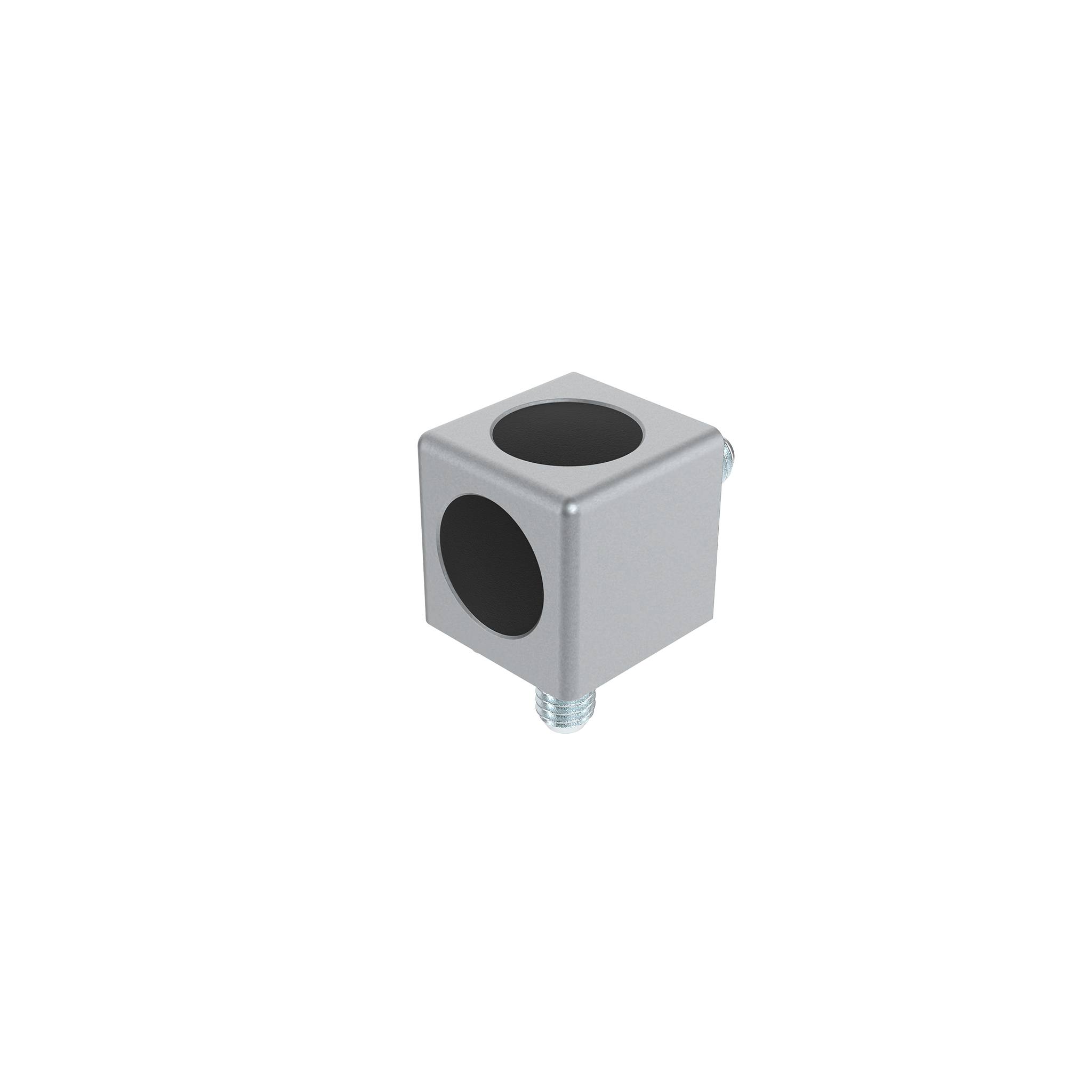

Cube Connector 20, 2D
Número de producto:
093WW203N06RS
Información sobre el producto "Cube Connector 20, 2D"
PFA_AssemblySet1:
2 tornillos ISO 7380 - M5 x 14
Assembly Set 2:
2 self-forming screws S6 x 16 - AF 4
Color:
Cube connector: Alu color
Cover caps: Black / alu color
Países de Entrega:
En todo el mundo
Description:
To connect two aluminium profiles at right angles; with cover caps to cover the bores
Material:
Cube connector: Zinc die-cast
Cover caps: Plastic PA
Assembly set: Steel
Surface:
Cube connector: Plain / powder coated
Cover caps: Laquered
Assembly set: Zinc plated
2 tornillos ISO 7380 - M5 x 14
Assembly Set 2:
2 self-forming screws S6 x 16 - AF 4
Color:
Cube connector: Alu color
Cover caps: Black / alu color
Países de Entrega:
En todo el mundo
Description:
To connect two aluminium profiles at right angles; with cover caps to cover the bores
Material:
Cube connector: Zinc die-cast
Cover caps: Plastic PA
Assembly set: Steel
Surface:
Cube connector: Plain / powder coated
Cover caps: Laquered
Assembly set: Zinc plated
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Cantidad por Paquete: | 10 piezas |
| Cantidad por Paquete (1): | 10 |
| Model: | Zinc die-cast, with Cover Caps |
| Numero de PA: | 148150 |
| Número de Arancel Aduanero de Exportación: | 79070000 |
| Peso (g): | 41.0 |
| Zolltarifnummer: | 79070000900 |
