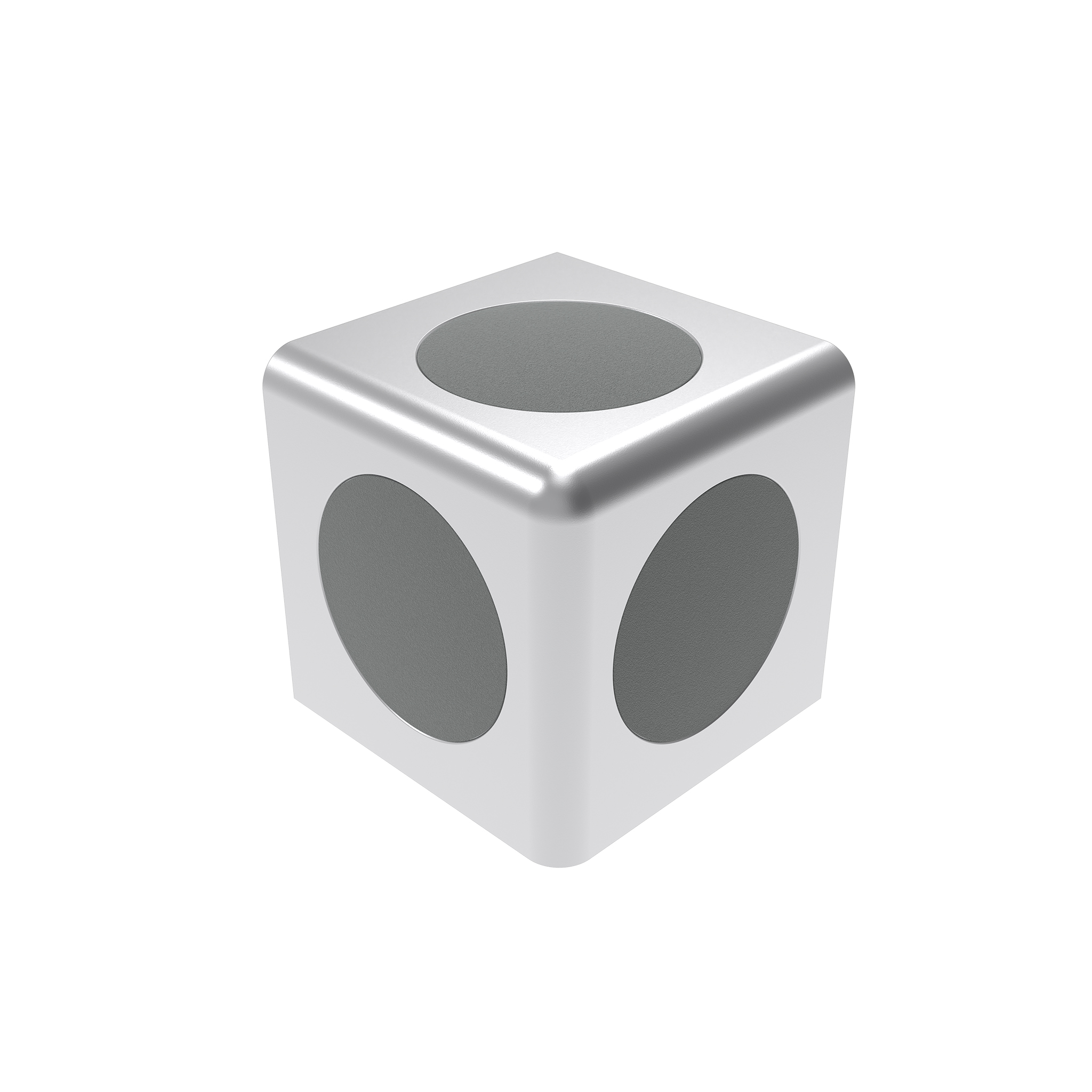

Cube Connector 40, 3D
Número de producto:
093WW406N08
Información sobre el producto "Cube Connector 40, 3D"
Assembly Set:
3 self-forming screws S12 x 30 - hexalobular socket T50
Color:
Cube connector: Alu color
Cover caps: Black / alu color
Países de Entrega:
En todo el mundo
Description:

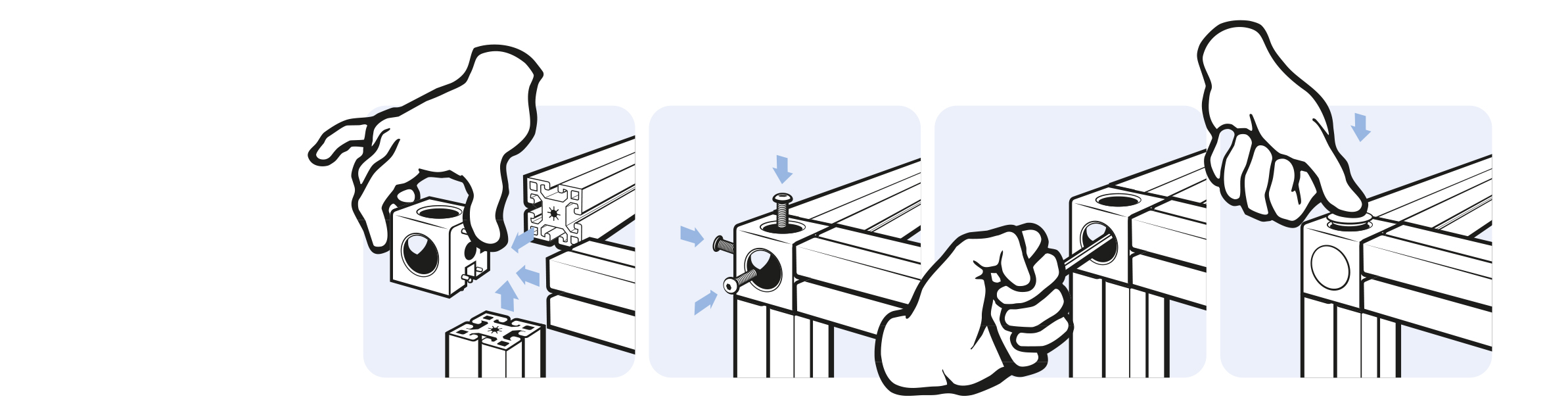

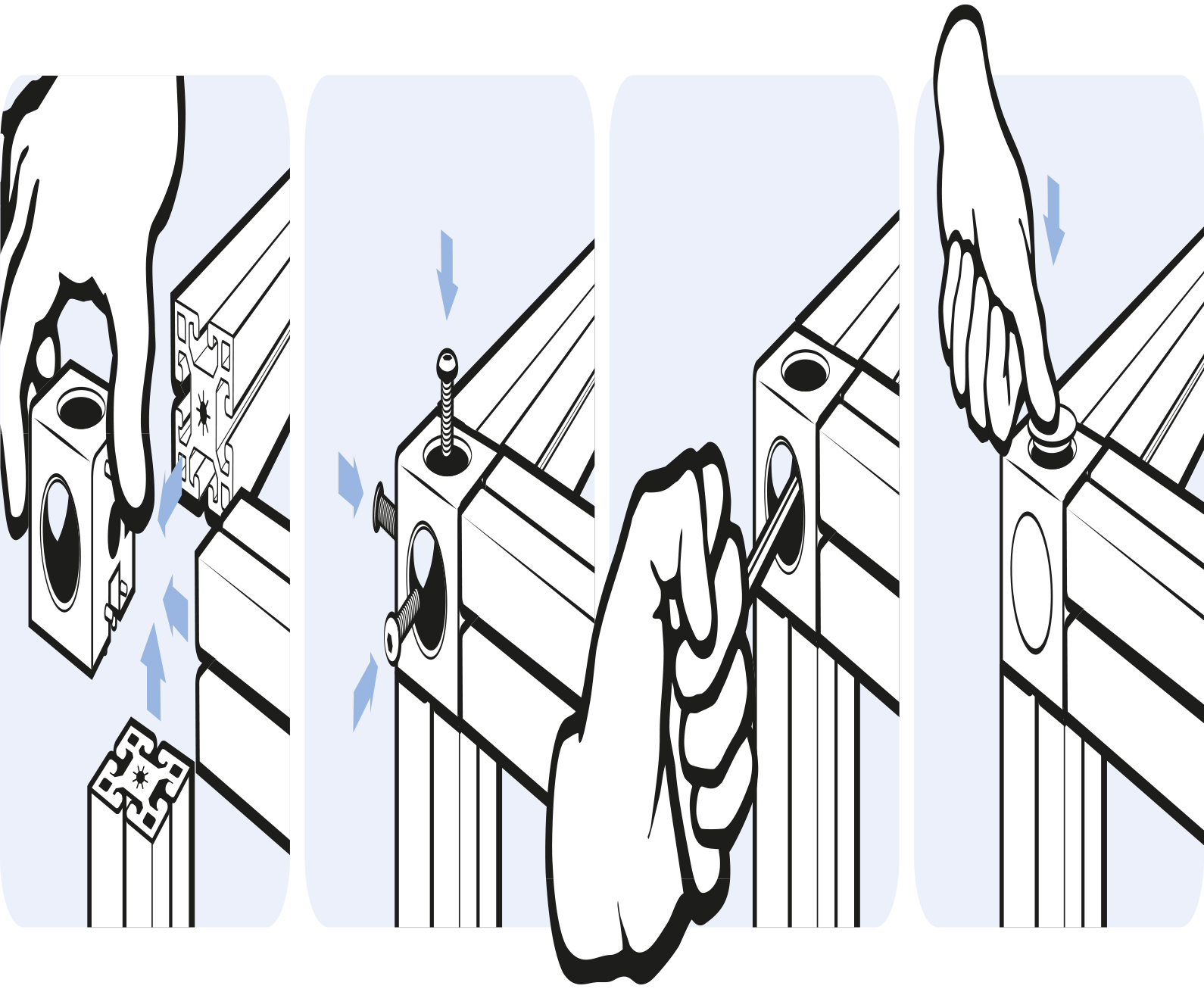

To connect three aluminum profiles at right angles; with cover caps to cover the bores
Material:
Cube connector: Aluminum die-cast
Cover caps: Plastic PA
Assembly set: Steel
Surface:
Cube connector: Plain / powder coated
Cover caps: Laquered
Assembly set: Zinc plated
3 self-forming screws S12 x 30 - hexalobular socket T50
Color:
Cube connector: Alu color
Cover caps: Black / alu color
Países de Entrega:
En todo el mundo
Description:
To connect three aluminum profiles at right angles; with cover caps to cover the bores
Material:
Cube connector: Aluminum die-cast
Cover caps: Plastic PA
Assembly set: Steel
Surface:
Cube connector: Plain / powder coated
Cover caps: Laquered
Assembly set: Zinc plated
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Cantidad por Paquete: | 10 piezas / 10 jconjuntos |
| Model: | Aluminum die-cast, with cover caps |
| Numero de ERP: | 111183 |
| Número de Arancel Aduanero de Exportación: | 76169910 |
| Peso (g): | 94.5 |
| Zolltarifnummer: | 76169910990 |
