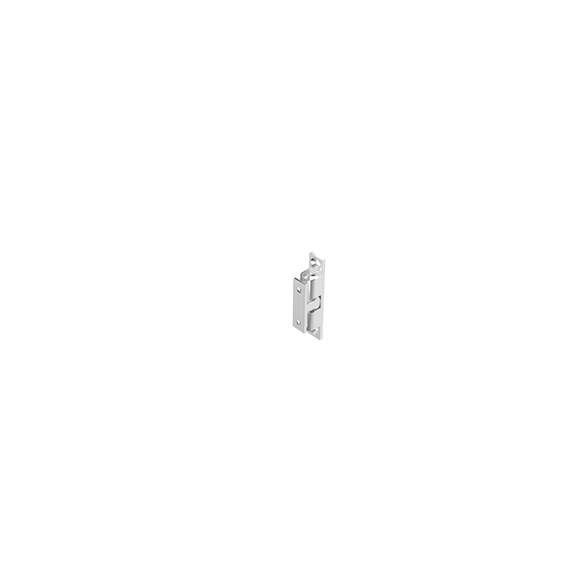

Double Ball Catch MS

Descripción:

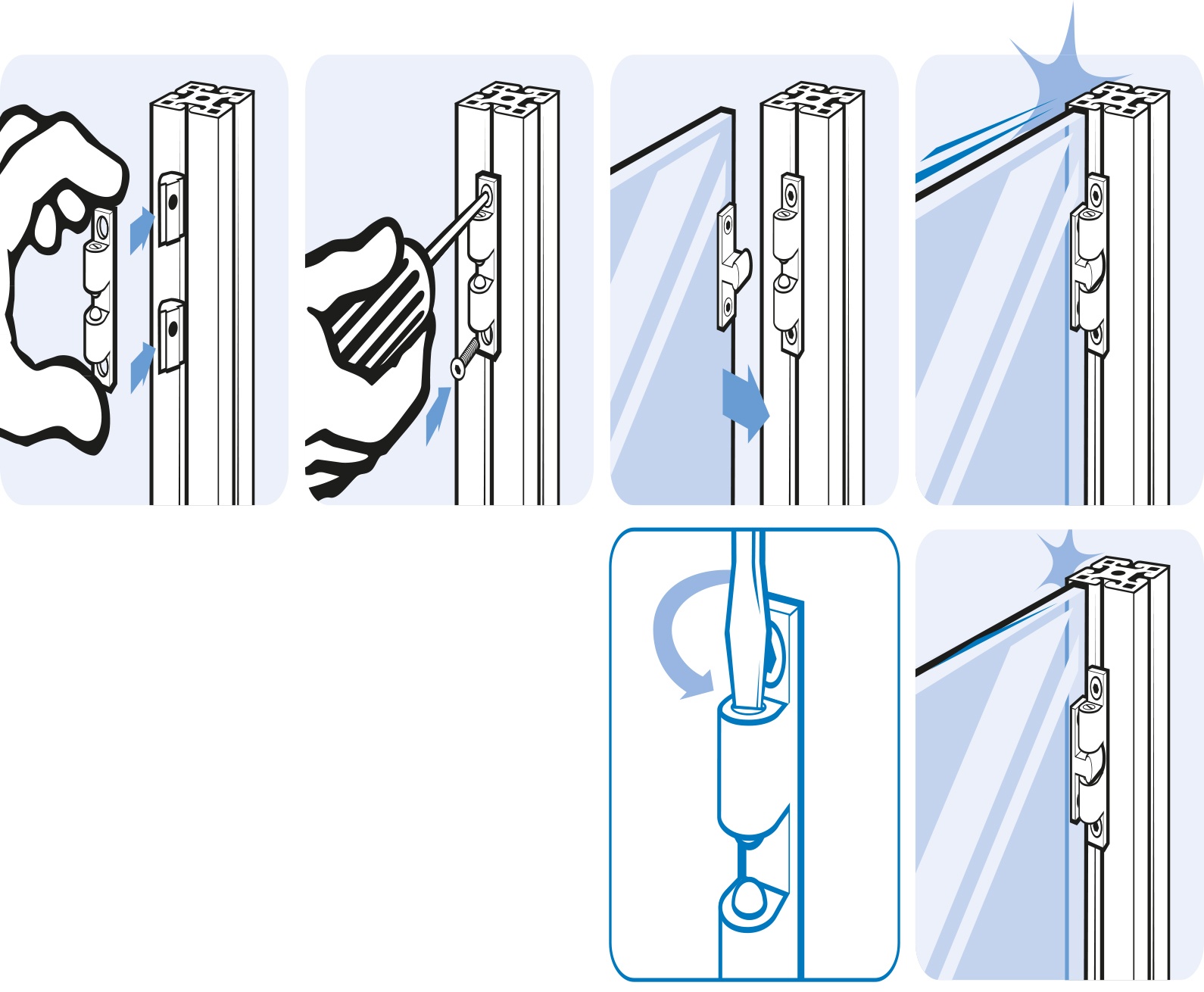

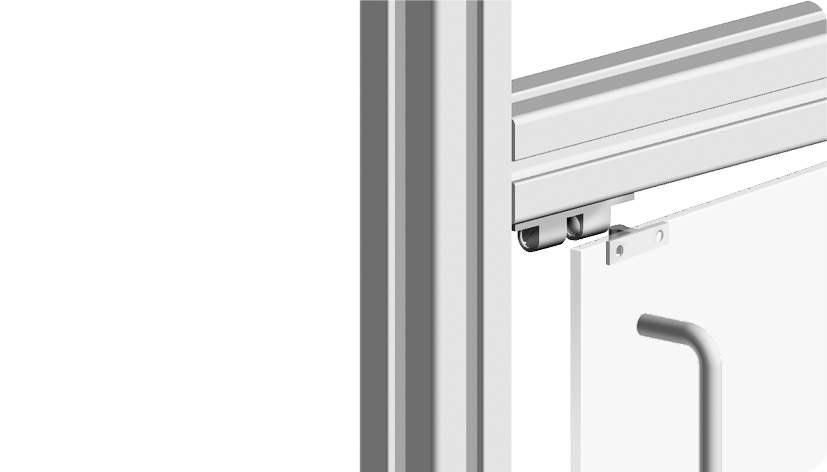

Quick catch for doors, adjustable clamping force, 2 possible positions (sideways / from the front)
Material:
Body: Brass
Threaded pin: Steel
Spring: Stainless steel
Ball: Stainless steel

Superficie:
Cromado chapado

Color:
Cromo

PFA_Fastening:
Por delante, con tornillos avellanados

Países de Entrega:
En todo el mundo
Cantidad por paquete: 10 piezas
Model: Latón
Peso (g): 23.60
Numero de ERP: 100385

Variantes

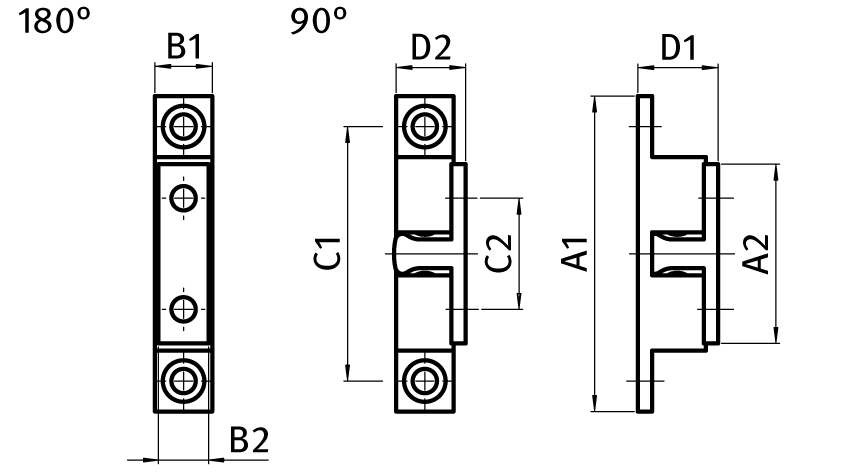

Número de producto D1 (mm) D2 (mm) B1 (mm) B2 (mm) A1 (mm) A2 (mm) Tornillo C1 (mm) C2 (mm) CAD
11.8 10.0 7.9 7.0 44.0 25.0 M3 35.0 15.0
13.0 10.8 8.8 7.9 49.0 29.5 M3 40.0 20.0
15.9 13.5 11.0 9.0 60.0 36.0 M4 50.0 24.0
18.5 16.0 13.0 12.0 68.4 40.0 M4 58.0 30.0

Clasificación

ECLASS 6.0
23250190
ECLASS 7.0
23250190
ECLASS 8.0
23250190
ECLASS 9.0
23250190
ECLASS 10.0
23250190
ECLASS 11.0
23250190
ECLASS 12.0
23250190
ECLASS 13.0
23250190
Zolltarifnummer
74198090980
Número de Arancel Aduanero de Exportación
74198090

Certificados

Tags

Profile Type Profile Type B, Profile Type I
Application Area Machinery & Plant Engineering
