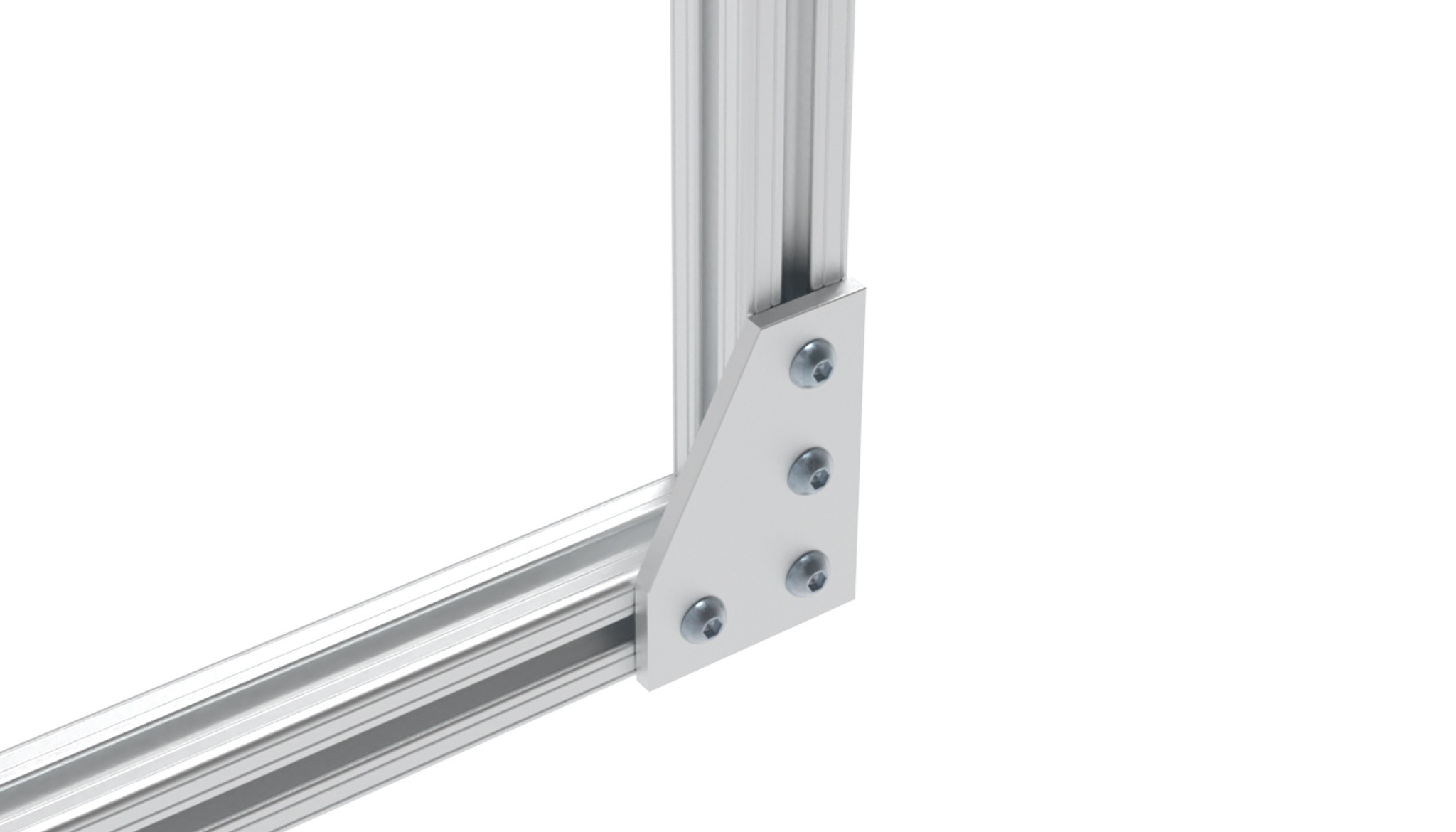

ECO Connection Plate AL L 4 Hole, 1 Slot Version

Información sobre el producto "ECO Connection Plate AL L 4 Hole, 1 Slot Version"

Color:
Negro

Países de Entrega:
Norteamérica

Description:
To connect two aluminum profiles

Material:
Aluminio

Superficie:
Polvo cubierto / anodizado

Tip:
Compatible ECO T-nut see 096E20M5S05 et sq.

Zolltarifnummer:
76169990990

Cantidad por Paquete:	10 piezas
Model:	Aluminio
Peso (g):	114.0

Variantes

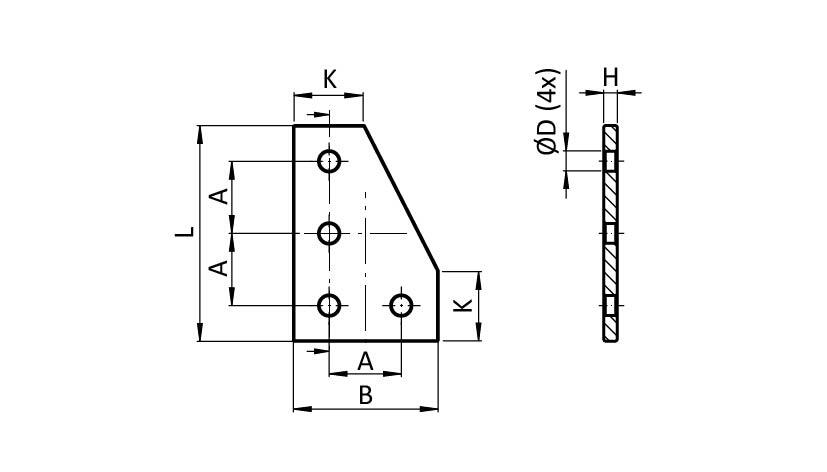

ID de producto	Fig.	Color	Superficie	ØD (mm)	A (mm)	K (mm)	H (mm)	B (mm)	Version	L (mm)
093EVL5176	②		Anodizado	7.0 (0.27")	25.4 (1")	25.0 (0.98")	4.8 (0.19")	50.8 (2")	50.8 / 76.2 - 2" / 3"	76.2 (3")
093EVL5176S	①	Negro	Polvo cubierto	7.0 (0.27")	25.4 (1")	25.0 (0.98")	4.8 (0.19")	50.8 (2")	50.8 / 76.2 - 2" / 3"	76.2 (3")
093EVL76114	②		Anodizado	9.0 (0.35")	38.1 (1.5")	38.0 (1.49")	6.35 (0.25")	76.2 (3")	76.2 / 114.3 - 3" / 4.5"	114.3 (4.5")
093EVL76114S	①	Negro	Polvo cubierto	9.0 (0.35")	38.1 (1.5")	38.0 (1.49")	6.35 (0.25")	76.2 (3")	76.2 / 114.3 - 3" / 4.5"	114.3 (4.5")
