End Cap for Parking Rail Flat - High (Set)

Información sobre el producto "End Cap for Parking Rail Flat - High (Set)"

Color:
End caps: Black
Position markings: Yellow ≈ RAL 1003

Países de Entrega:
En todo el mundo

Description:
One-piece end caps; self-adhesive;

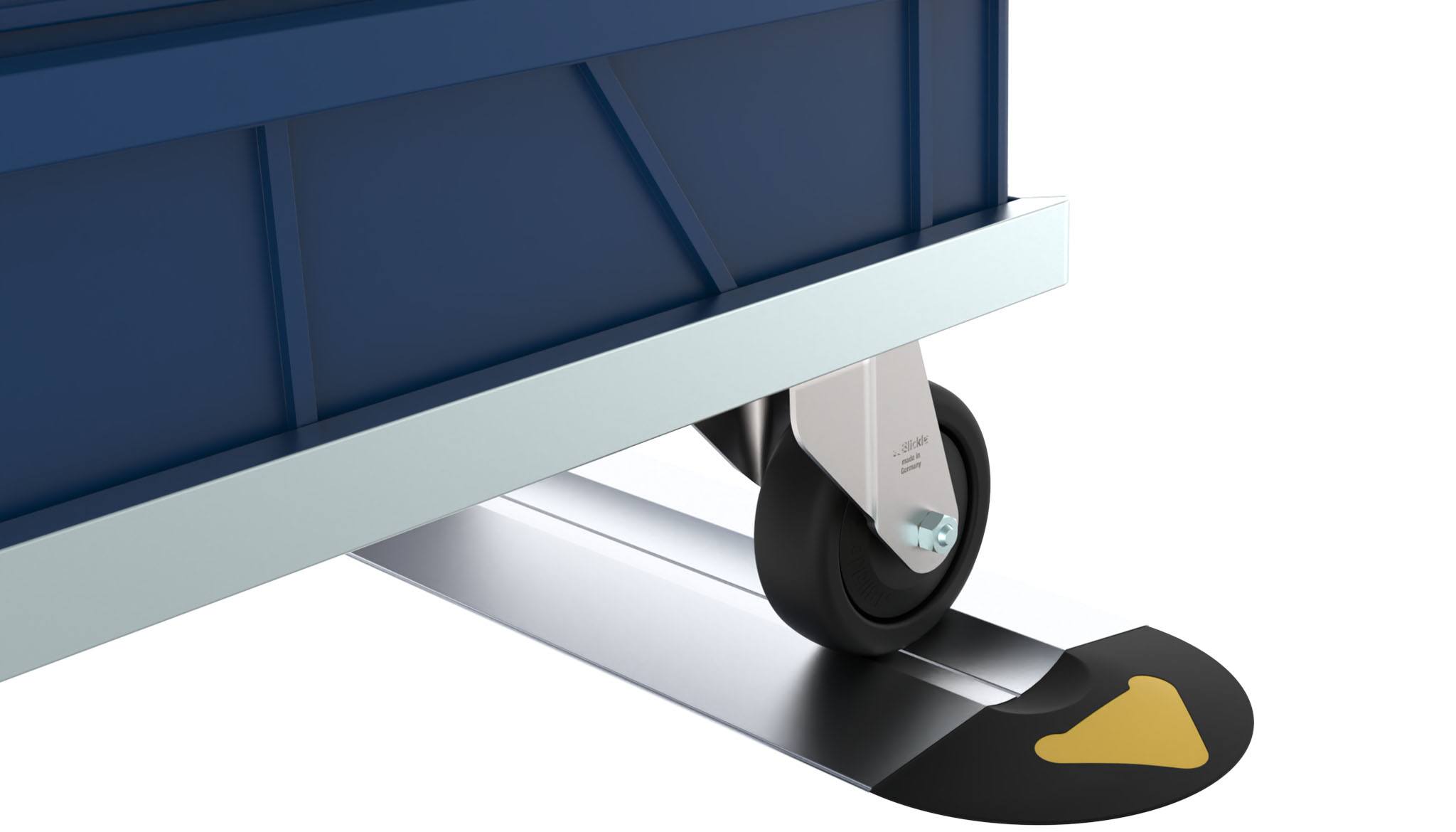

Yellow position markings with signal effect to indicate the position of the wheels from floor dollys or material trolleys in the parking rail

Material:
End caps: Plastic PA, glass ball reinforced
Position markings: Plastic PET

Set:
1 end cap left,
1 end cap right,
2 position markings

Tip:
Compatible Parking Rail flat / high (set) for medium to heavy weights see 02081ALH.0400,
Compatible Position Marking as replacement see 02084S.15

Zolltarifnummer:
39269097900
(ECLASS 6.0): 21070390
(ECLASS 7.0): 21070390
(ECLASS 8.0): 21070390
(ECLASS 9.0): 21070390
(ECLASS 10.0): 21070390
(ECLASS 11.0): 21070491
(ECLASS 12.0): 21070491
(ECLASS 13.0): 21070491
Cantidad por Paquete: 1 juego

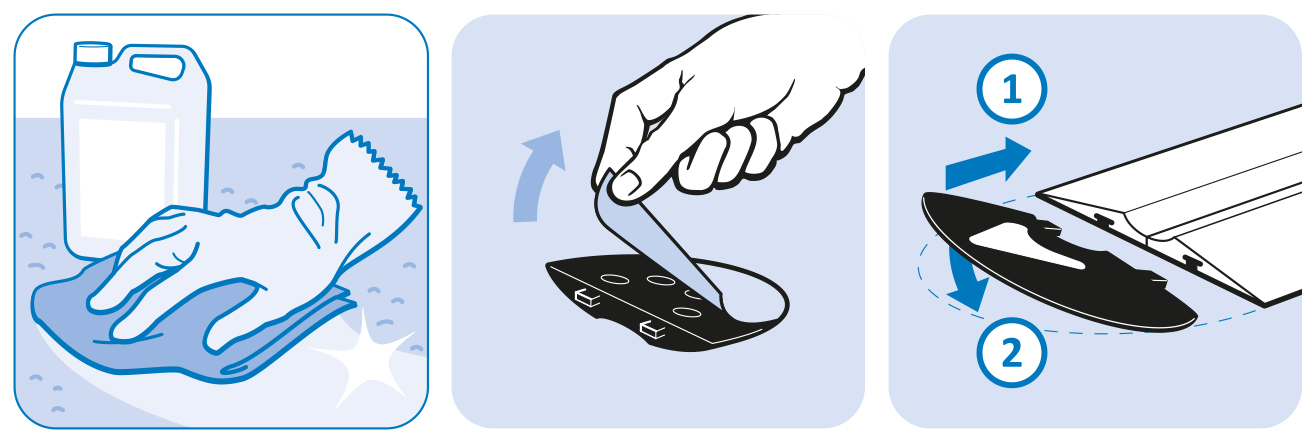

Fastening: Self-adhesive surface on the backside
Model: Standard version, for wheel diameter ≤ 100 mm
Peso (g): 80.0

Variantes

ID de producto Para el diámetreo de la rueda
02084LHS01 ≤ 100 mm
