End Cap for Parking Rail High - High (Set)
0,00 €
One-piece end caps; self-adhesive, screwable with optional screw-on set;

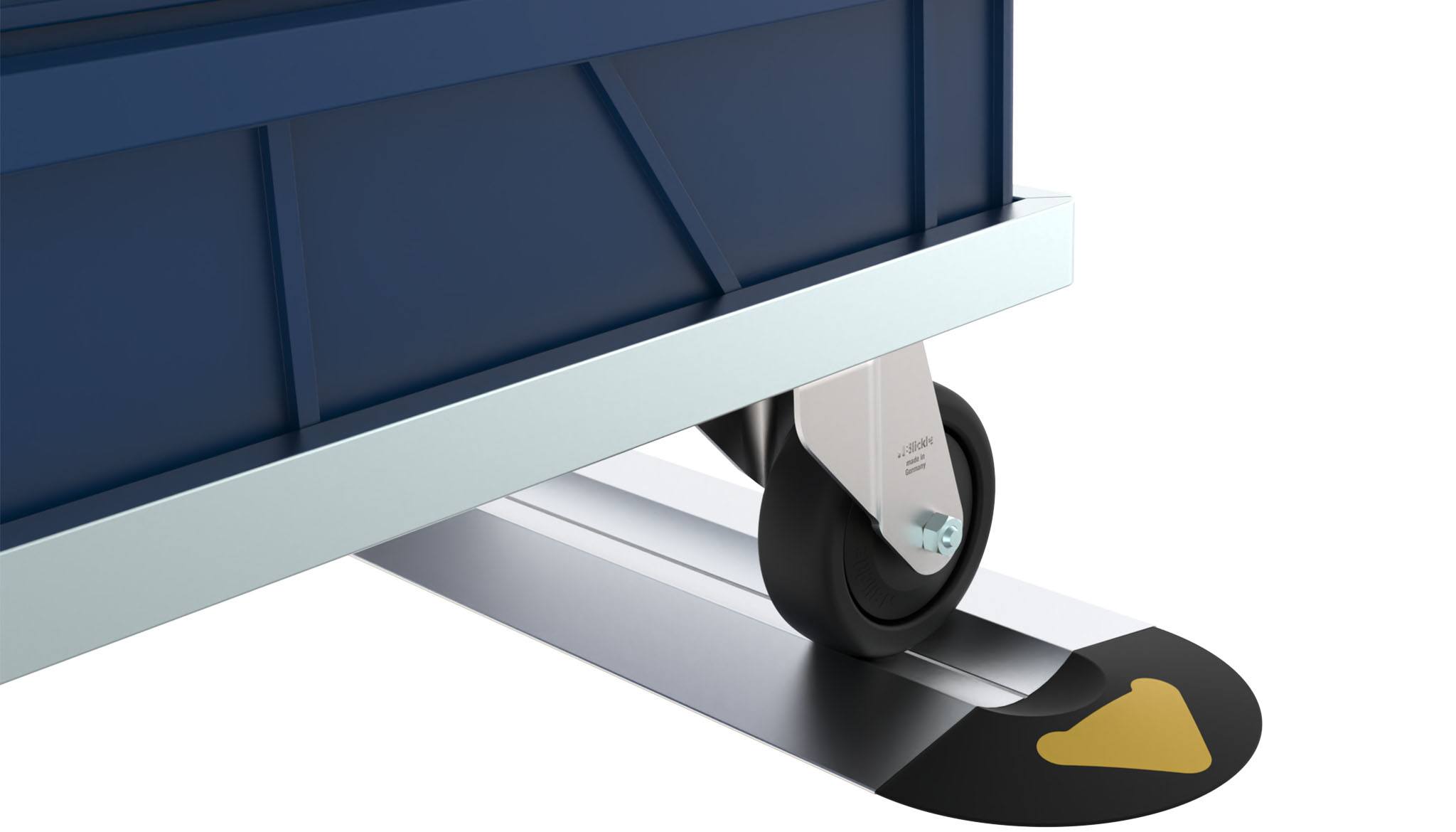

Yellow position markings with signal effect to indicate the position of the wheels from floor dollys or material trolleys in the parking rail
End caps: Plastic PA, glass ball reinforced
Position markings: Plastic PET
Color:
End caps: Black
Position markings: Yellow ≈ RAL 1003
Fastening:

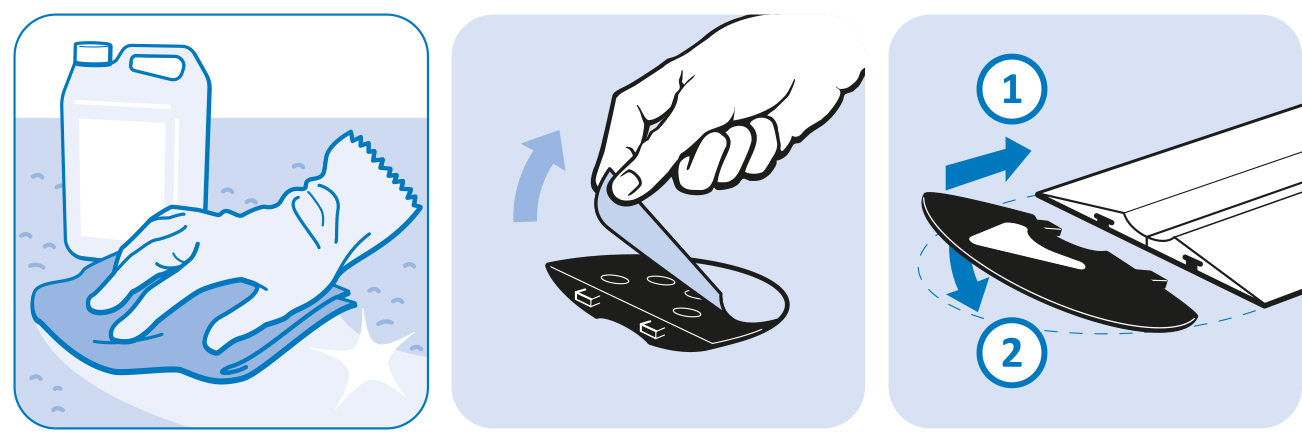

Self-adhesive surface on the backside
Set:
2 end caps
2 position markings
Tip:
Compatible Parking Rail high / high (set) for light to medium weights see 02081AHH.0400,
Compatible Position Marking as replacement see 02084S.15,
Compatible Screw-on set see 02084R01
Países de Entrega:
En todo el mundo
| Cantidad por paquete: | 1 pieza |
|---|---|
| Model: | Standard version, for wheel diameter ≤ 100 mm |
| Peso (g): | 70.0 |
| Numero de ERP: | 148517 |
Retratos de productos
Clasificación
- ECLASS 6.0
- 21070390
- ECLASS 7.0
- 21070390
- ECLASS 8.0
- 21070390
- ECLASS 9.0
- 21070390
- ECLASS 10.0
- 21070390
- ECLASS 11.0
- 21070491
- ECLASS 12.0
- 21070491
- ECLASS 13.0
- 21070491
- Zolltarifnummer
- 39269097900
- Número de Arancel Aduanero de Exportación
- 39269097
Certificados
Accesorios adecuados
Description:For precise positioning of dollys or material trolleys, suitable for different wheel diameters, no brakes needed; self-adhesive, for tool-free assembly, no screwing required, immediately ready for useMaterial:AluminioSuperficie:LisoFastening:Self-adhesive surface on the backsideTip:When ordering, please note: Replace "1200" in the part no. with the required length in mm, e.g. "0350" for 350 mm or "2000" for 2000 mmTip 2:Compatible End Cap for Wheel Diameter ≤ 100 mm see 02084HHS01 Compatible End Cap XL for Wheel Diameter > 100 mm see 02084HHXLS01Países de Entrega:En todo el mundo
Description:To cover the screw holes of end caps for parking rail; Yellow position markings with signal effect to indicate the position of the wheels from floor dollys or material trolleys in the parking rail; Included in the end cap sets, here separately available as replacementMaterial:Plástico PETColor:Amarillo ≈ RAL 1003Fastening:Self-adhesive surface on the backsidePaíses de Entrega:En todo el mundo
Description:To screw on end caps for parking rail high / high for heavy-duty use With position marking for covering the screw-on points afterwardsMaterial:Screw: Steel Plastic anchor: Plastic Position marking: Plastic PETSurface:Screw: Zinc platedColor:Plastic anchor: Yellow Position marking: Yellow ≈ RAL 1003Set:4 board screws, 4 plastic anchors, 2 position markingsPaíses de Entrega:En todo el mundo
