Friction Joint B80L for System Arm (Set)

Información sobre el producto "Friction Joint B80L for System Arm (Set)"

Color:
Housing: Alu color
Cover ring: Gray ≈ RAL 7042
Cover caps: Gray ≈ RAL 7042
Centering plates: Alu color

Países de Entrega:
En todo el mundo

Description:

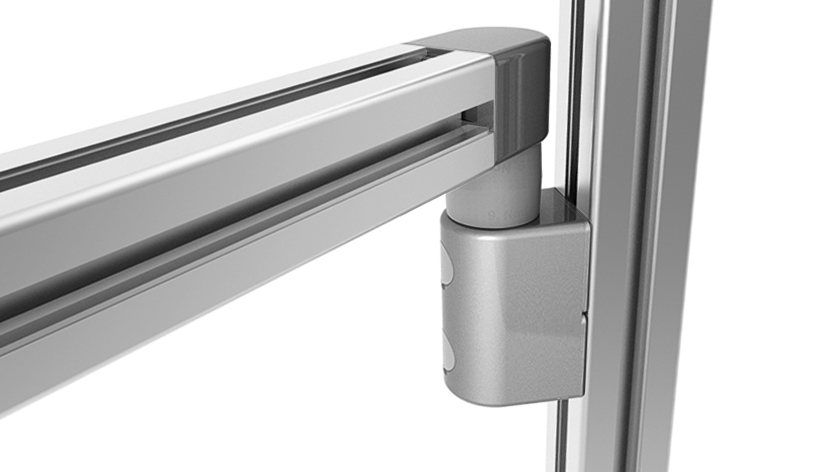

Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°;
Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)

Material:
Housing: Aluminum die-cast
Cover ring: Plastic
Inserts: Steel
Friction shaft: Steel
Cover caps: Plastic
Screws: Steel
Washers: Steel
Centering plates: Aluminum die-cast
T-slot nuts: Steel

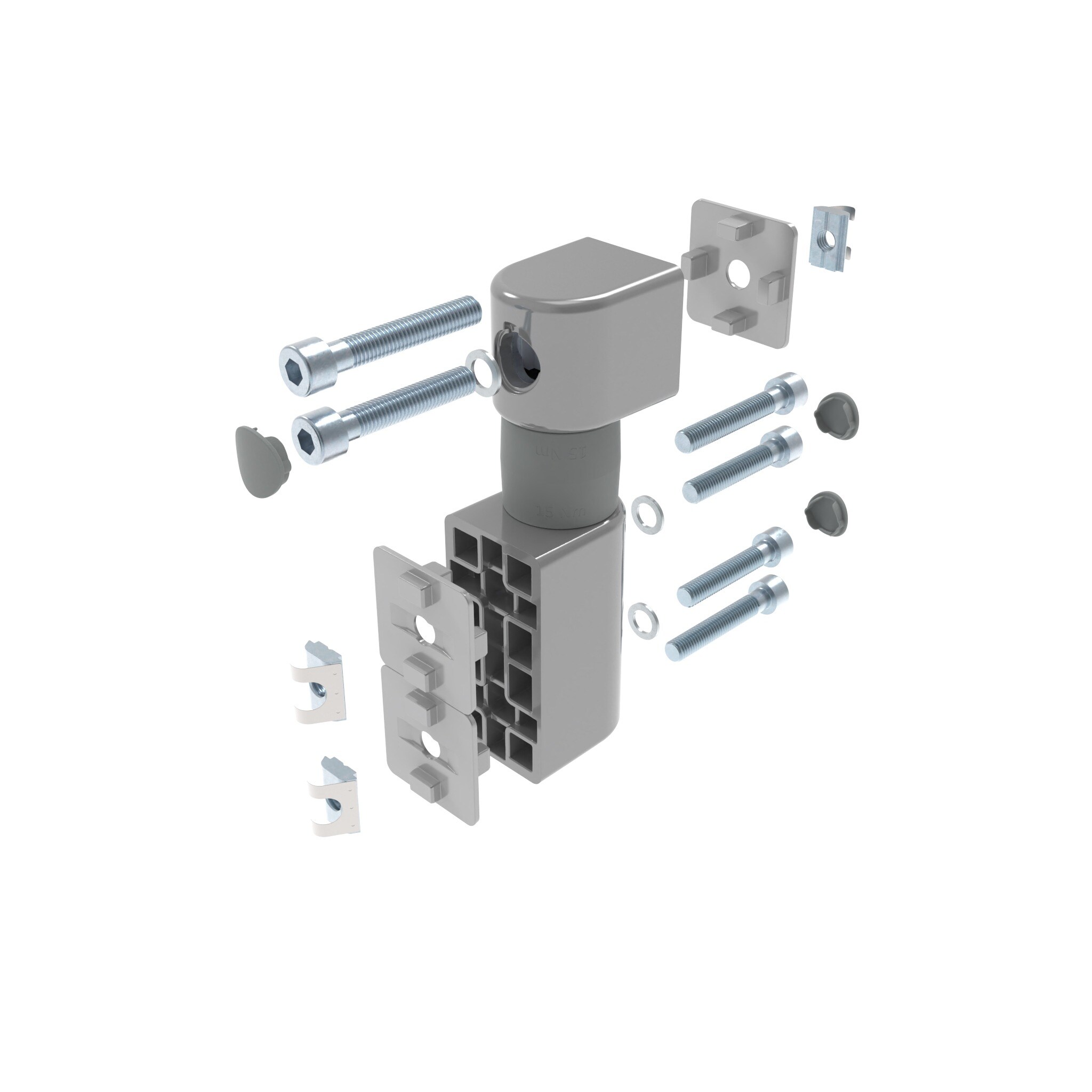

Set:
1 friction joint
3 cover caps
3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut)
3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole)
3 washers 8-FSt
3 centering plates
3 T-slot nuts - slot 10- M8

Surface:
Housing: Powder coated
Centering plates: Powder coated
Screws: Zinc plated
Washers: Zinc plated
T-slot nuts: Zinc plated

Tip:
Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801

Zolltarifnummer:
76169990990
(ECLASS 6.0): 23360301
(ECLASS 7.0): 23360301
(ECLASS 8.0): 23360301
(ECLASS 9.0): 23360301
(ECLASS 10.0): 23360301
(ECLASS 11.0): 23360301
(ECLASS 12.0): 23360301
(ECLASS 13.0): 23360301
Cantidad por Paquete: 1 juego
Model: 40 mm modular dimension
Peso (g): 1068.0

Variantes

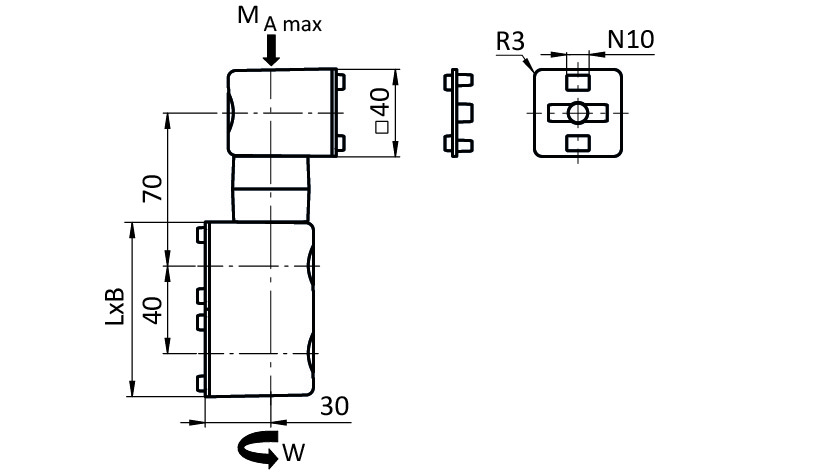

ID de producto MAmax (Nm) R (mm) Profile Ranura N (mm) B (mm) L x B (mm) W (Nm)
061FGB80LN10 70.0 3.0 B 10 40 80 x 40 12.0
061FGL80LN10 70.0 3.0 B 10 40 80 x 40 15.0
061FGM80LN10 70.0 3.0 B 10 40 80 x 40 9.0
061FGN80LN10 70.0 3.0 B 10 40 80 x 40 3.0
061FGS80LN10 70.0 3.0 B 10 40 80 x 40 6.0
061FGZ80LN10 70.0 3.0 B 10 40 80 x 40 0.5
