Glazing Strip for Insert Profile I AL

Descripción:

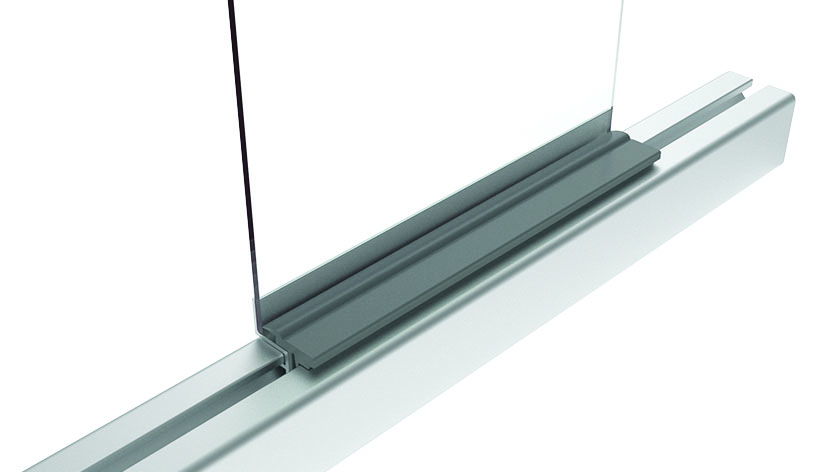

To insert panels with 2.0 to 8.0 mm thickness subsequently into assebled structures
Material:
Plástico PP + TPE

Color:
PA, gris

Consejo:
Observación: ¡Está realizando el pedido en metros!

Tip 2:
For a complete insert profile a suitable support strip I AL is required.

Países de Entrega:
En todo el mundo
Cantidad por paquete: 50 metros (25 piezas a 2 metros)
Model: Plastic PP + TPE, slot 8, subsequently insertable
Peso (g): 362.0
Numero de ERP: 147095

Variantes

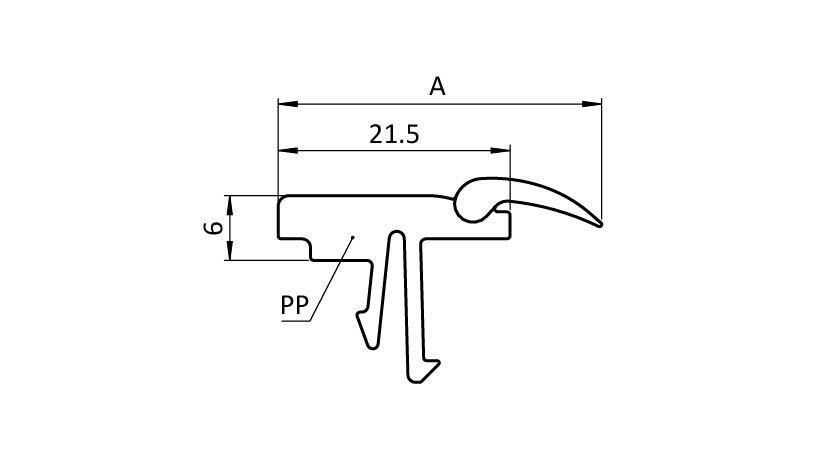

Número de producto Profile A (mm) Color Ranura N (mm) Para Panel CAD
I 30.0 Gris ≈ RAL 7042 8 2 - 4 mm
I 28.0 Gris ≈ RAL 7042 8 4 - 6 mm
I 26.0 Gris ≈ RAL 7042 8 6 - 8 mm

Clasificación

ECLASS 6.0
23369290
ECLASS 7.0
23369290
ECLASS 8.0
23369290
ECLASS 9.0
23369290
ECLASS 10.0
23369290
ECLASS 11.0
23360492
ECLASS 12.0
23360492
ECLASS 13.0
23360492
Zolltarifnummer
39169050900
Número de Arancel Aduanero de Exportación
39169050

Certificados

Tags

Profile Type Profile Type I
Slot Size Slot size 8
Profile Form T-slot Profiles
